Features:Name:IPEX to RP SMA Jumper Wire
Family:Coaxial, RF pigtail cable
Connector A:U.FL IPX
Connector B:RP-SMA Female (Inner Pin)
Cable Type:RG178 cable
Cable Length:25cm
Color:Gold Connector
Applications:Wifi router, Commercial-Grade Wireless, phone wireless, AP
Compatible with:WiFi USB Adapter; Wireless Network Router Hotspot; WiFi Signal Booster Repeater; WiFi Range Extender; Wireless Mini PCI Express PCIE Network Card; IP Security Camera; Yagi Antenna;
Compatible with:Wireless Video Surveillance, Security IP Camera, NVR Recorder;
Connector:Reverse Polarity SMA Female 50 Ohm Bulkhead Mount Connector; Connector:Mini PCI U.FL IPX Connector; Cable:RG178 Coaxial Cable
Specification:Part Number:IPEX -SMA female RG178 cable
Specification
Impendence
50 ohm
Connector 1
RP SMA Female straight
Connector 2
IPX/U.FL Connector
Cable type
RG178
Cable length
You Choose
Frequency range
DC/6GHz
Voltage withstand
1000V maximum
Jacket spark voltage
3000Vrms
Operating Temperature
45 °C-85 °C
Durability
≥500 cycles
Waterproof Rate
Waterproof Rate
Package included:3 x IPEX -SMA female RG178 cable

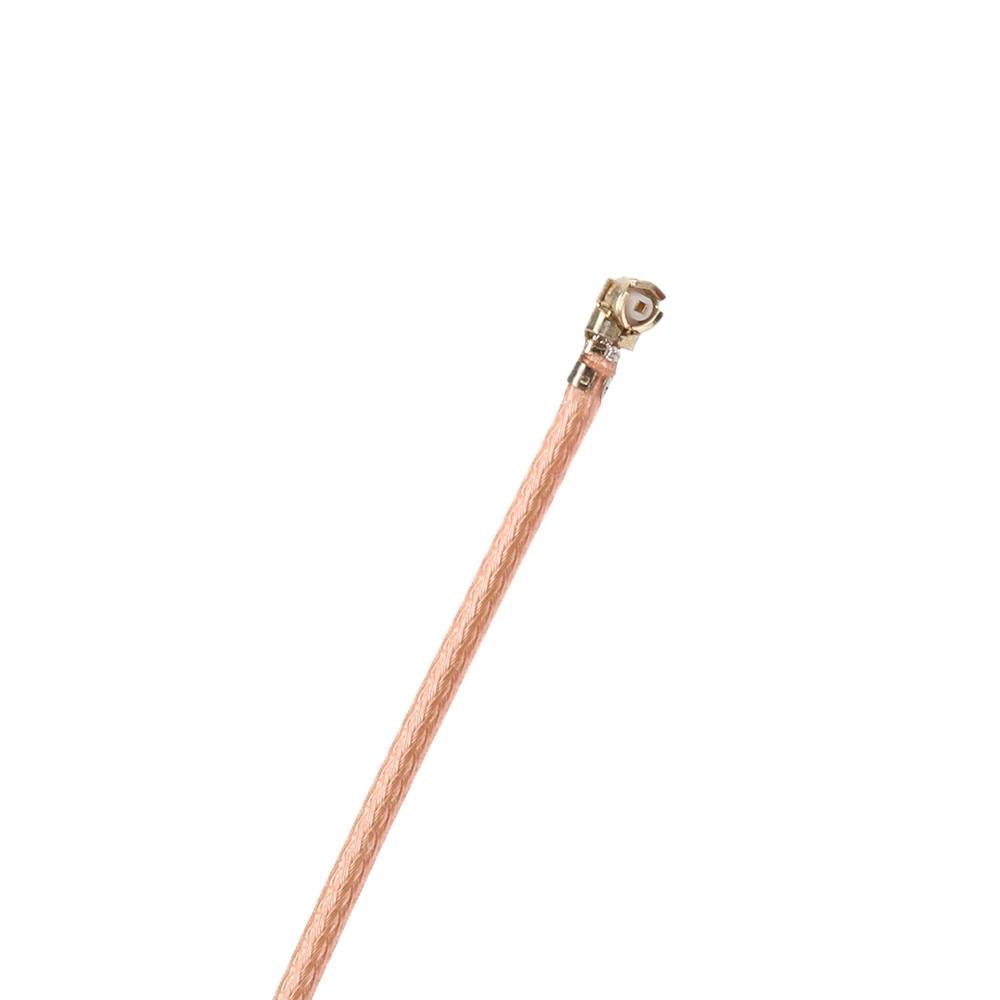

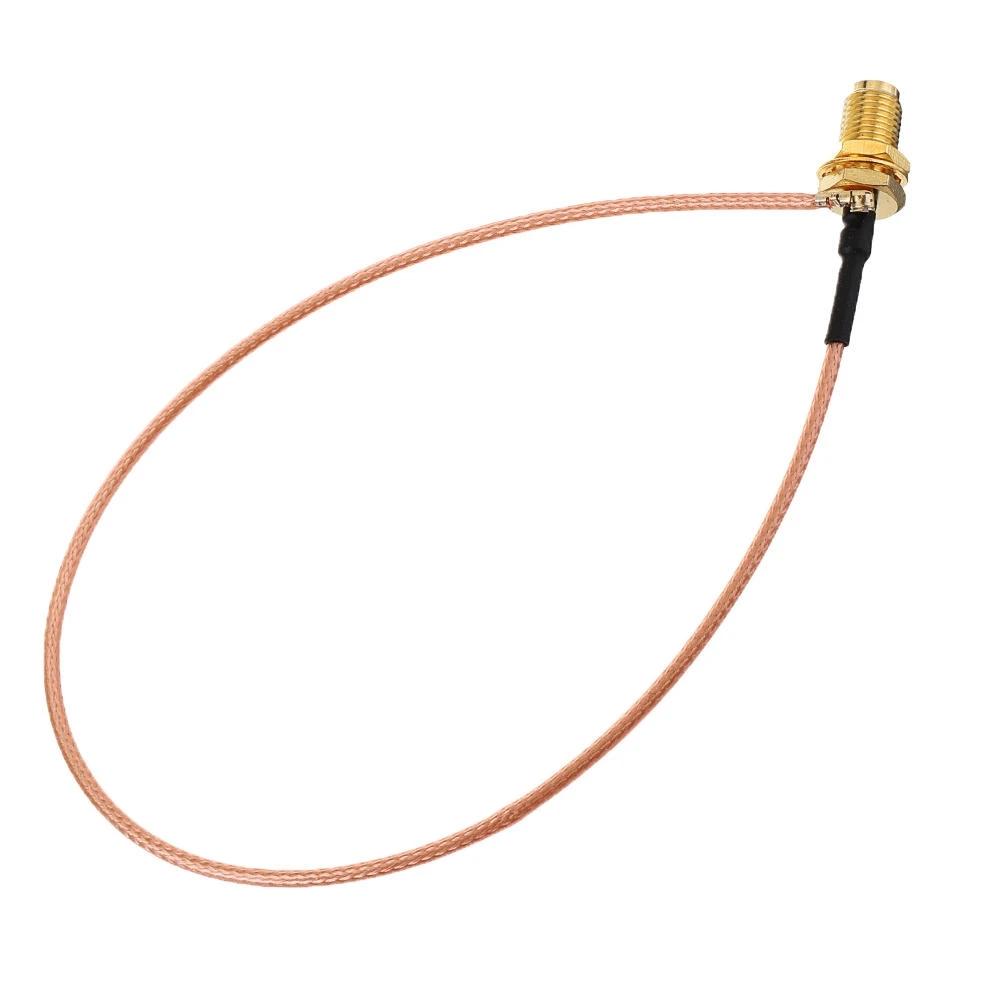

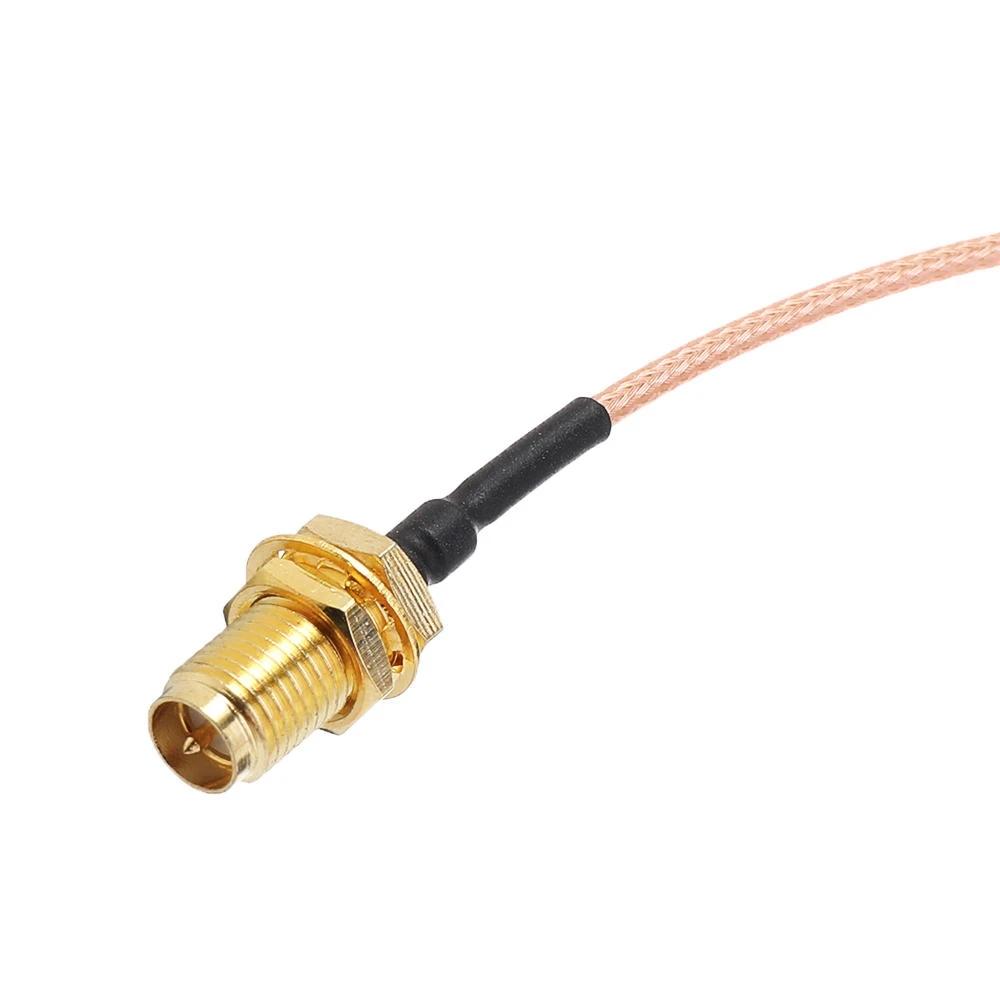

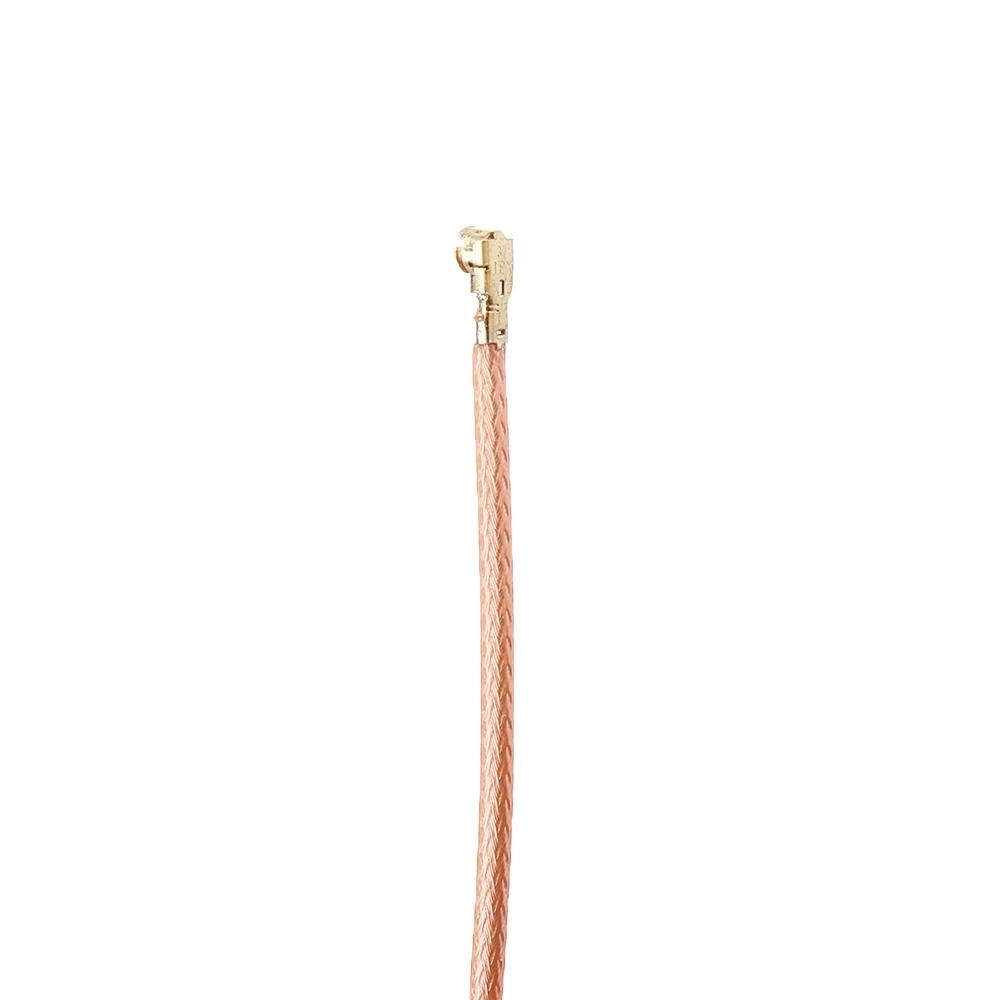

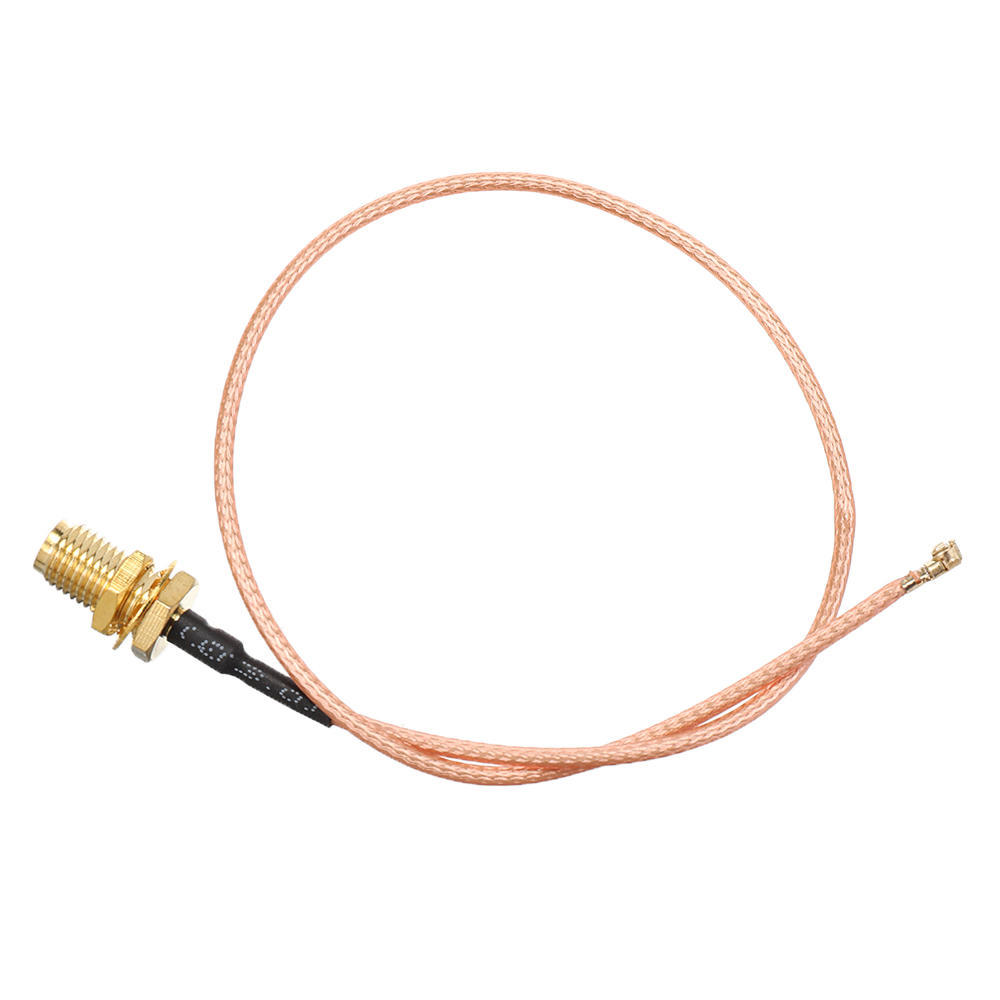

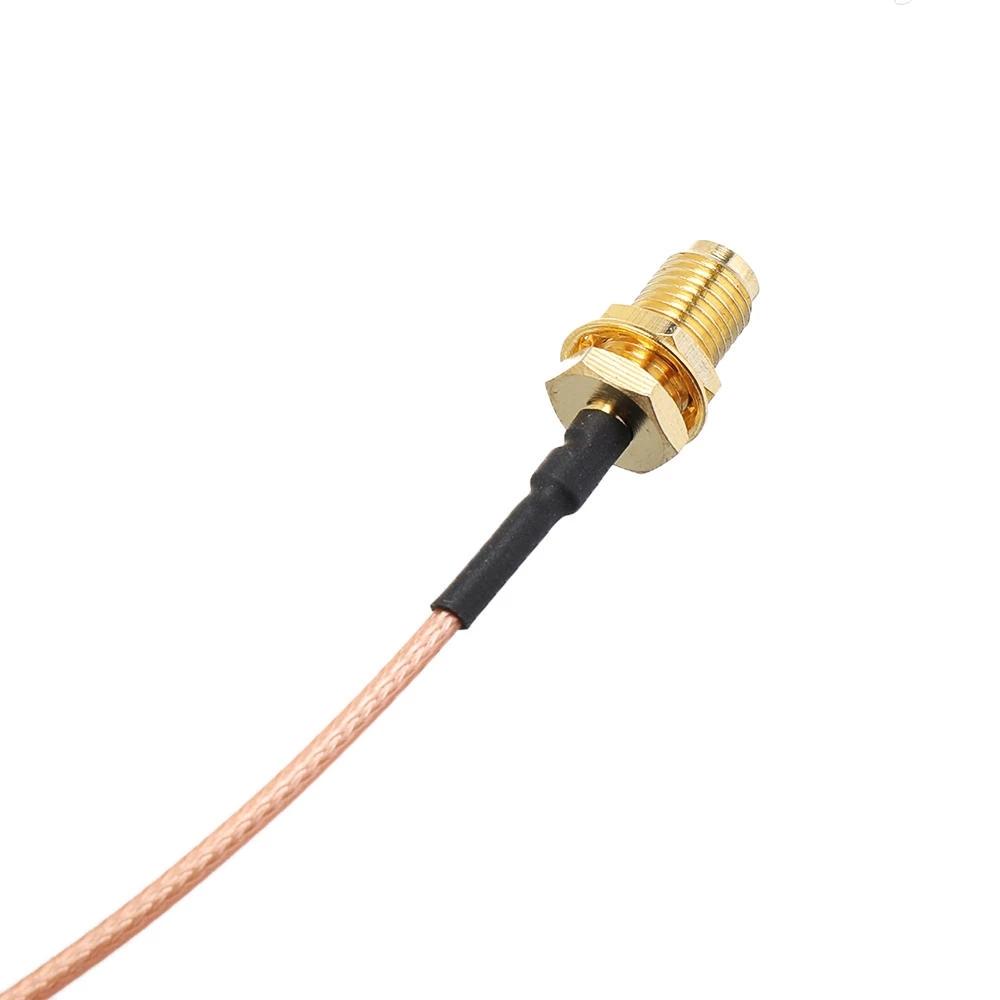

Details Pictures:
