Features:The meter is a handhold 3 1/2 digital multimeter for measuring DC and AC Voltage, DC and AC current, Resistance, Diode, Transistor, capacitance and continuity test with battery operated. The back light of display is optional.
Display:1999(3 1/2) digital LED display
Polarity indication:”-” displayed for negative polarity
Return zero:Auto
Over range indication:√
Low battery indication:√
Sampling rate:about 3 times per second
Specification:DC Voltage
Range
Resolution
Accuracy
200mV
100uV
2V
1mV
± (0.5%+3)
20V
10mV
200V
100mV
1000V
1V
±(1%+5)
AC Voltage
Range
Resolution
Accuracy
200mV
100uV
± (1.2%+3)
2V
1mV
±(0.8%+5)
20V
10mV
200V
100mV
700V
1V
±(1.0%+5)
DC Current
Range
Resolution
Accuracy
2mA
1uA
±(1.0%+3)
20mA
10uA
200mA
100uA
±(1.5%+5)
20A
10mA
±(2.5%+5)
AC Current
Range
Resolution
Accuracy
2mA
1uA
±(1.2% +5)
20mA
10uA
200mA
100uA
±(2.0%+5)
20A
10mA
±(3.0%+10)
Resistance
Range
Resolution
Accuracy
200Ω
0.1Ω
±(1.0%+10)
2KΩ
1Ω
±(0.8%+3)
20KΩ
10Ω
200KΩ
100Ω
2MΩ
1kΩ
20MΩ
10KΩ
±(1.2%+8)
200MΩ
100KΩ
±5.0%(-10)±10
Capacitance
Range
Resolution
Accuracy
20nF
10pF
±(4.0%+3)
200nF
100pF
2uF
1nF
20uF
10uF
±(5.0%+5)
200uF
100uF
Diode & Sound on/off Test
Range
Illustration
Test Conditions
Diode
Tested diode forwards voltage drop
Forward direct current:about 1mA
Direct reverse voltage:about 3V
Sound
When tested resistance approximately
Open-circuit Voltage:about 3V
Triode hFE Parameter Test
Range
Illustration
Test Conditions
hFE
Can test the hFE parameter(0-1000) of type NPN/PNP triode
Base current:about 10uA
Vce:about 2.8V
Frequency
Range
Revolution
Accuracy
2kHz
1kHz
±(2.0%
5)
20kHz
10kHz
±(1.5%
5)
General Information:Power:9V battery (NEDA 1604 or 6F22) (NOT Included)
Operating environment:0 to 40℃, humidity≤75% RH
Storage temperature:-10℃to 50℃, humidity≤80% RH
Maximum voltage between terminals and earth ground:1000VDC or 700 VAC
Fuse protection
F 200mA/250V
Size:18.5cm x 9cm x 4.8cm
Weight:Approx.306g

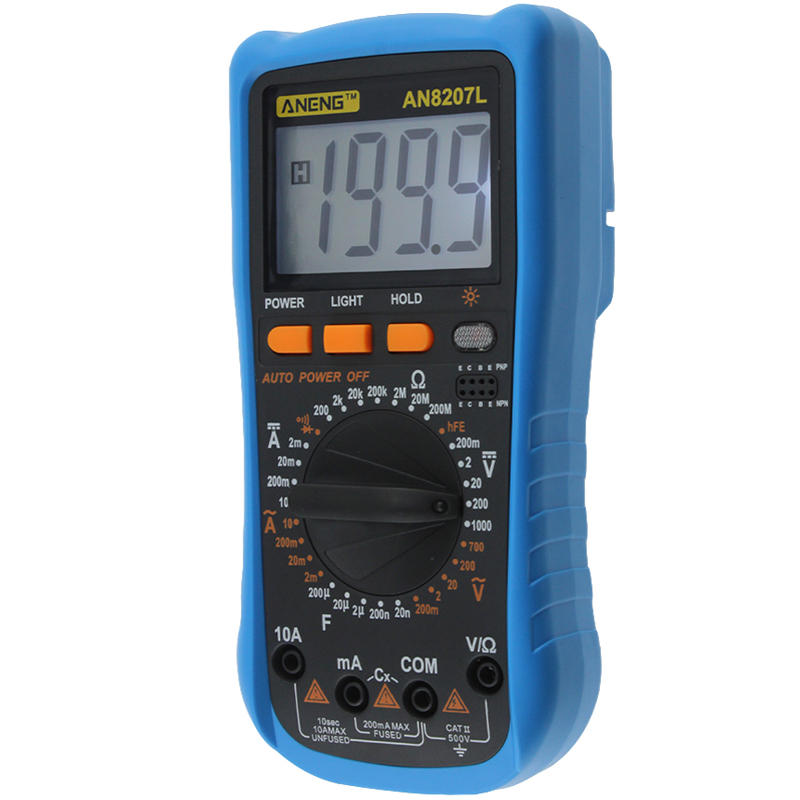

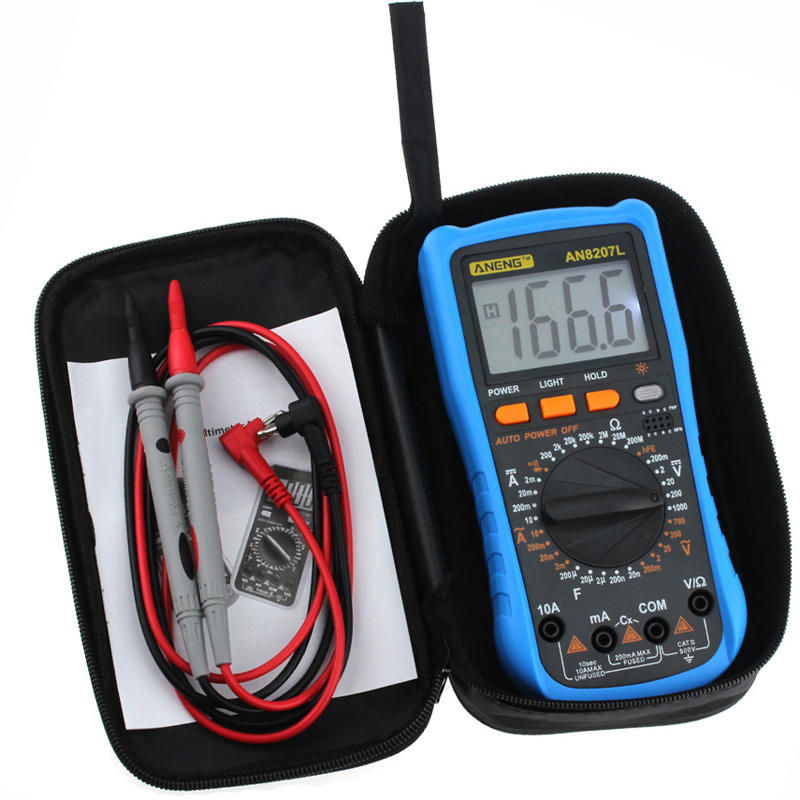

Package Included:1 x ANENG AN8207L Digital Multimeter

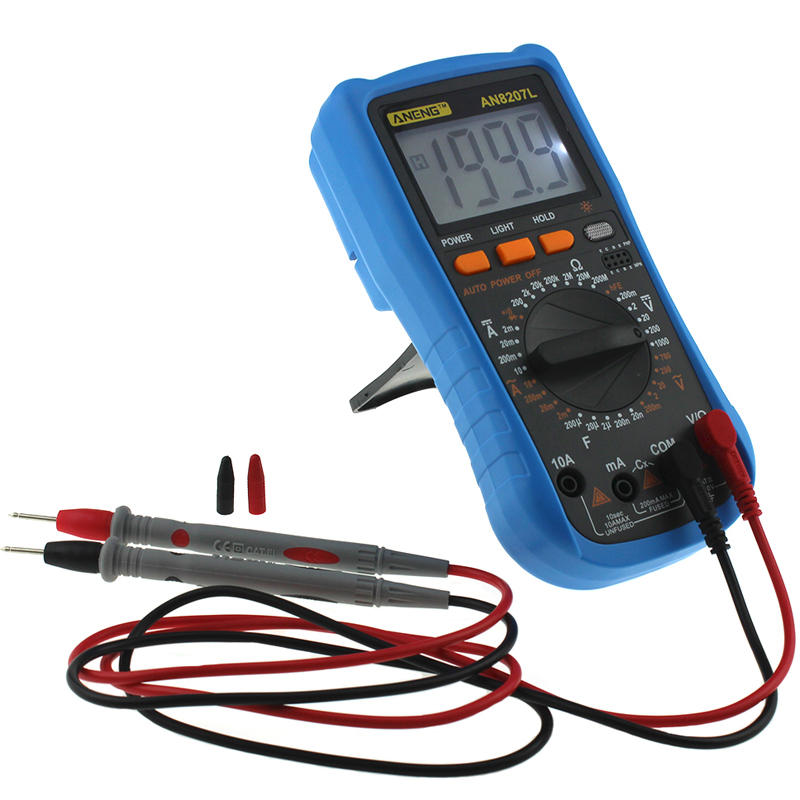

1 x Pair of Test Leads
1 x Operator’s Instruction Manual

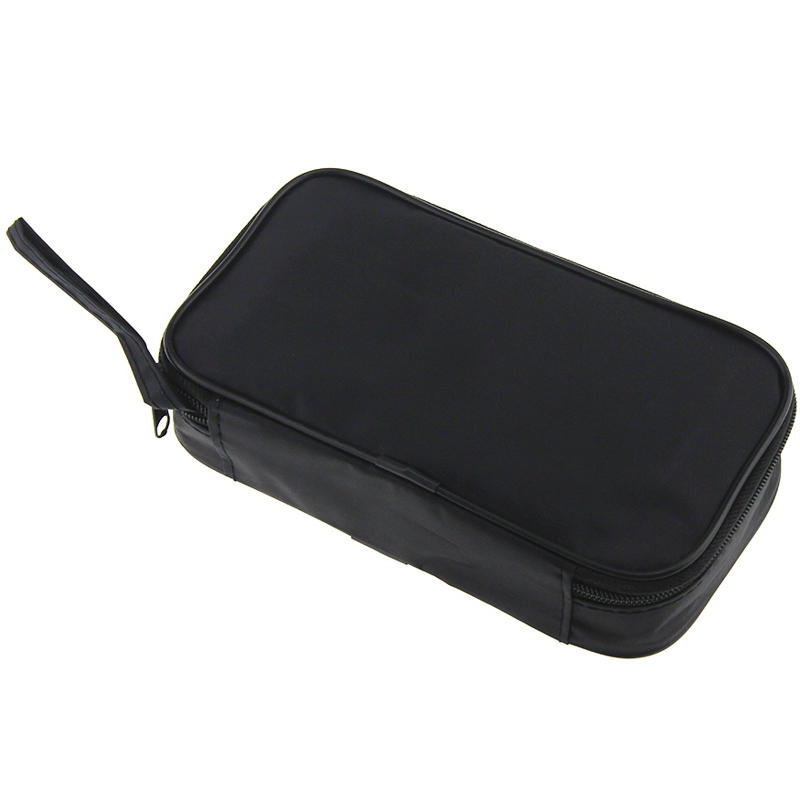

1 x Hold Portable bag

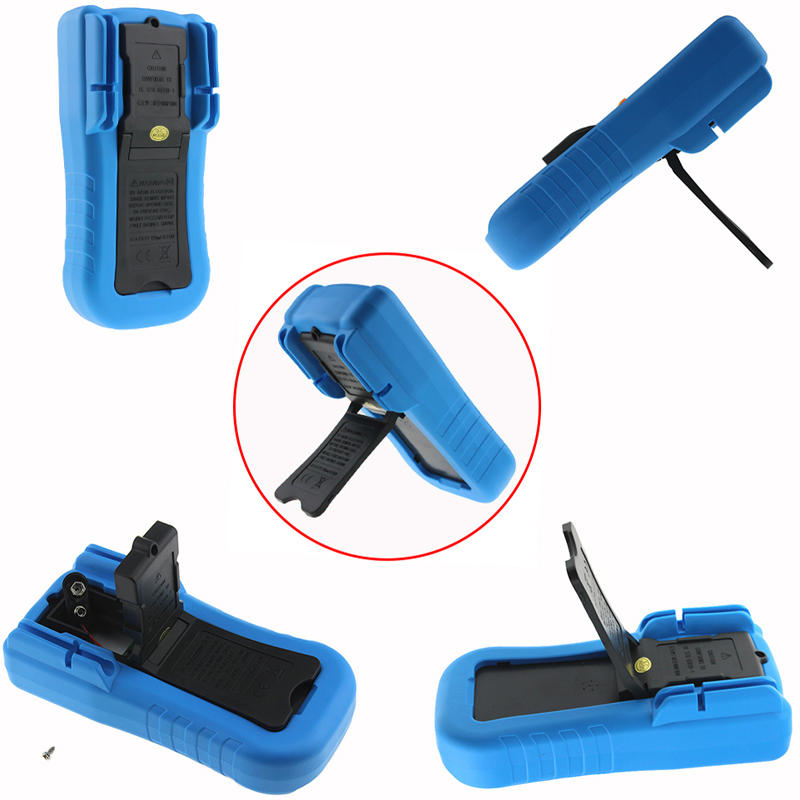

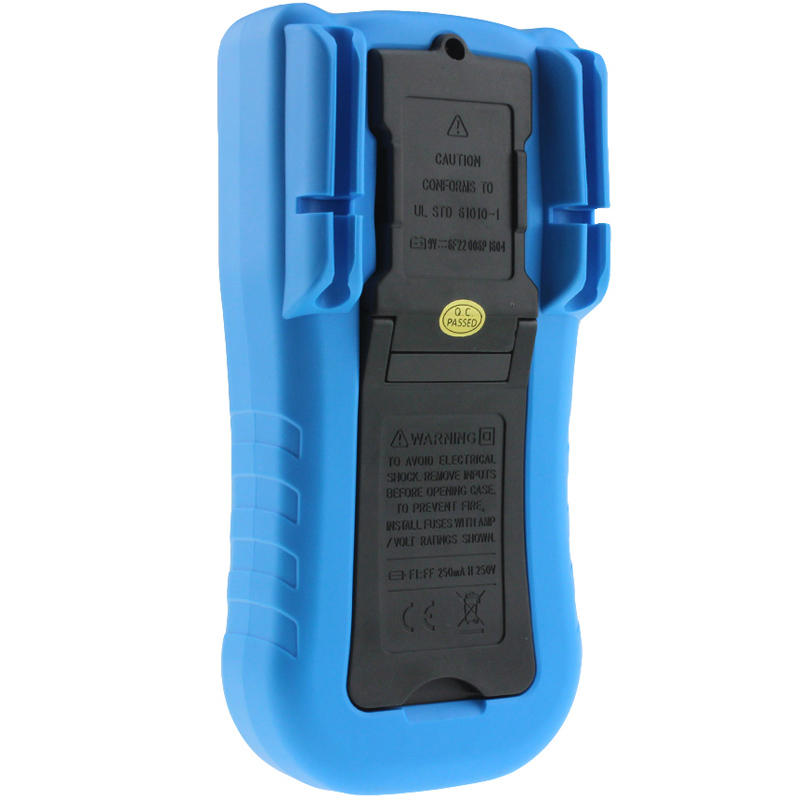

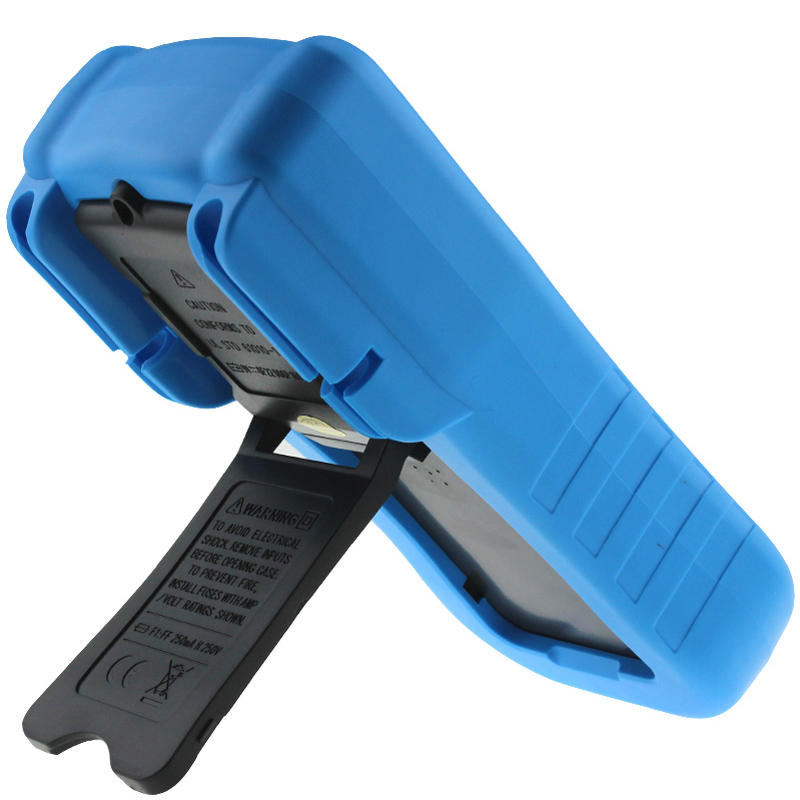

Detail Pictures:
