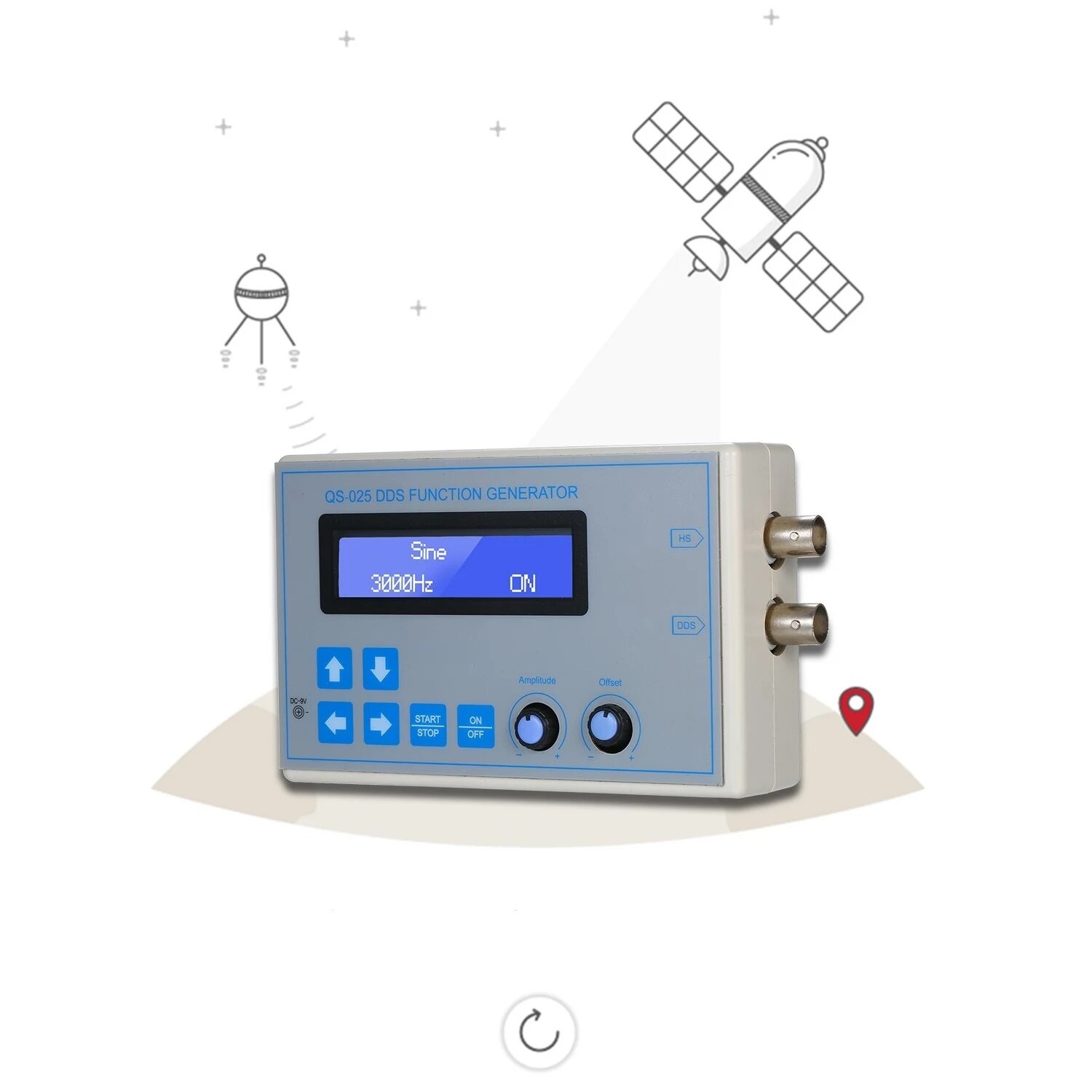

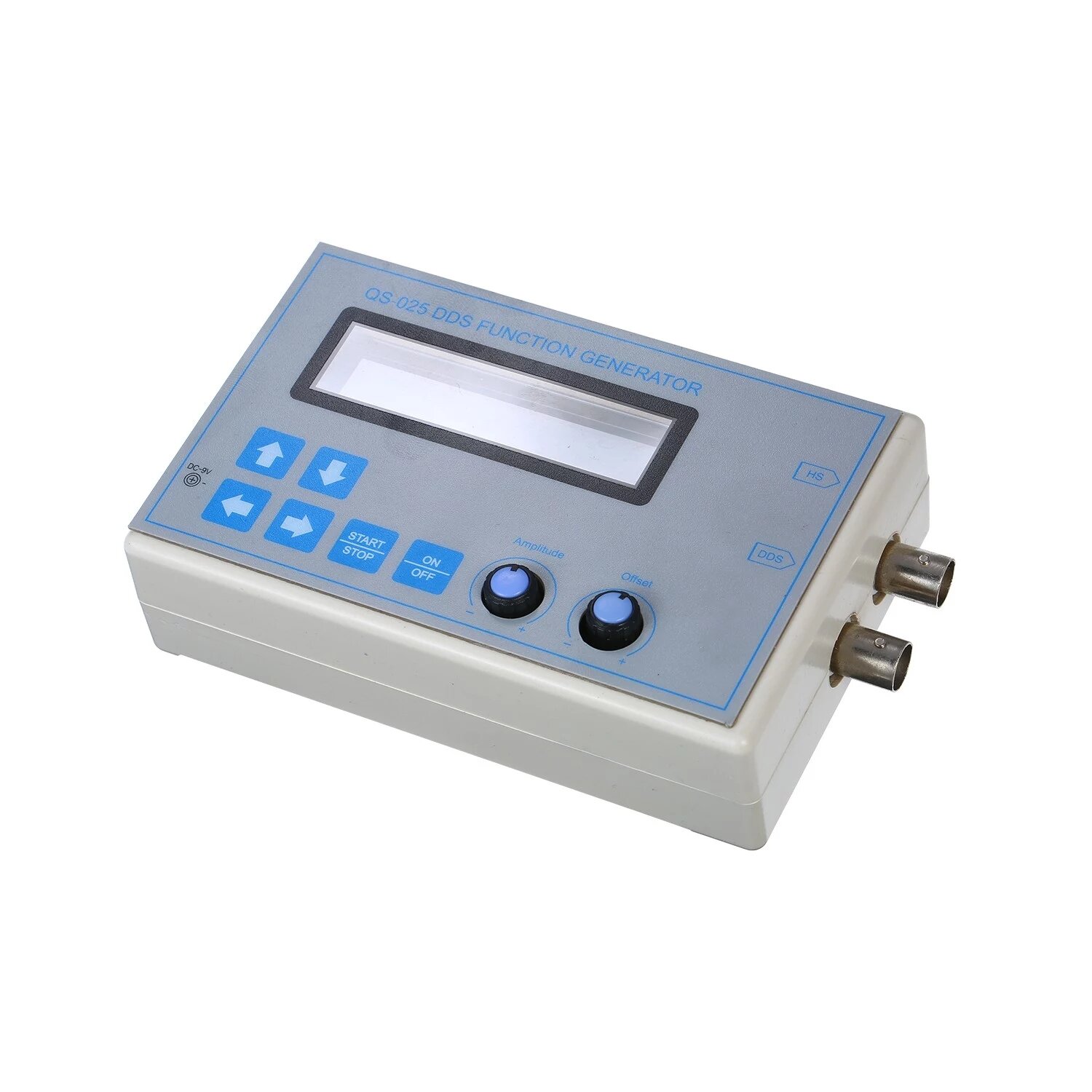

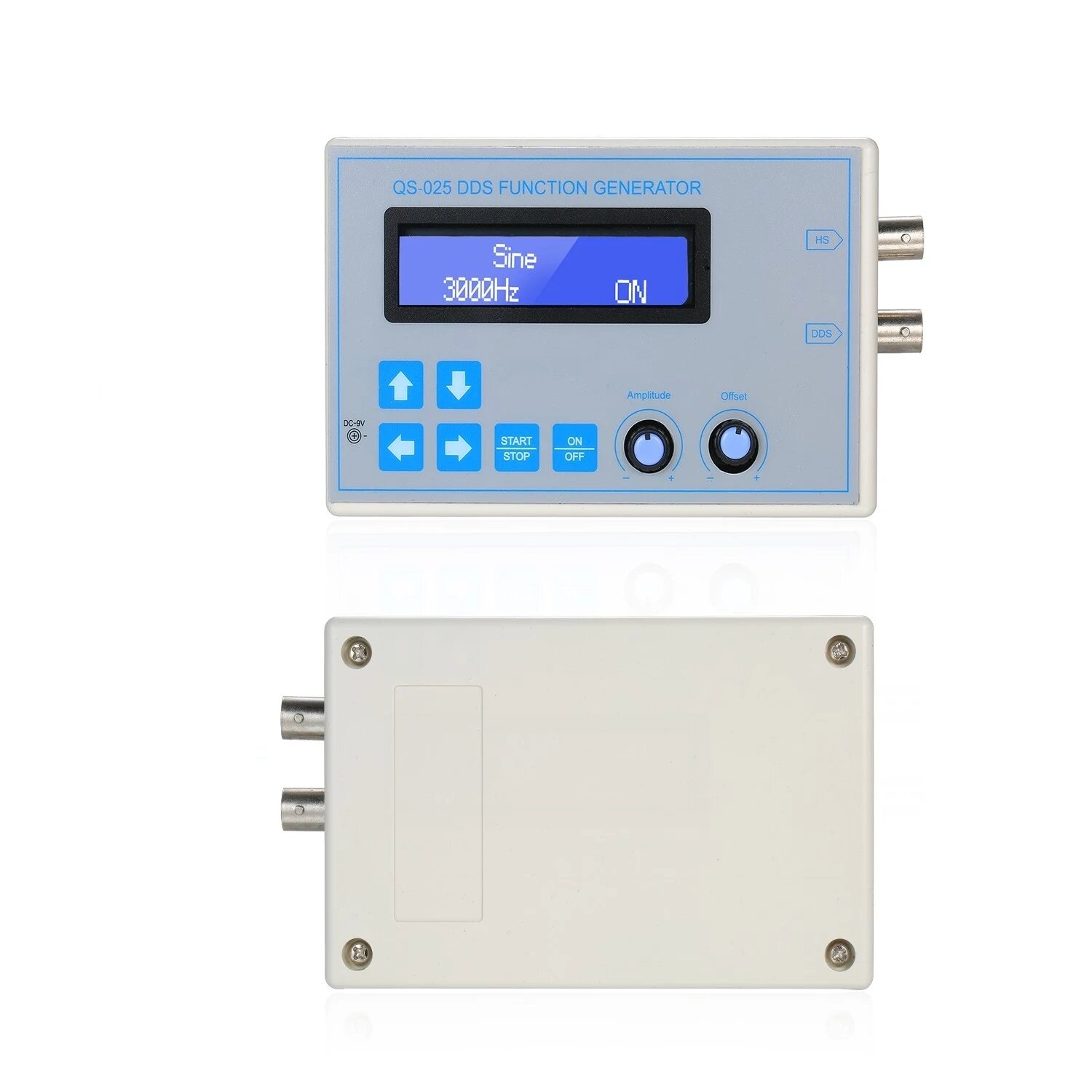

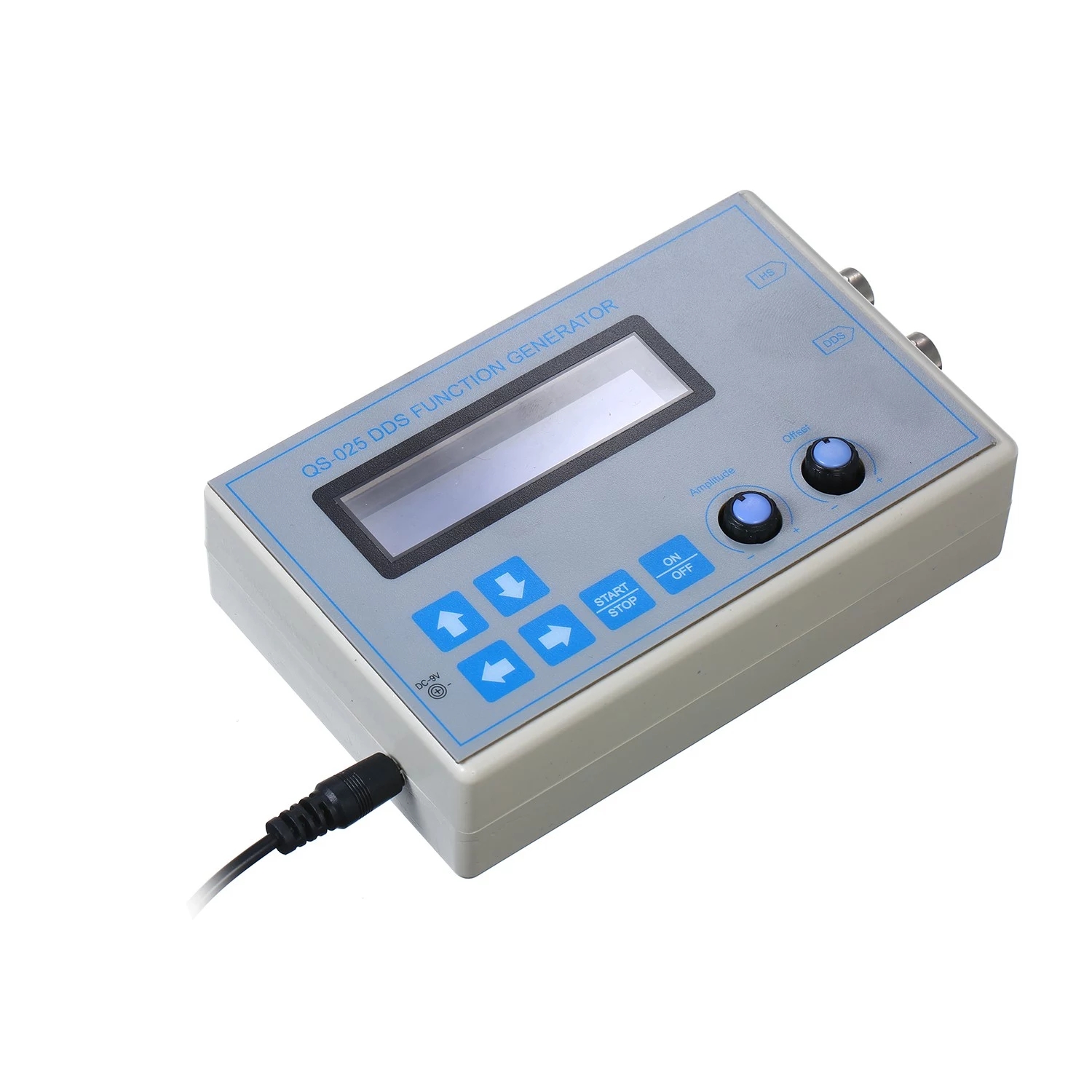

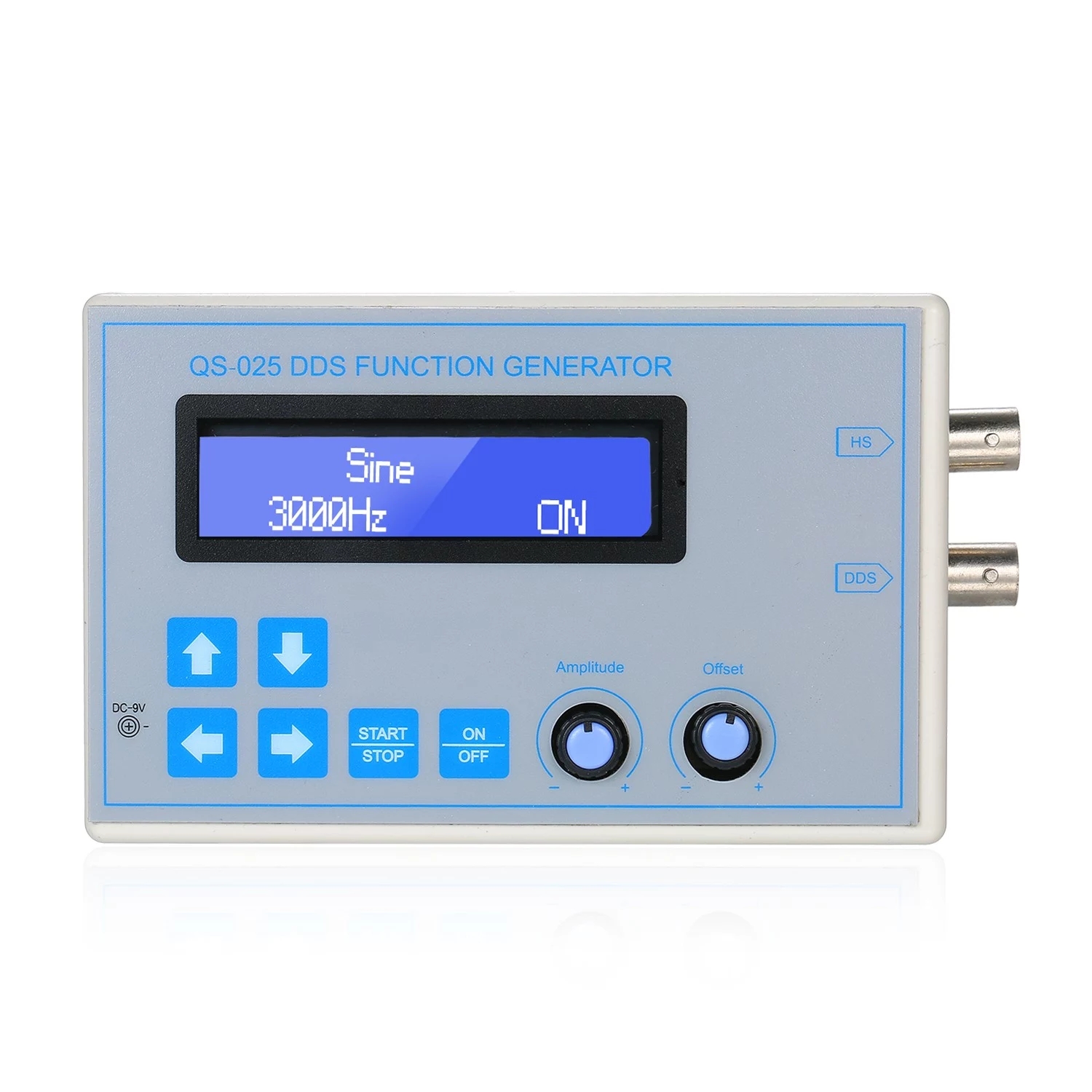

Features:Portable — Small size, powered by DC 9V, easy and portable for use.DDS frequency range — 1Hz-65534Hz, high-speed frequency (HS) output up to 8MHz.Adjustable — DDS signal amplitude of the offset amount can be adjusted separately by two potentiometers.Wide DDS signals — sine wave, square wave, sawtooth, reverse sawtooth, triangle wave, the ECG wave and noise wave.Easy Use — LCD display for clear reading, intuitive touch buttons. The power automatically restore the last used configuration.Function:UP output waveform selectDOWN output waveform selectLEFT output frequency -RIGHT output frequency +STOP / START the output stop / start”UP” key waveform order:ECG = electrocardiogram wave (in the OFF state, the “left” and “right” keys to set the output frequency. Middle button start, all of the following waveform set)Rev Sawtooth = reverse sawtoothSawTooth = sawtoothTriangle = triangle waveSquare = square waveSpecifications:Material:ABSDisplay:1602 LCDOperating Voltage:DC 9VDDS Frequency Range:1Hz-65534HzFrequency(HS) Output:up to 8MHzSection into the Value:1, 10 , 100, 1000, 10000 HzOffset:0.5pp-5VppAmplitude Amount:0.5Vpp-14VppPower Cable Length:Approx. 70cm / 27.56inItem Size:135*80*32mm / 5.3*3.15*1.26inItem Weight:198g / 6.98ozPackage Weight:203g / 7.16ozPackage Size:135*80*32mm / 5.3*3.15*1.26inPackage includes:1 x DDS Function Signal Generator1 x Power CableDetails pictures:
