Products Name:Product id:–>
Specification:Working voltage

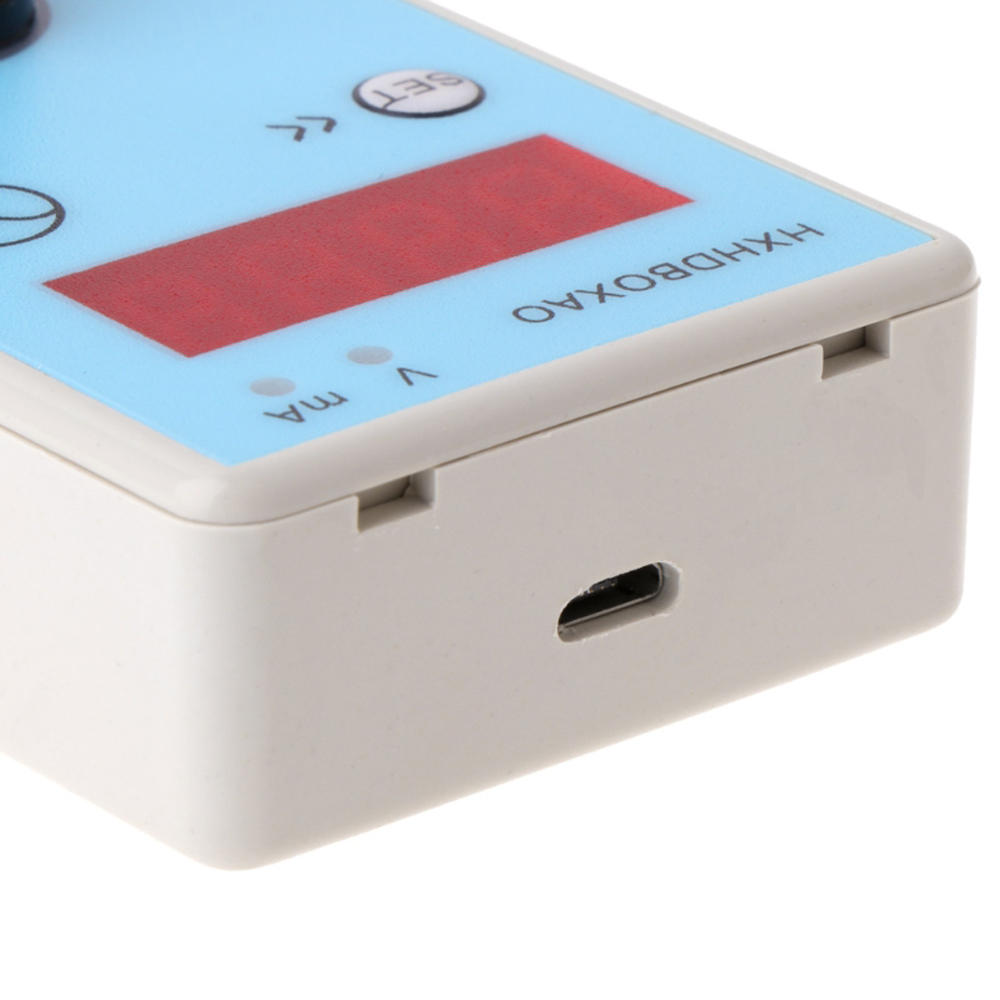

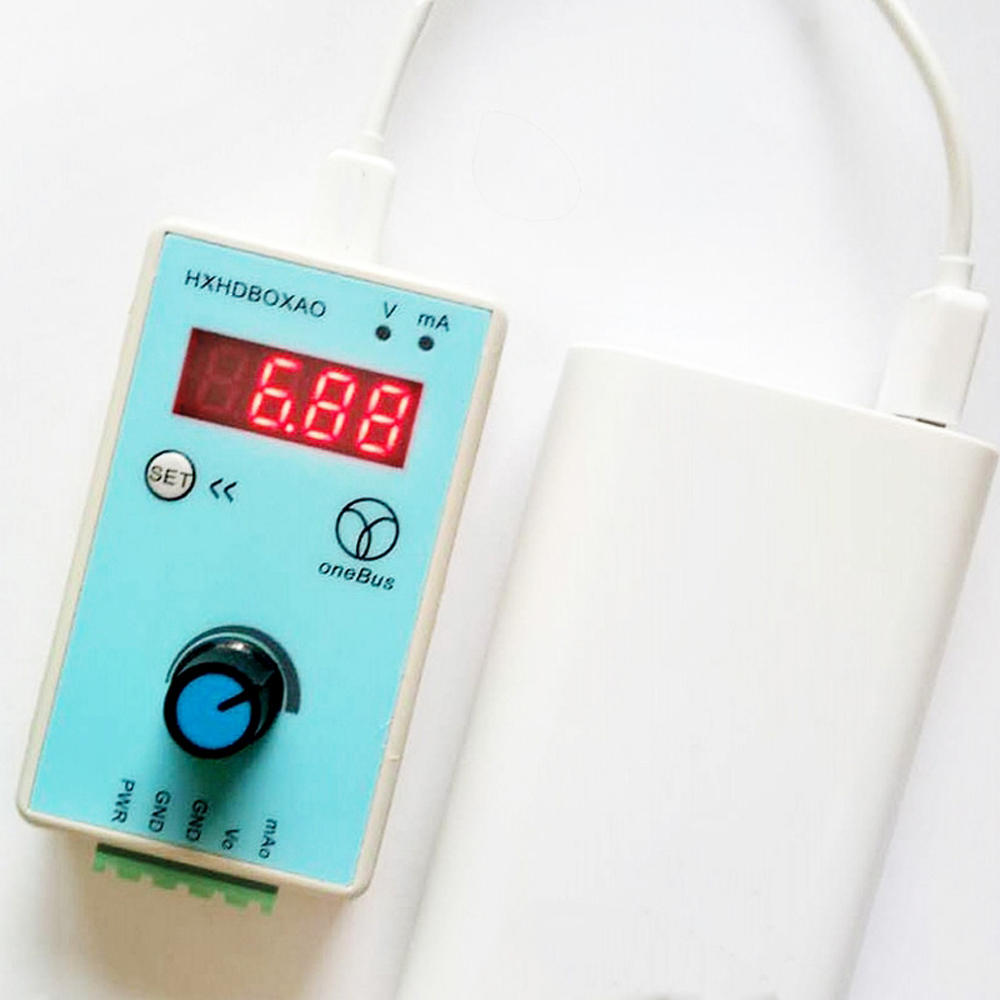

DC 15~27V /Mirco USB 5V
1CH analog output, optional voltage type (output range 0/2-10V) or current type (output range 0/4-20MA)
Voltage-type output load impedance requirements ≥ 2KΩ, current-type output impedance requirements ≤ 500Ω
3 voltage, current output, a key switch

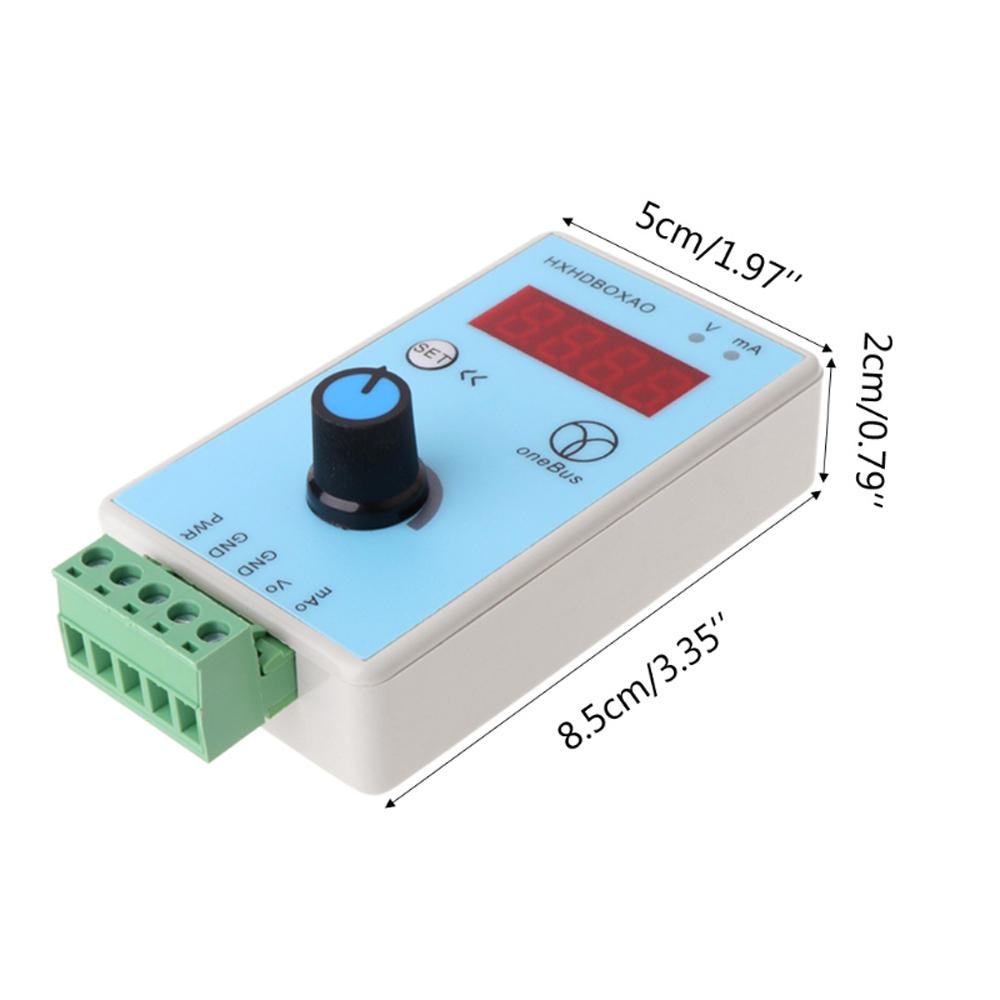

Size:85 x 50 x 22mm
Indicator description:V (red) is bright, output is 0-10V voltage signal; flashing, output is 2-10v voltage signal
mA (green) is bright, output is 0-20mA current signal; flashing, output is 4-20mA current signal

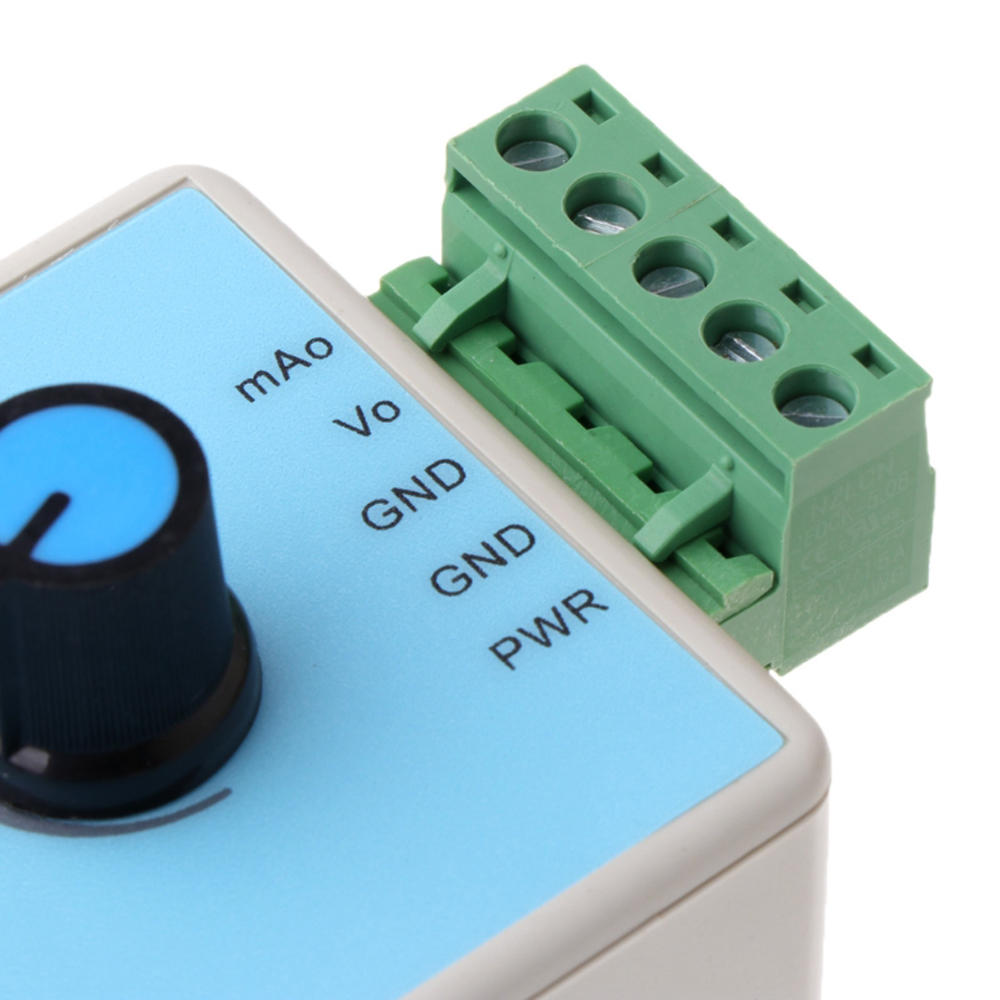

Port description:PWR:Connect to DC15-27V Positive Supply
GND:power and signal ground
GND:power and signal ground
V0:Voltage analog output interface
mA0:Current Output Analog Output Interface
Package Included:1 x Handheld Adjustable Current Voltage Analog Simulator

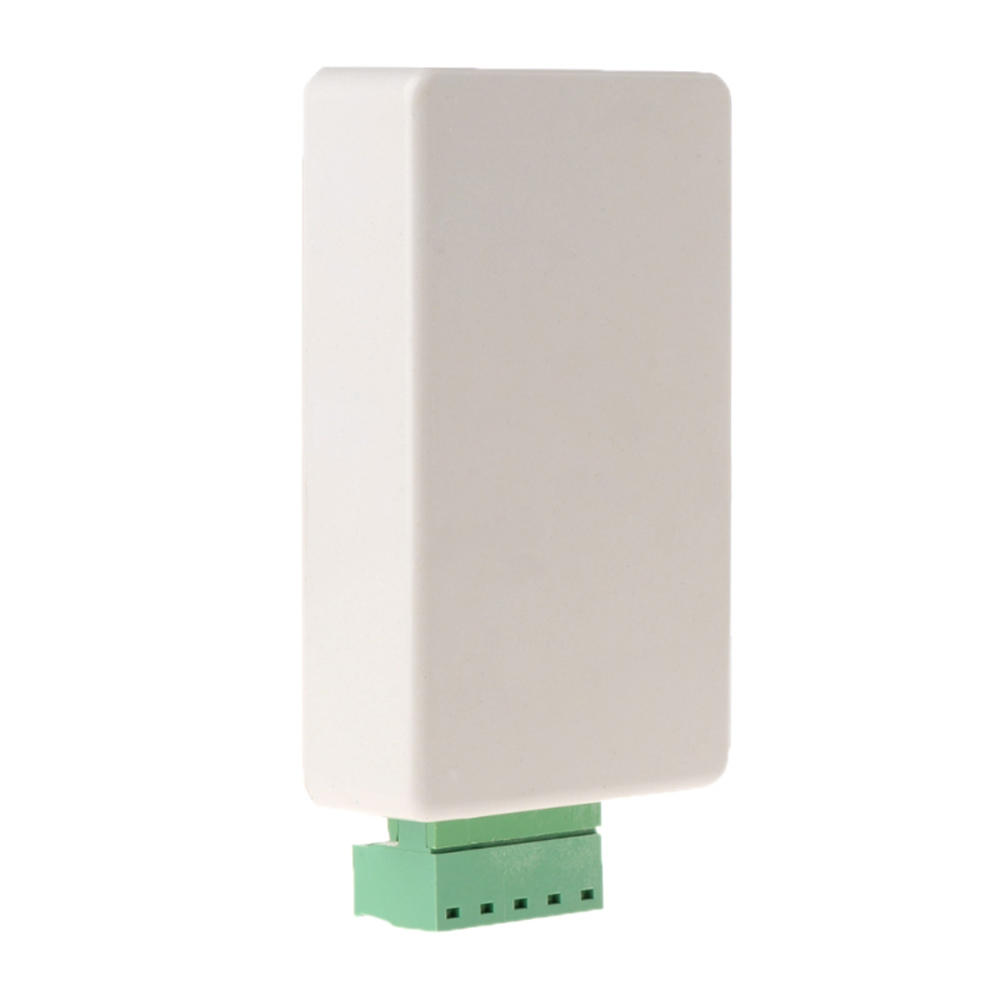

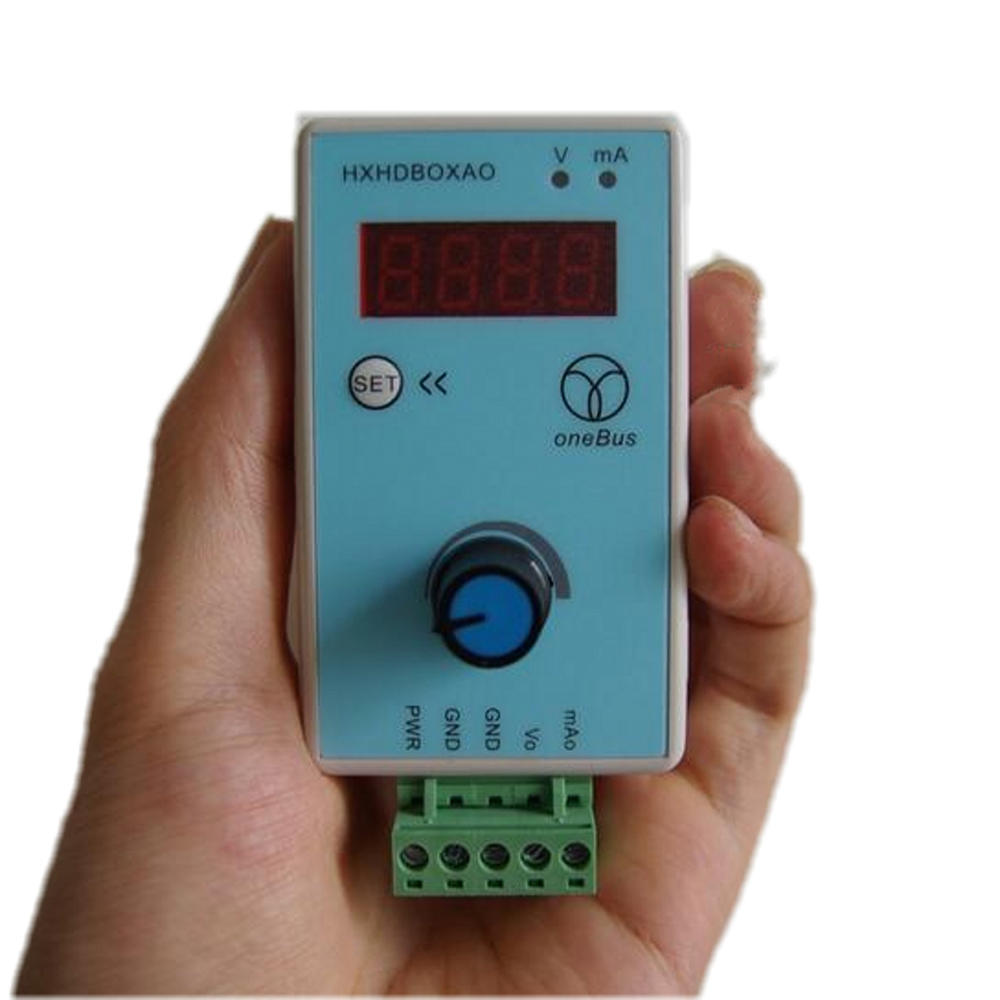

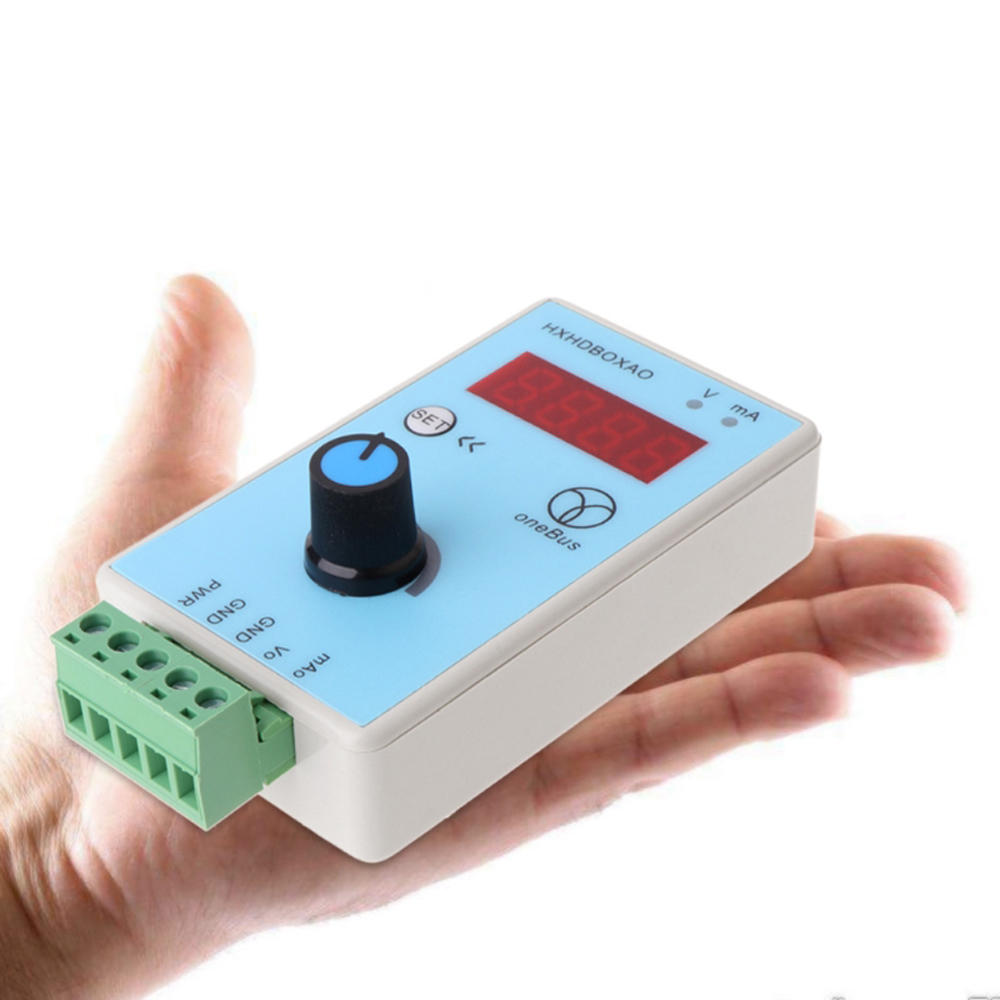

Details Pictures:
