Features:Dual display for both set temperature and process temperatureSize:72*72mmShort ShellUses it in Heating Control as well as for Cooling controlAuto-tune function can find the best PID parameter automaticallyDisplays temperature in Celsius (°C)Four digits LED display can go up to “9999Uses it for Kiln,Furnace,Oven,Incubator temperature controIt is used in various industries to control and monitor process temperaturesSpecification:Input Type Thermocouple:K, E, S, R, J, T, B RTD:Pt100, Cu50 ( The User can set the input signal type according the requirement. ) Input Range 0 ~+1300ºC K (this is the default setting. User can set the temperature range which you wanted.)
Display Two lines, Four digits in Celsius °C. Display Resolution 1°C, or 0.1°C if Pt100 input Accuracy +/-0.5% or +/-1 unit of full input range Control mode PID, ON/OFF Control Output Relay contact:3A at 240 VAC. Alarm Alarm 1 ( Upper-limit bias alarm , User can change to be other Alarm Mode.) Power Consumption
Power Supply 100~240V AC, 50/60Hz. Item Dimensions MC700 72*72*110mm Mounting Hole Size MC700 68*68mm
Package includes:1 x PID Digital Temperature Controller (NOT included Thermocouple)

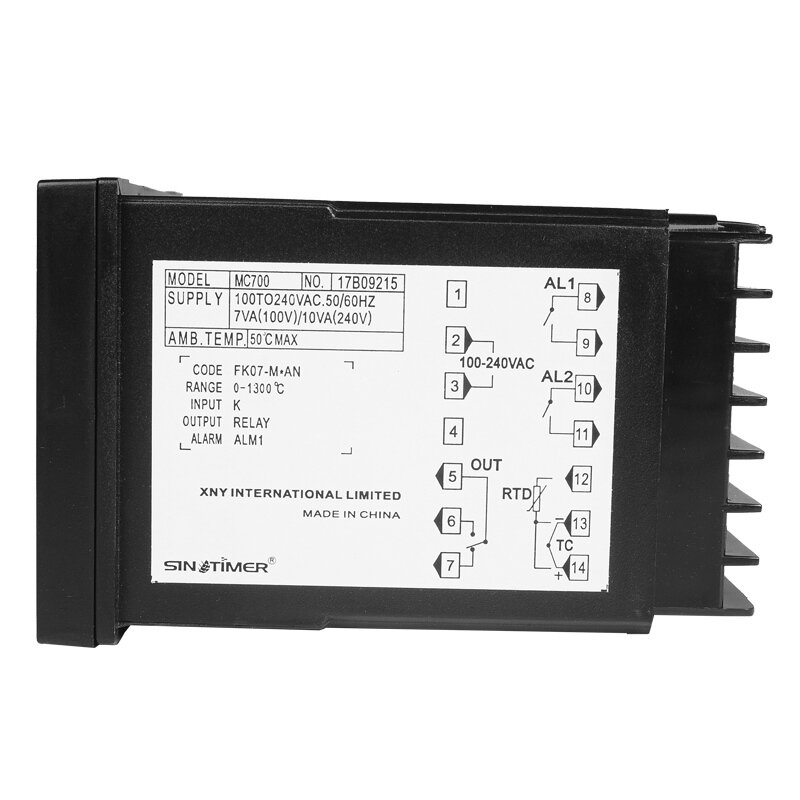

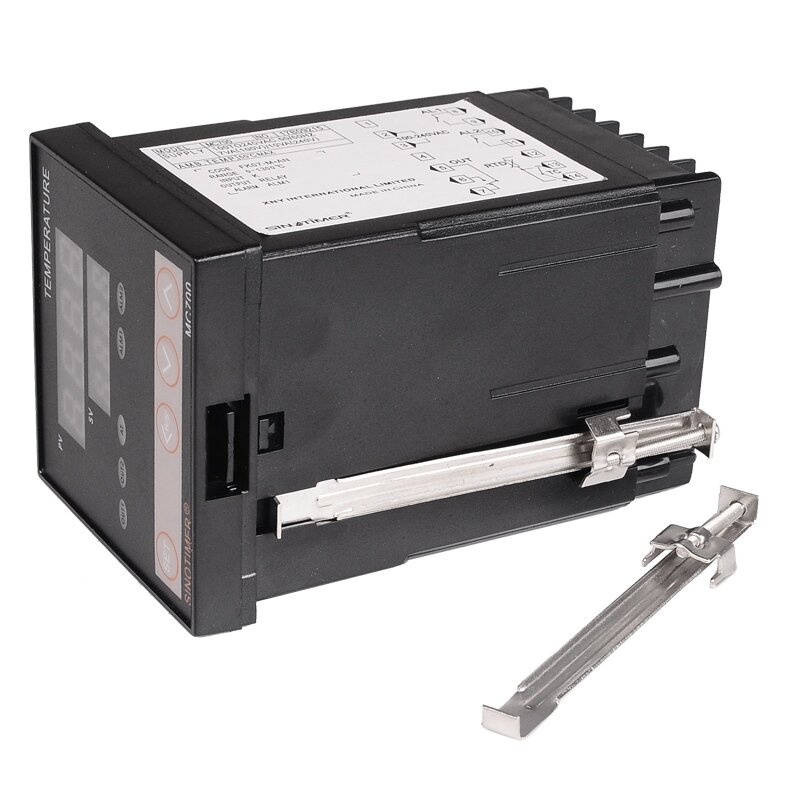

Details pictures:
