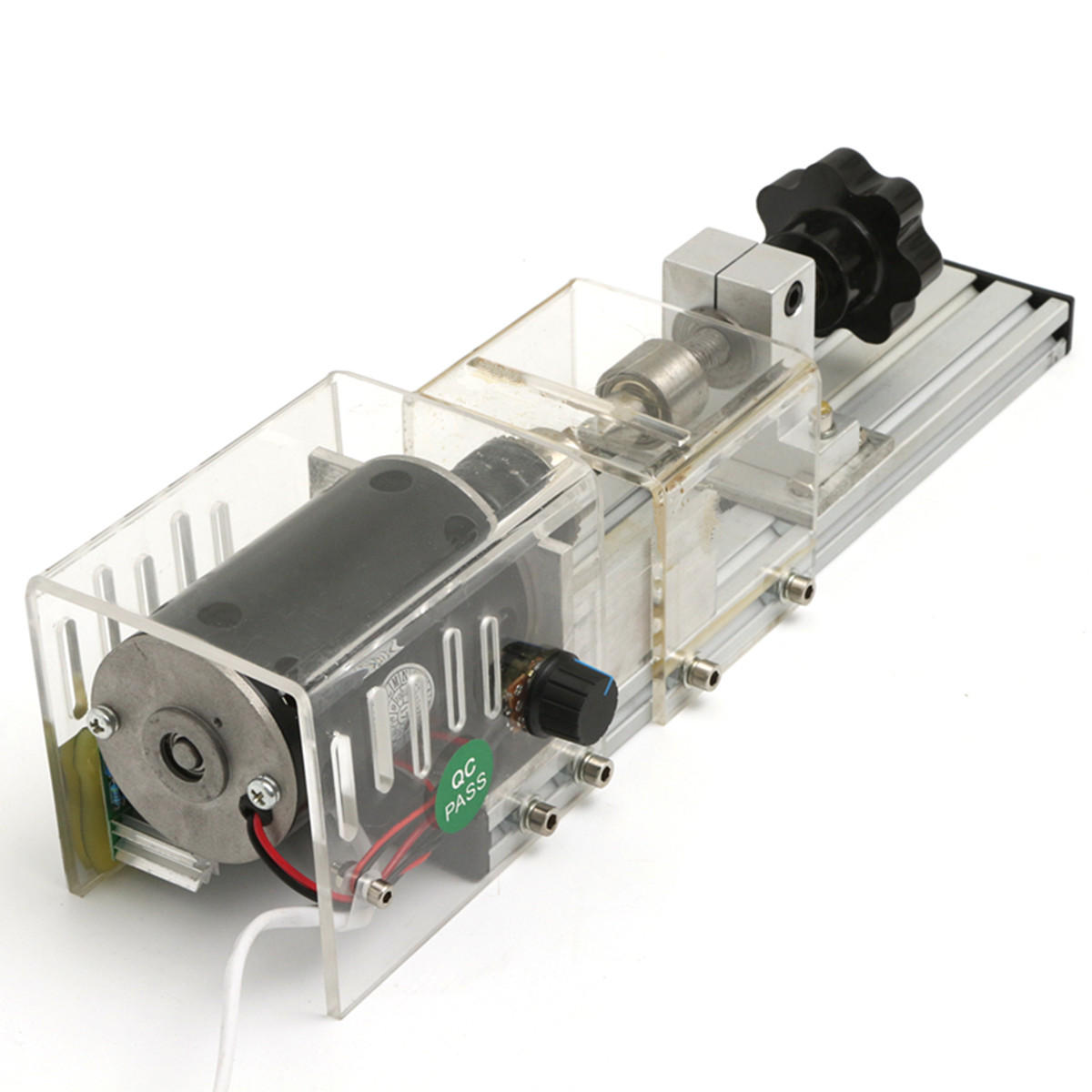

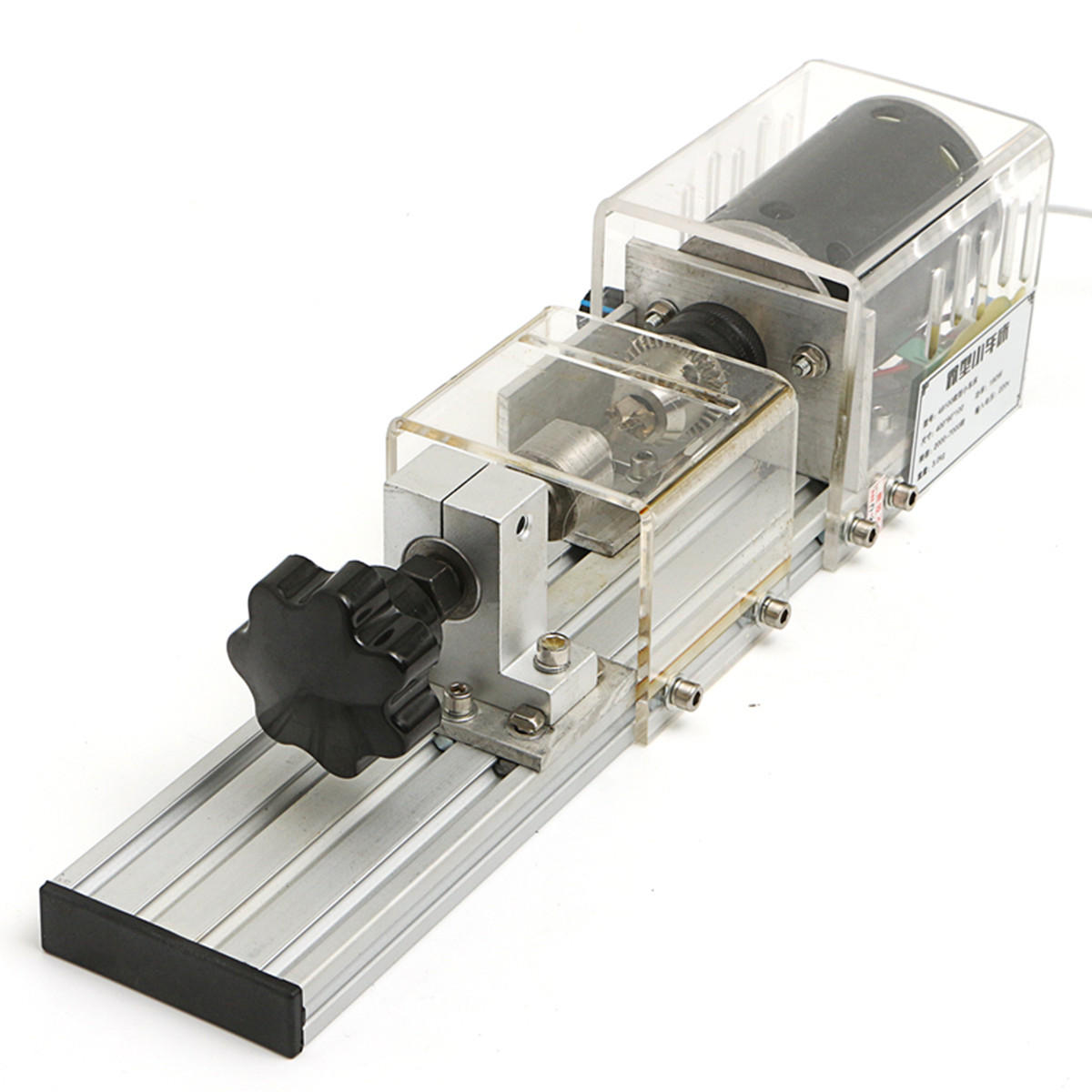

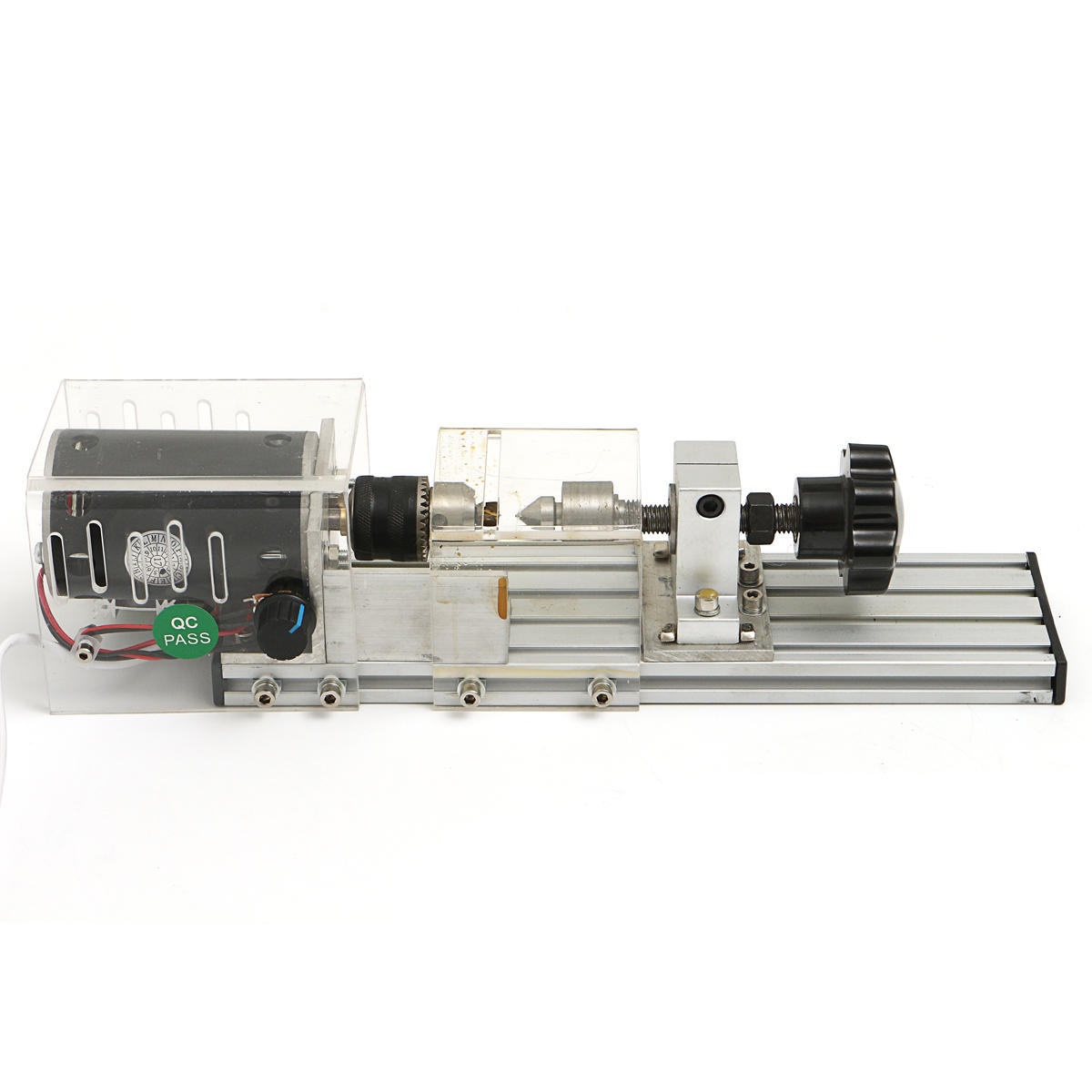

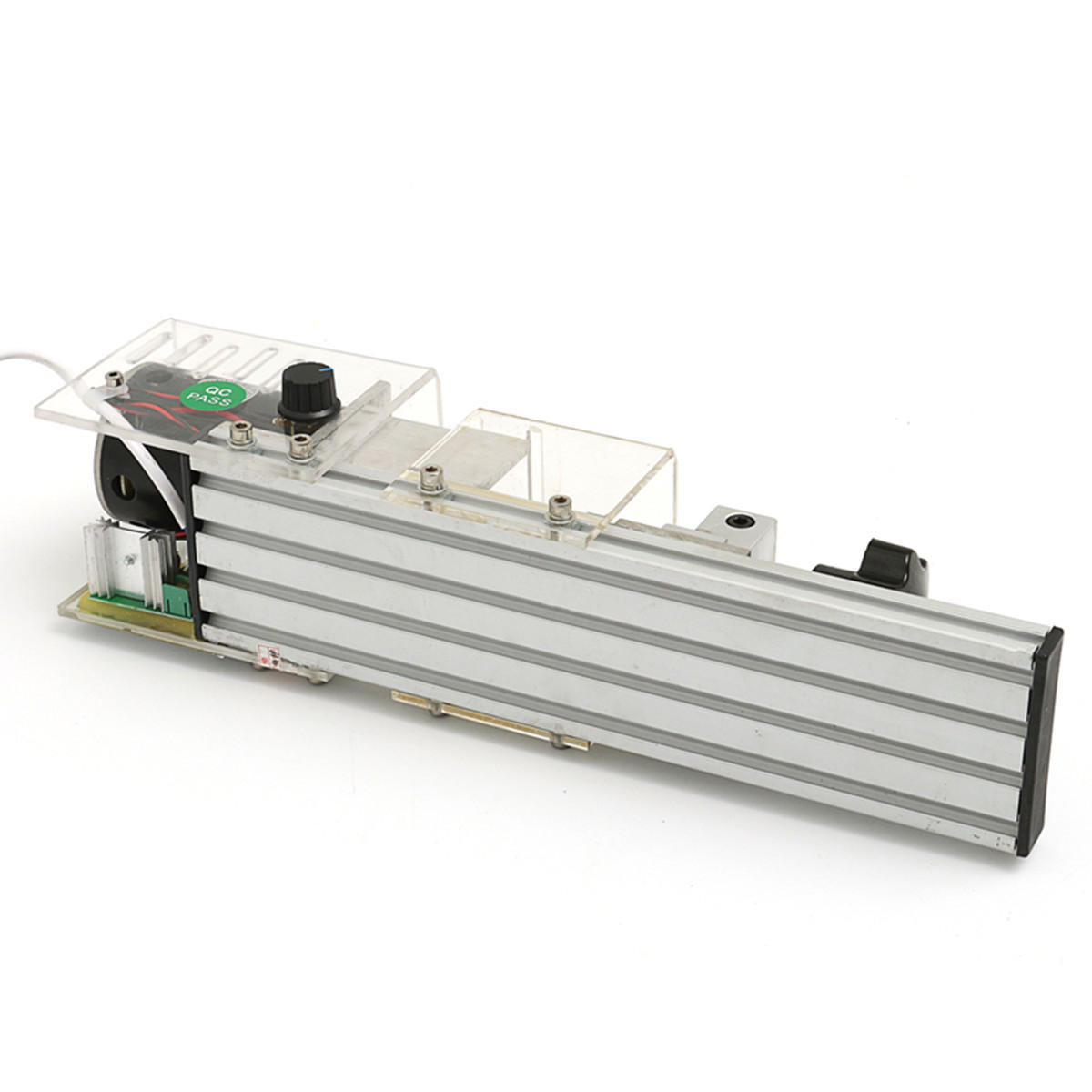

Introducing the Mini Wood Lathe by Raitool, a compact and efficient tool designed for your convenience. This machine is encased in an acrylic shell with an aluminum frame, ensuring durability and longevity. It operates on a power of 350W and a voltage of 220V AC, providing you with a reliable and consistent performance.
The Mini Wood Lathe offers a speed range of 500-8000 r/min, allowing you to adjust according to the precision required for your work. It measures 390* 95 * 90mm in size and can clamp up to a maximum length of 130mm. The collet chuck ranges from 0.5-6.0mm, providing versatility for various projects.

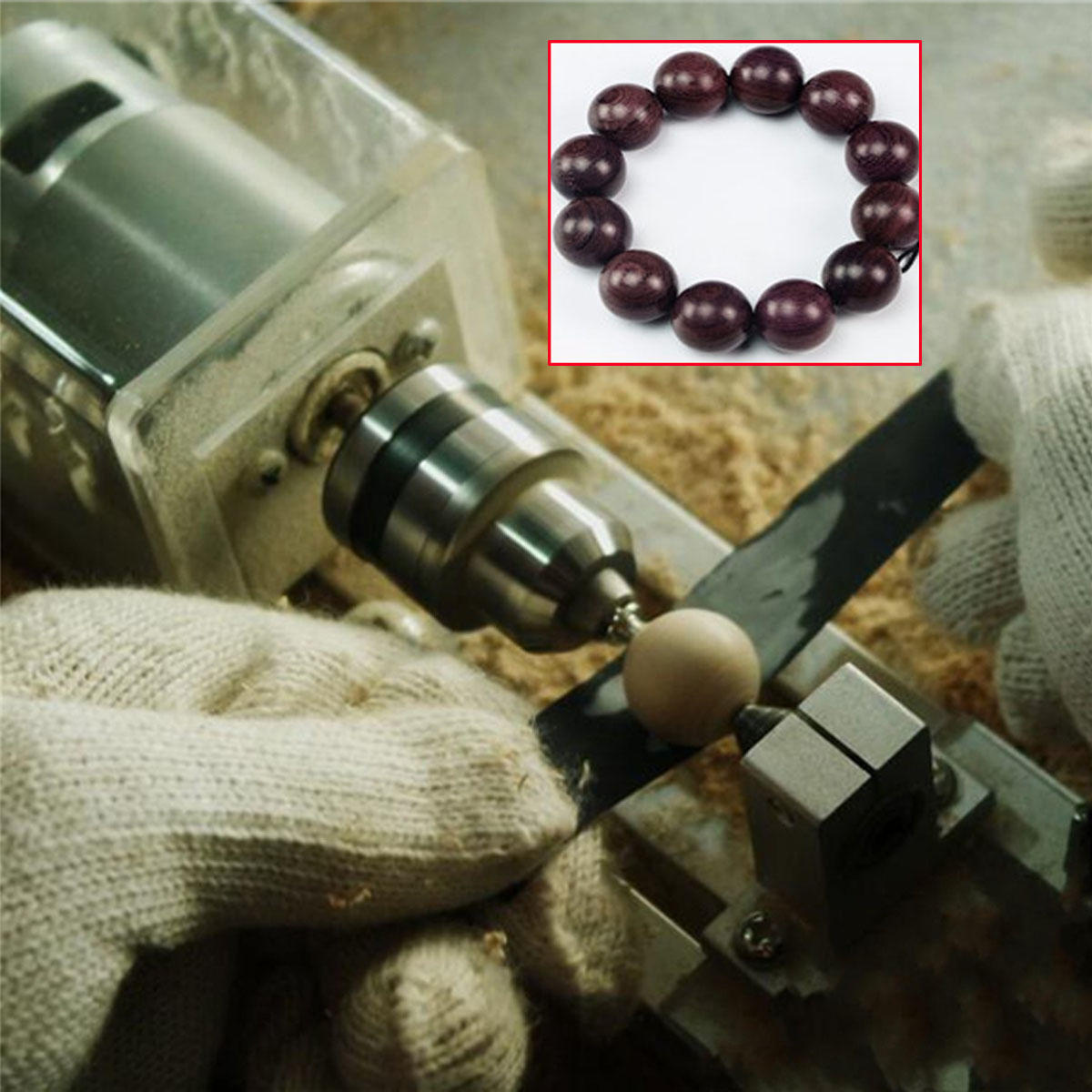

One of the key features of this lathe is its portability and low noise level. You can set up your workspace anywhere without disturbing your surroundings. The variable speed output of 500-8000RPM ensures high precision machining. The 350W powerful ball bearing spindle motor offers higher torque than a standard 100W rated machine, making it ideal for home woodworking, beads processing, DIY handcraft, and more.

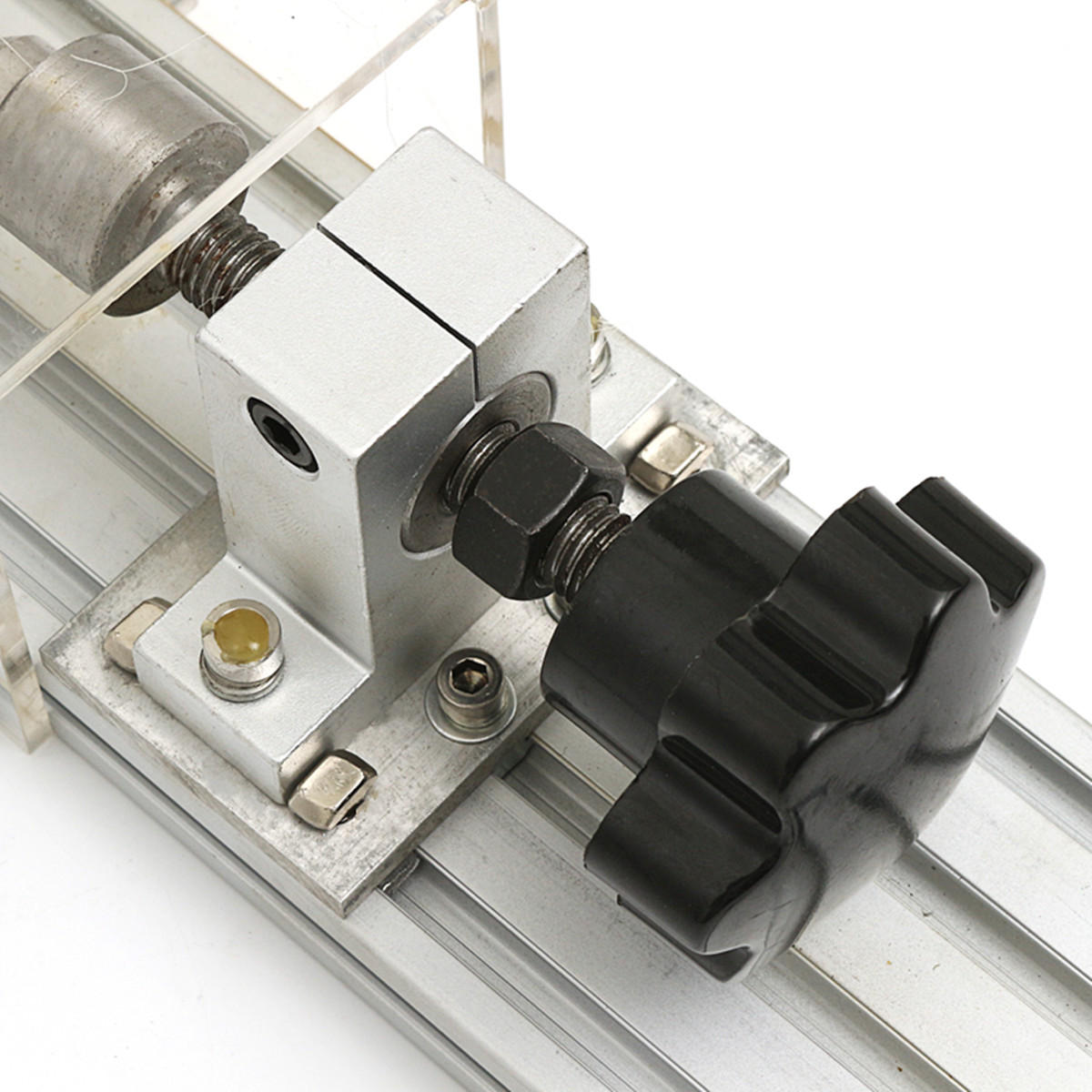

For those new to using a lathe, remember to operate at a low speed, slowly and cautiously. The speed can be adjusted between 50-8000RPM, but when cutting wood, it should not exceed 4000. For grinding, you can use a higher speed. Ensure that the drill chuck axis, the axis of the wood, and the tailstock center of the drill are in a straight line. If not, adjust the nut accordingly. If you’re not working on a cylinder, reduce the speed. Remember to lock the tailstock bearing tight and keep the blade’s bottom screw locked, located 1-1.5cm away from the timber. If you’re unsure about the operation, it’s best to consult a professional.

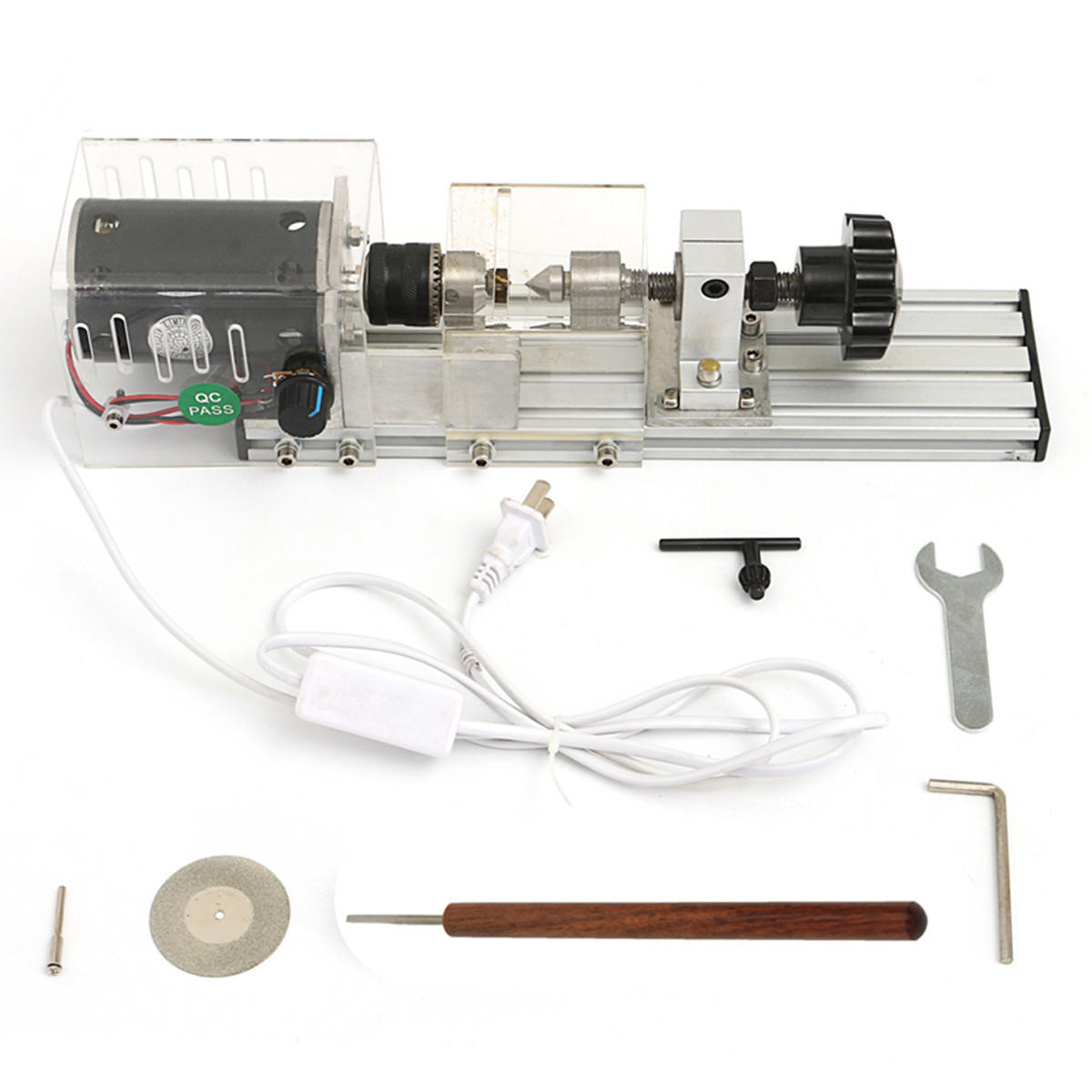

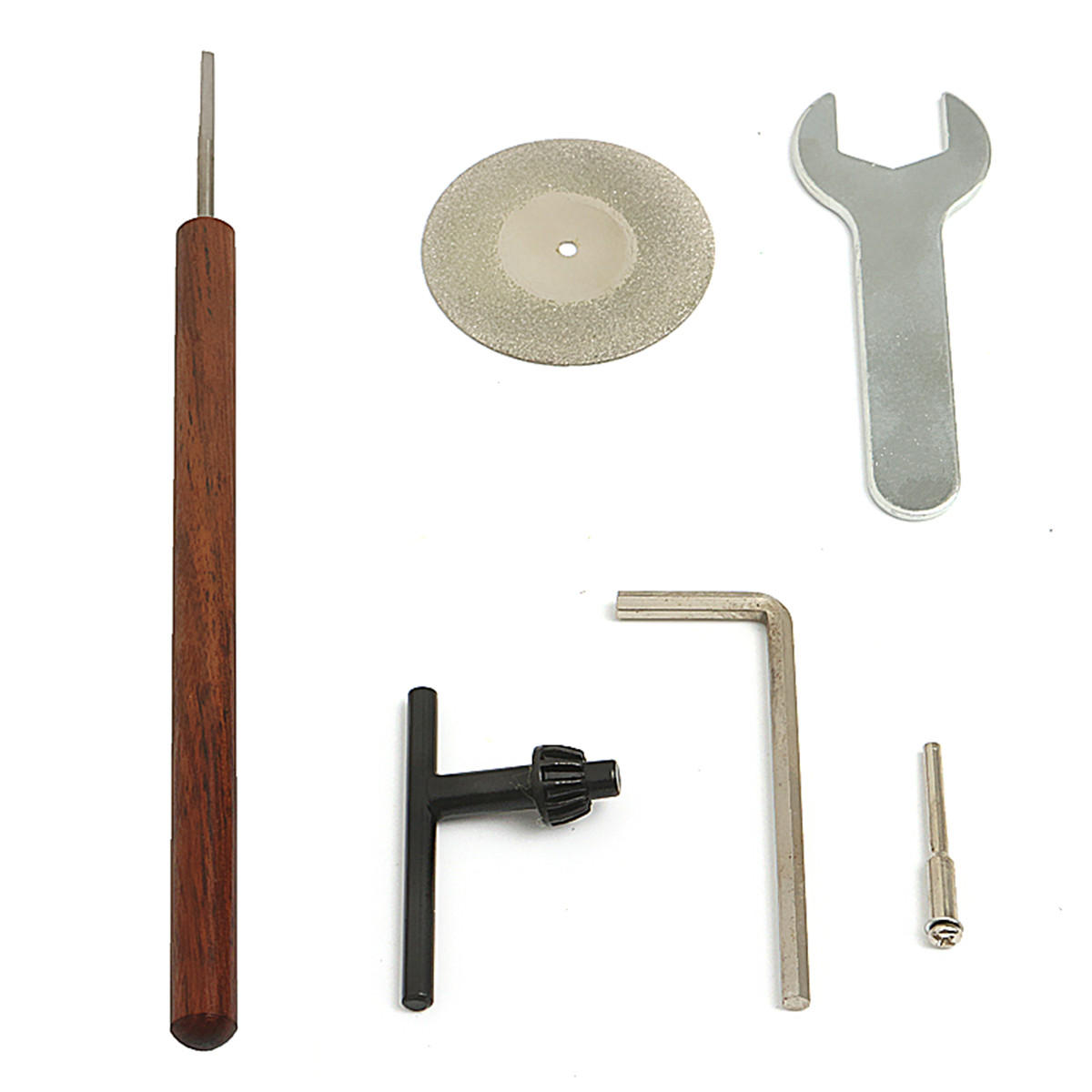

The package includes one set of Beads Lathe Machine. We will provide an adapter according to the delivery country.
