Dive into the details:

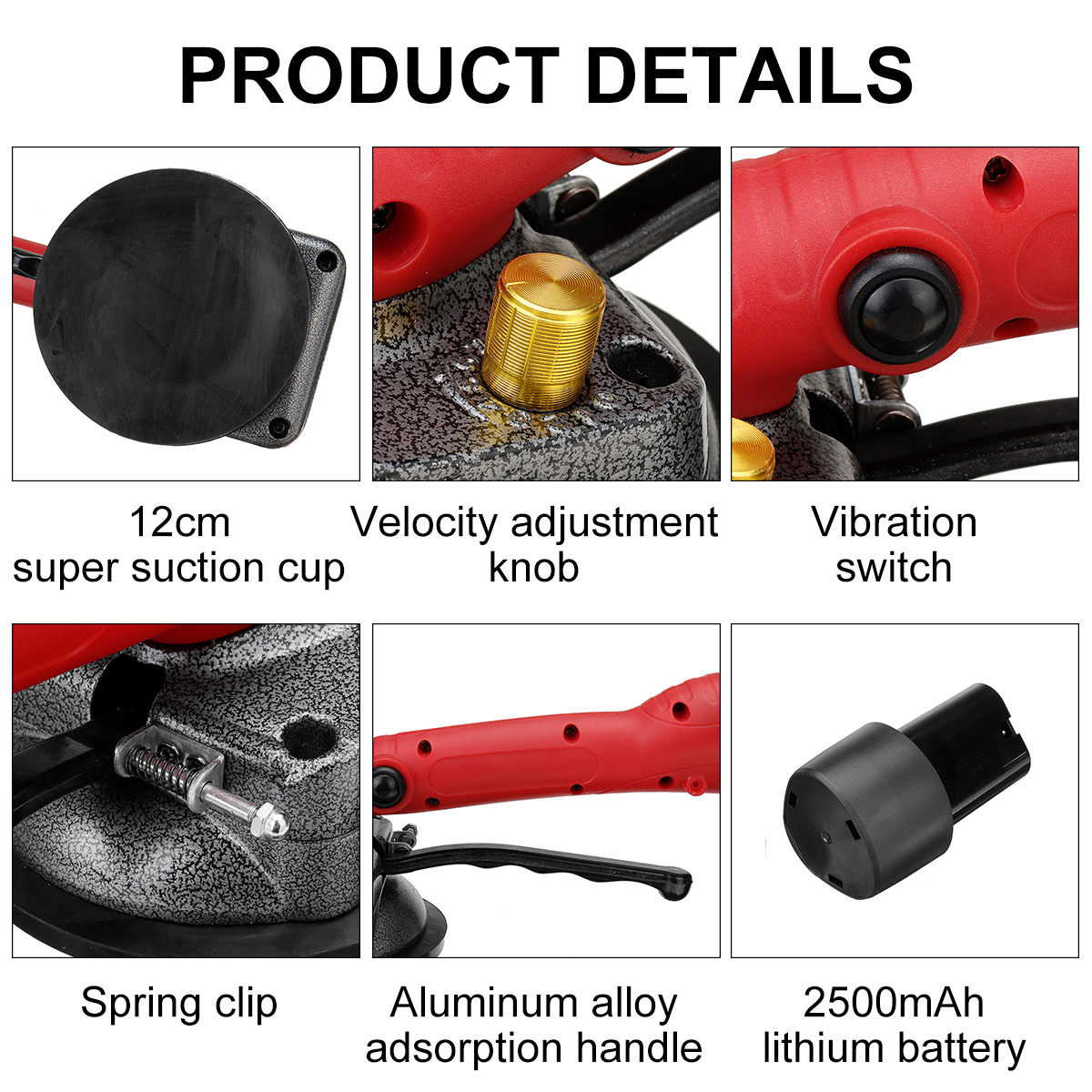

Features:
* Perfect for wall and small floor tiles: This tool is designed to assist in the movement and installation of floor and wall tiles, significantly enhancing the efficiency of your work.
* Intelligent frequency control: This feature allows for multi-position adjustment.
* Exceptional adsorption capacity: With a 100kg super strong adsorption capacity, attaching tiles becomes a breeze.
* One-button vibration, even force: You can adjust the vibration frequency according to the size of the tile. With 10-speed adjustability, it can correct the position of the tile and boost efficiency.
* One-handed operation: Stable and safe operations make your job easier. This tool is not only suitable for professional engineering teams but also for home use.
* Spring lock mechanism design: This feature makes the tool convenient and effortless to use.
Specifications:
Power: 1000W
Lithium battery capacity: 12V
Charging time: 1-2H
Working time: ＞8H
Vibration frequency: 12000r/min
Adsorption strength: 100Kg
Suction cup diameter: 12cm/4.7 inch
Suitable tile: 800x800mm
Product size: Approx. 12x32cm/4.7 x12.6 inch
Zipper storage bag size: Approx.34x21x13cm/13.4×8.26×5.11 inch
Machine Head Material: Aluminum-magnesium alloy, stainless steel
Instructions:
1. Before use, ensure that the battery is fully charged.
2. Turn the inverter switch to the left to the minimum, then start the machine and adjust to the appropriate state according to your requirements.
3. Place the machine on the tile to be laid, hold the suction cup and the tile. Press the switch machine to start working and instantly flatten the protruding part of the tile.
4. During operation, ensure to hold the suction cup to work on the tile. Avoid letting the machine idle and do not keep pressing the switch during the paste process. Maintaining a rhythm is more conducive to paving.
Charging instructions:
1. Upon receiving the machine, press the switch to check if the frequency switch works. If the machine’s indicator light is not on, please charge it first before using it. When the charger is connected and charging, the charging indicator on the charger will light up.
2. This product typically charges for 3-4 hours, with an automatic stop when full. The indicator light will turn green or switch off.
3. Once fully charged, the product can work for more than 8 hours. However, to prolong the product’s lifespan, please charge it daily during regular use.
4. Under normal usage, this product needs to be charged once a day. If not in use, it should be charged at least once a month.

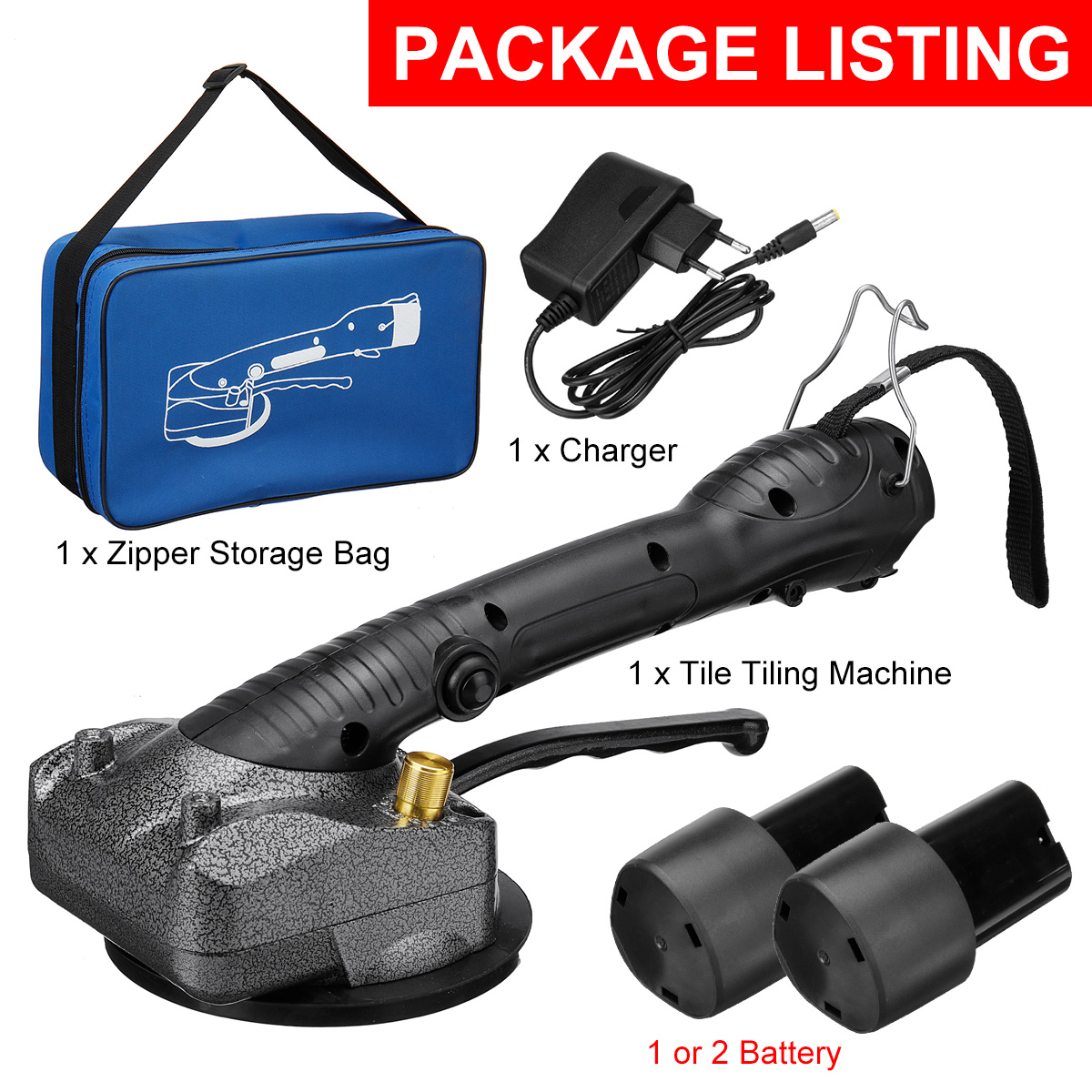

Package Included:
1 x Tile Tiling Machine
1 or 2 Battery (optional)
1 x Charger
1 x Zipper Storage Bag
