Detailed Description:
The product is a Mini Circuit Breaker produced by the brand TONGOU. It’s intended for non-professional use, and does not require any maintenance. The breaker is equipped with an “ON-OFF” indicating signage making it suitable for isolation function. For safety precautions against potential surge voltage and current at the power input side, particular devices such as surge protective devices or a surge arrester are recommended to install at upstream line to this Mini Circuit Breaker.
Product Specification:
- Brand Name: TONGOU
- Model Name: TOMG3-63
- Pole No: 4P
- Rated voltage: AC 110V/230V/400V
- Rated current: 6A/10A/16A/20A/25A/32A/40A/50A/63A
- Tripping curve: B Type
- Rated short-circuit capacity: 4.5 KA
- Rated impulse withstand voltage: 6.2 kV
- Rated frequency: AC 50/60Hz
- Electro-mechanical endurance: > 6000
- Certificate: CE CCC
- Standard: IEC 60898
- Installation: DIN rail mounting
Package Contains: 1 x Circuit Breaker

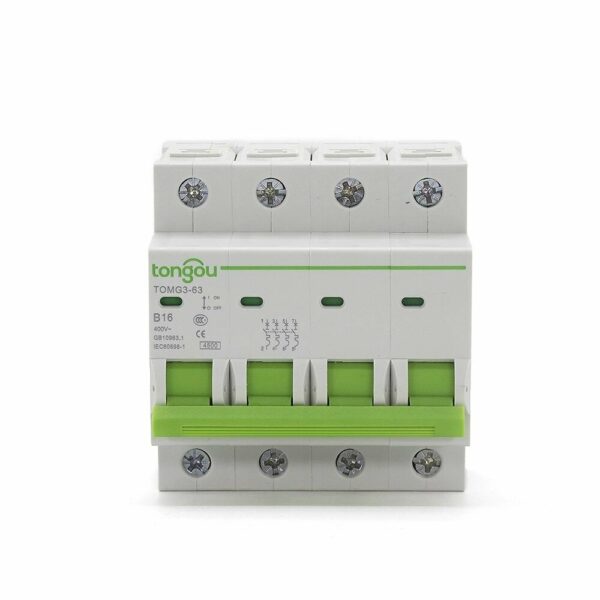

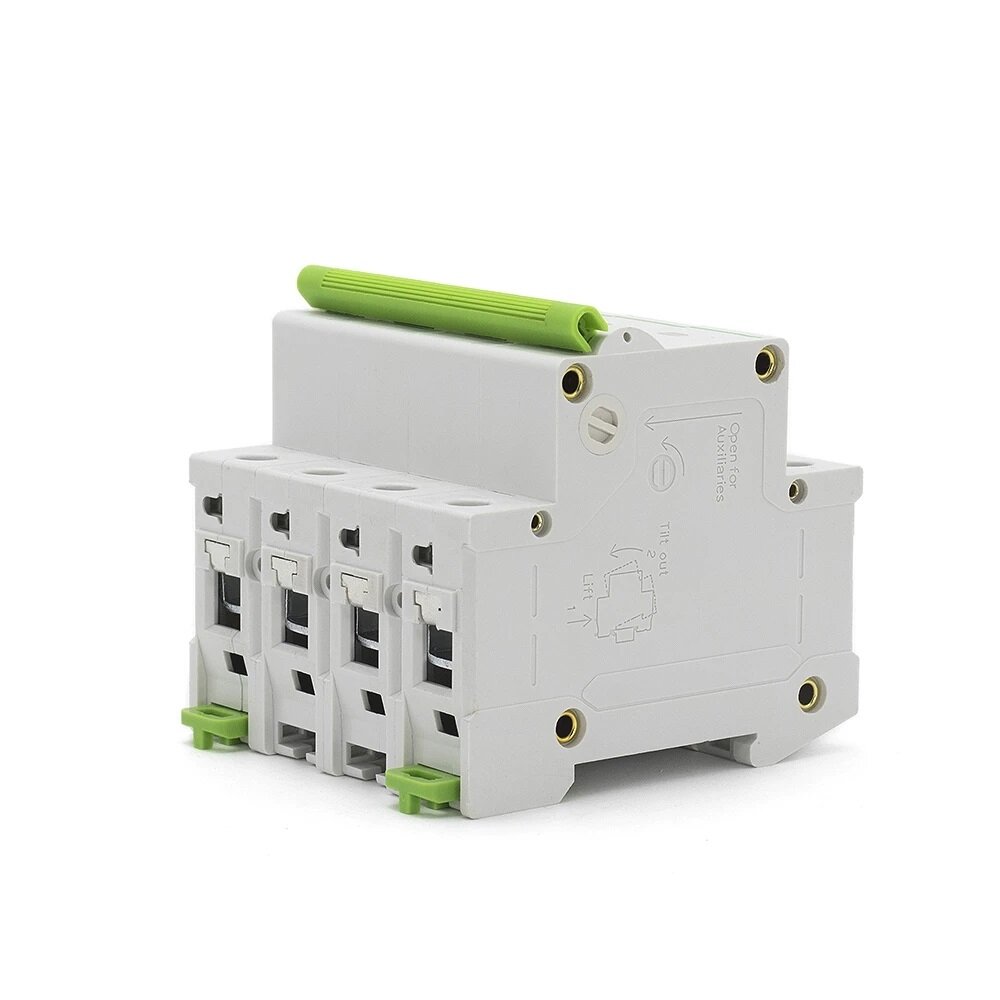

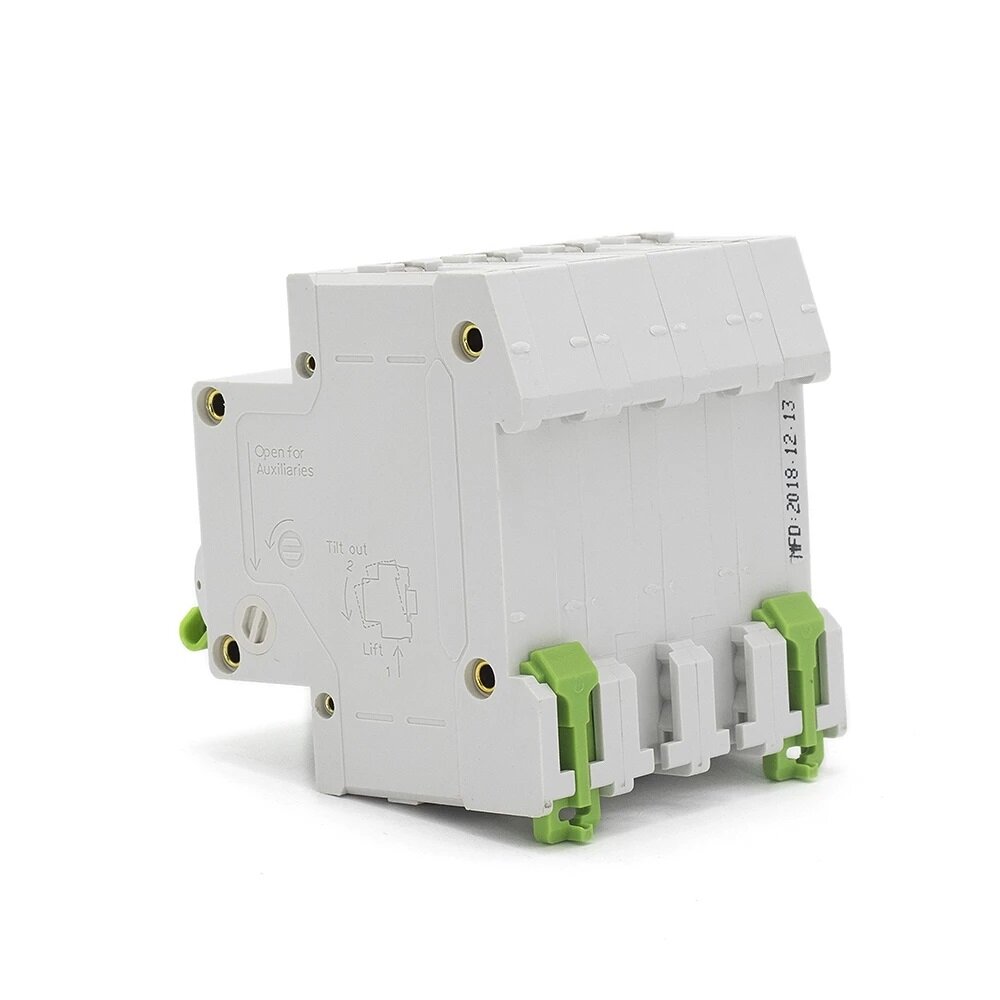

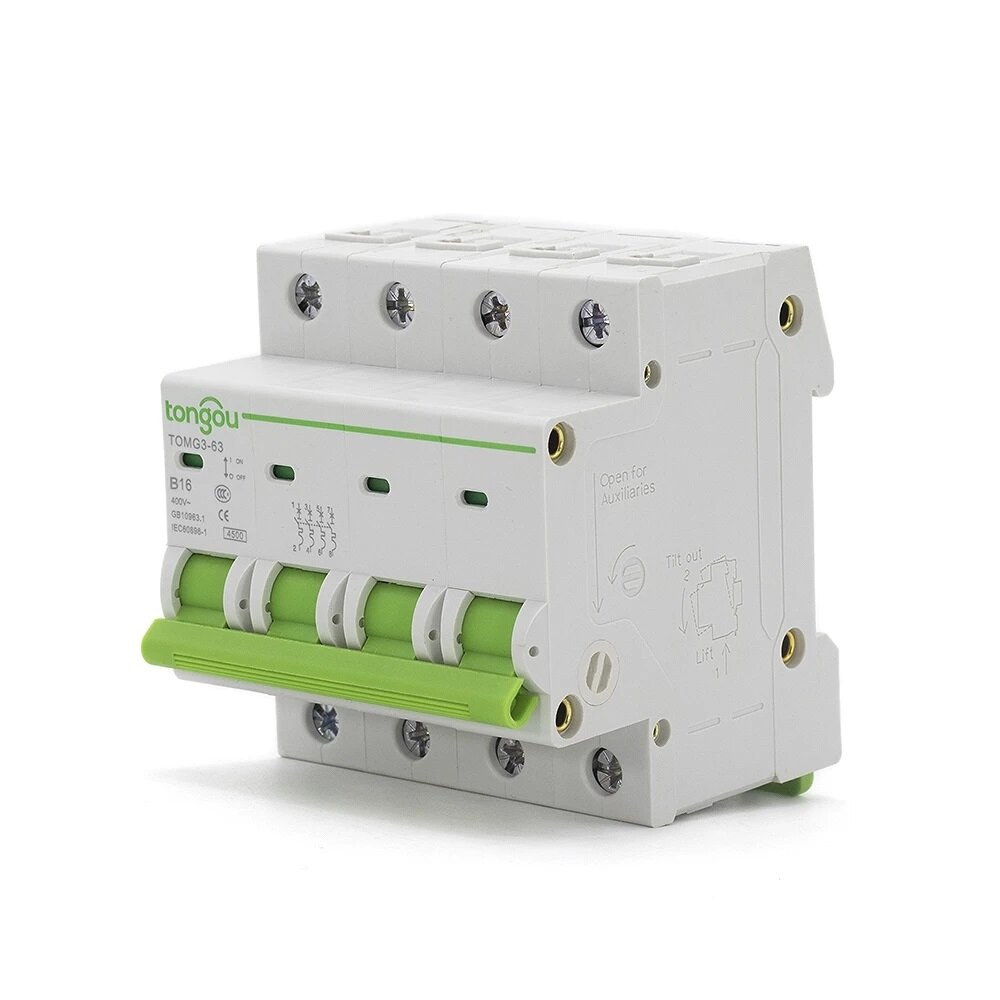

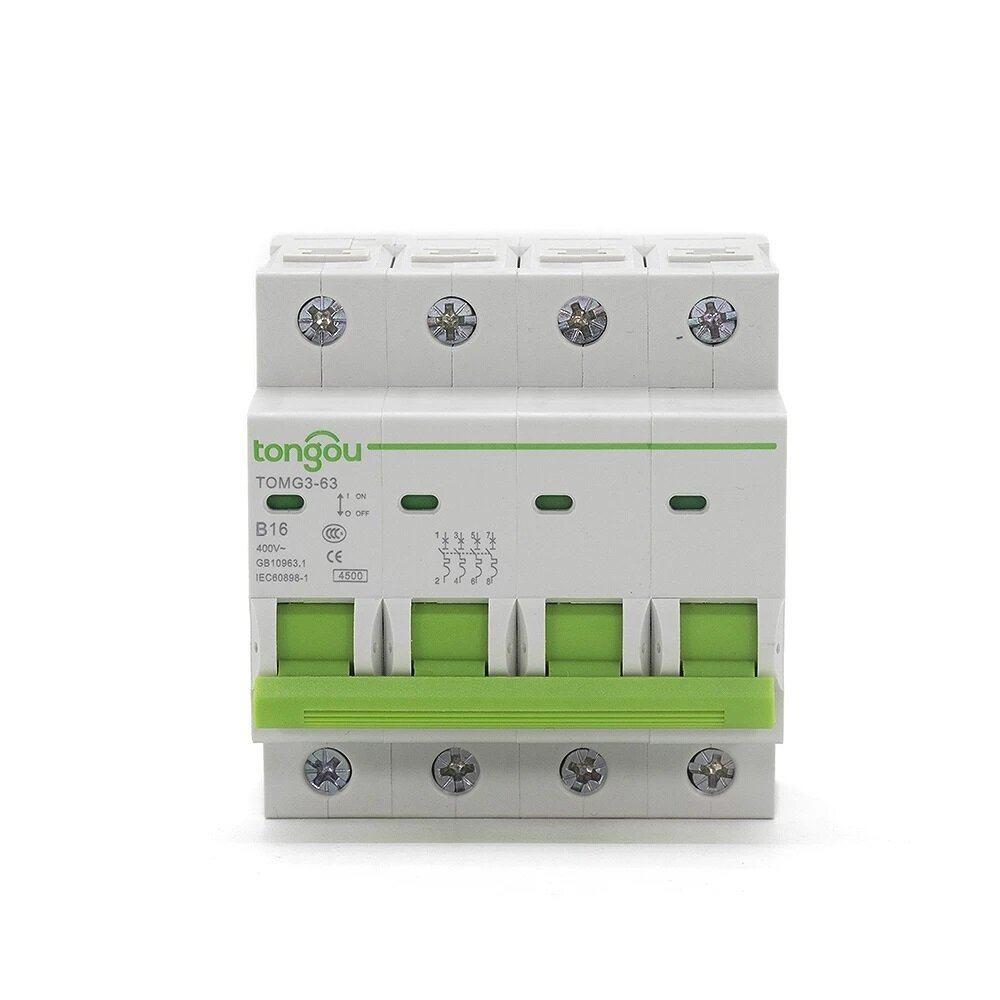

Product Images:
