Introducing the SM852B 60V-600V AC 3 Phase Rotation Tester Indicator Detector Meter, an essential tool you never knew you needed. This device cleverly combines the function of both phase sequence identification and phase existence detection into one compact and easy-to-use unit.
The SM852B is complete with alligator clips, designed to get a firm grip on the control panel terminals you’re testing. This means you can trust it to deliver reliable and safe results every time you use it.
Even better, this handy piece of kit can handle a wide phase detection range from 60V all the way up to 600V AC three-phase. This ensures high reliability and peak performance no matter the situation.
The designers had users in mind when creating this device. Easy to carry, small, and lightweight, it couldn’t be more user-friendly.
Key Specifications:
Operating Voltage: 60V – 600V AC three phase.
Maximum Support Voltage: 2000V/minute (impulse voltage 4000V)
Operating Frequency Range: 20Hz – 400Hz
Maximum Continuous Use Time: 60 minutes at 60V AC; 4 minutes at 600V AC
Test Leads: Double insulation, approximately 1 meter in length
Dimensions: 80 x 60 x 25mm

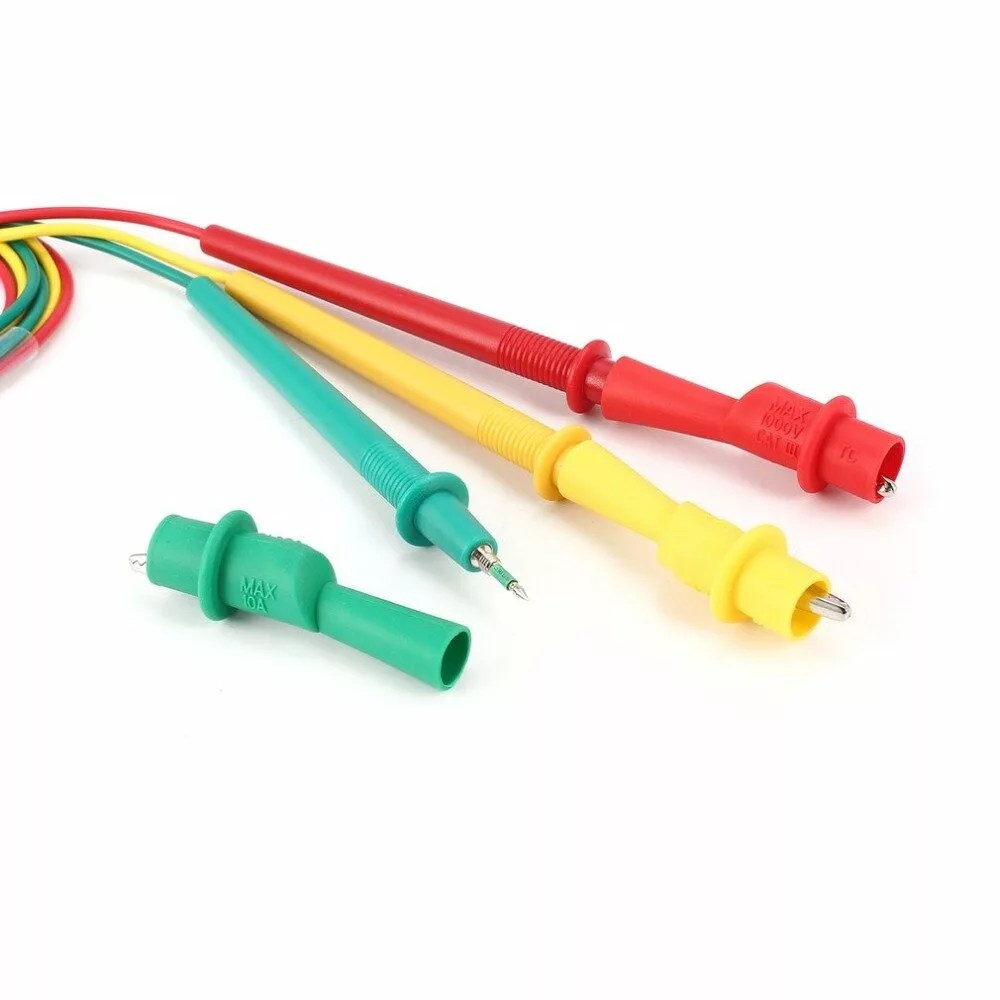

Test leads: Red (L1, R), Yellow (L2, S), and Green (L3, T) all included.
What’s in the box?
1 x Main Unit with Test leads
3 x Alligator clips
1 x Zippered Blue Carrying Case
1 x User Manual
Join the many who trust the SM852B for their rotation testing needs. It combines excellent functionality with a smart design – take a look at these detailed images for a closer look:
