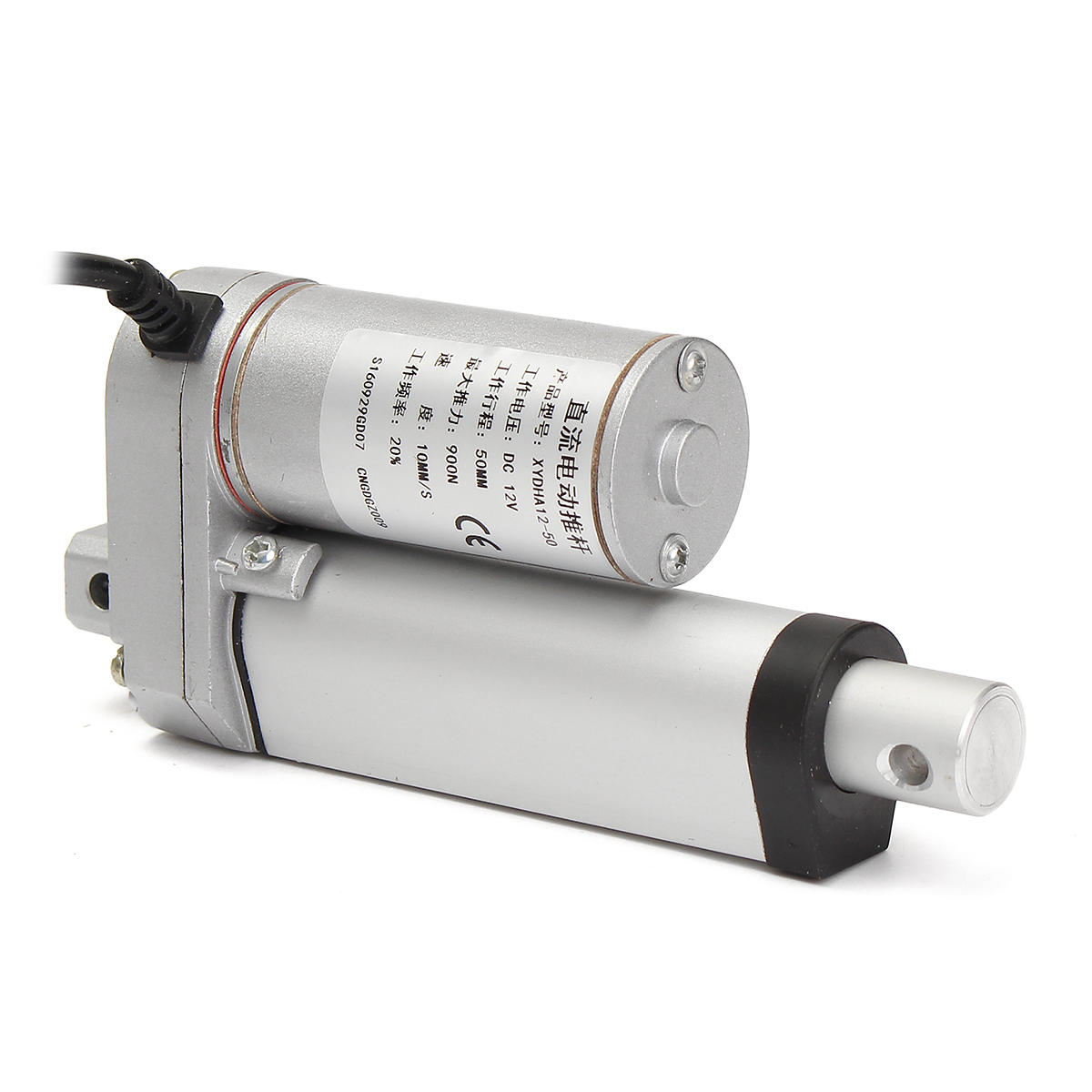

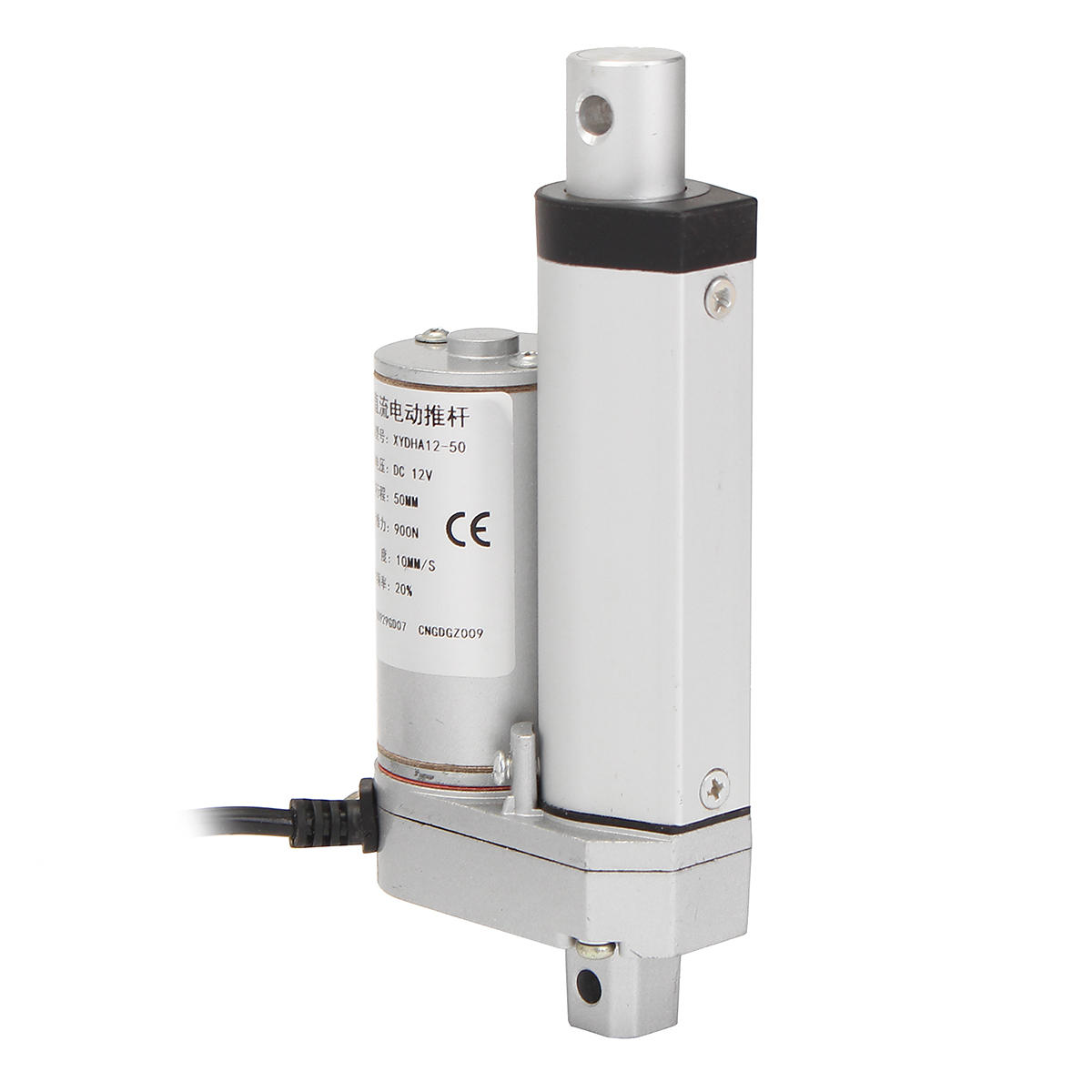

Product Name: Miniature Linear Actuator
Item Description: This compact linear actuator is a versatile tool used in various fields such as industrial machinery, agricultural equipment, construction, cleaning vehicles, marine vessels, cargo handling, and many more. It’s an energy-efficient alternative to hydraulic and pneumatic systems.
Specifications:
Material: Aluminum alloy
Load capacity: 900N
Input Voltage: 12V DC
Speed: 10mm/s
Stroke Length: 50mm/2 inch
Working frequency: 20%
Technical Parameters:
Rated power: 20W, maximum 30W.
The push bar includes a travel limit switch on each side. When the bar reaches its maximum or minimum extension, it automatically cuts off the power.
The motor does not idle. Once the power is cut off, it can stop at any position, providing a self-locking function.
The push rod, driven by a DC motor with a screw drive, can only retract without rotation.
The motor can operate in both directions. By changing the polarity, you can alter the direction of the rod’s extension.
Ambient temperature range: -20°C to +75°C.
Standard protection class: IP54.
Designed for low noise operation, with a noise level less than 42dB.
Please avoid disassembling the machine.
Product Features: Capable of driving other objects to push, pull, rise, or drop.
Product Applications: Ideal for use in TV lift tables, massage beds, electric beds, medical chairs, electric equipment, micro-devices, electric sofas, camera frames, cameras, and more.
Installation Size:

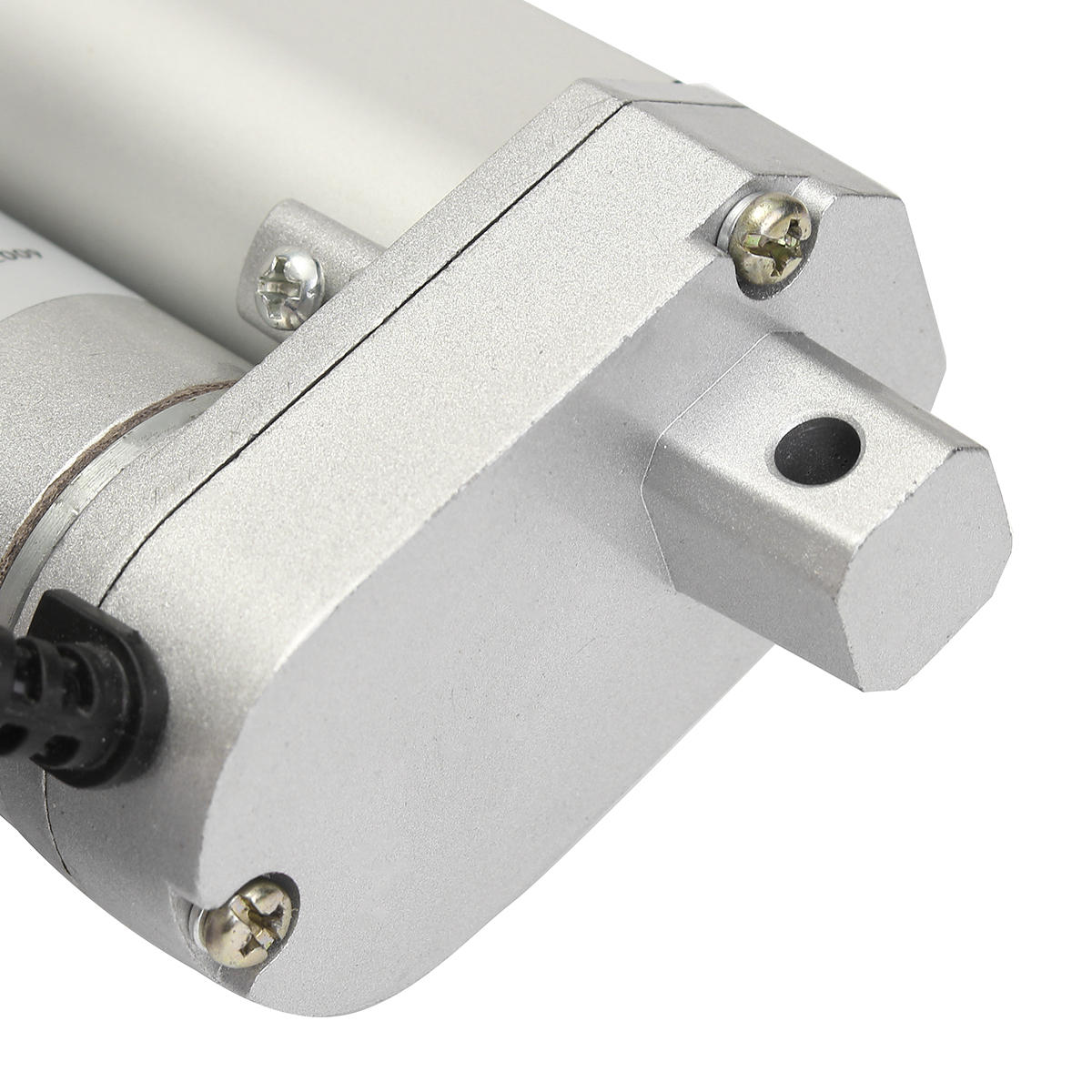

(1): The minimum mounting distance of the push rod (i.e., the length of the push rod itself) is the center distance between the two mounting holes when the push rod is fully retracted.
For strokes below 300mm, L (mounting dimensions) = 105mm + S (stroke)
For strokes of 300mm and above, L (mounting dimensions) = 155mm + S (stroke)
(2): The center distance between the two mounting holes when the push rod is fully extended.
For strokes below 300mm, the distance = 105mm + S (stroke)
For strokes of 300mm and above, the distance = 155mm + S (stroke)
Notice: Before use, ensure the motor voltage is correct. If using a DC motor, also ensure the power supply current is sufficient. Avoid storing or operating in high temperature or humid environments, or in the presence of corrosive gases, as these conditions can reduce motor efficiency. When soldering the motor’s positive and negative power supply terminals, the soldering iron temperature should be 340°C±40°C, with a heating time within 3 seconds. Avoid deforming the plastic. When installing the motor, ensure the screws are not too long to avoid damaging the internal parts of the motor.
Please Note: Brackets and controllers are sold separately. Please browse our shop to find the suitable kit.
Package Included: 1×Linear Actuator Motor 50mm
