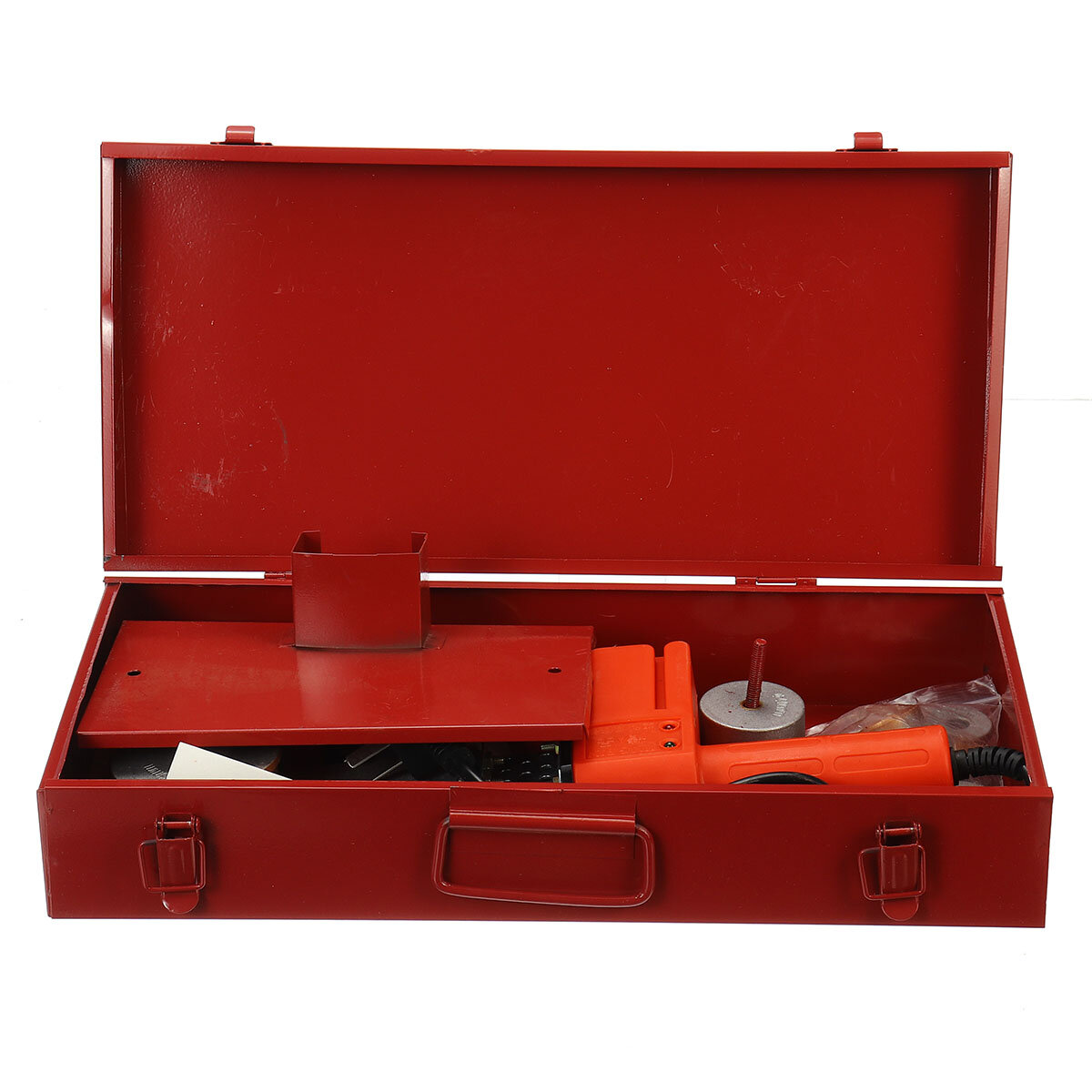

What’s in the Box:
1 x Heating Pipe Welding Machine
6 x Welding Heads
1 x Installation Kit Set
Product Details:

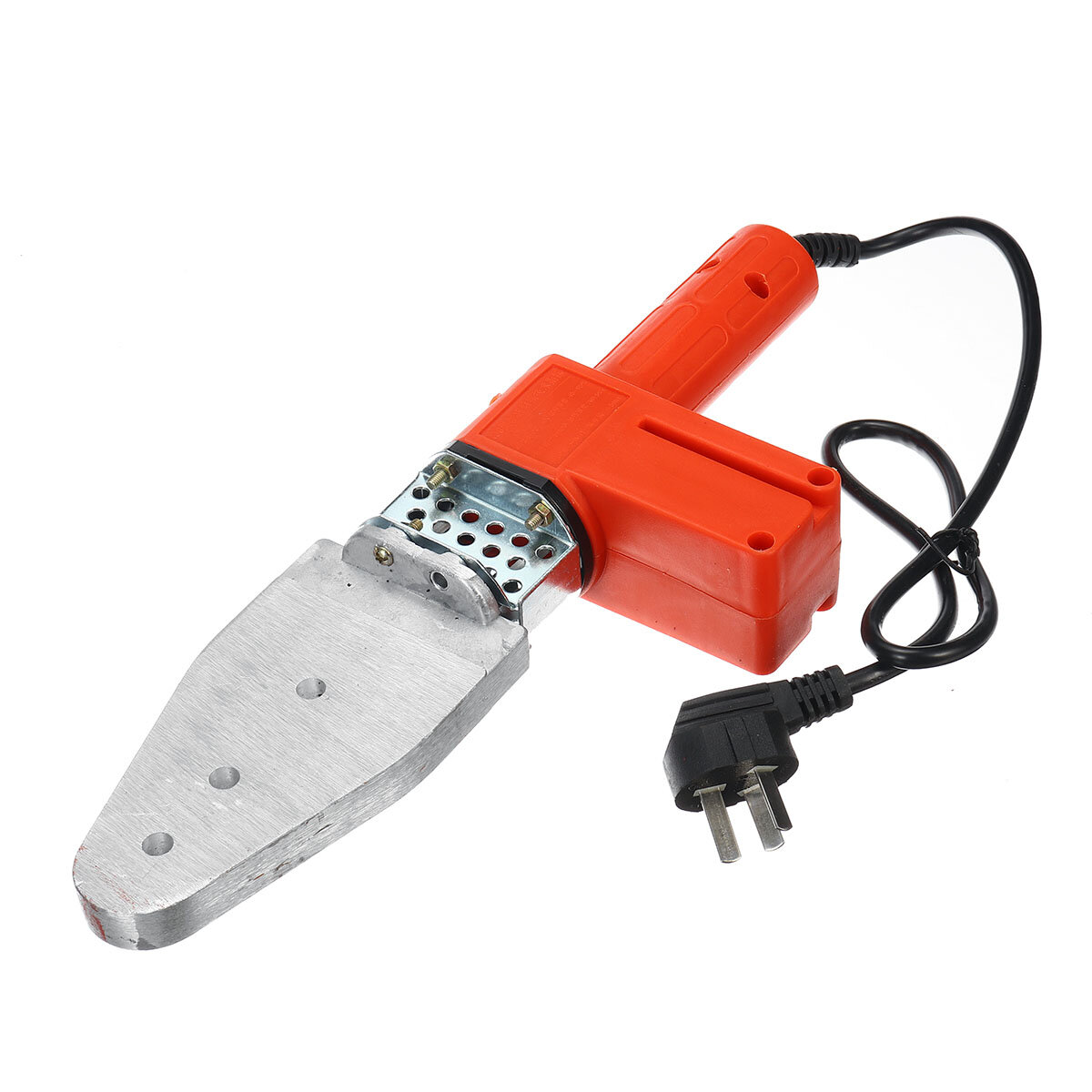

Name: Heating Pipe Welding Machine
Model: E58986
Material: Crafted from durable Aluminium Alloy
Color: Striking Red
Electroplate Type: 63mm

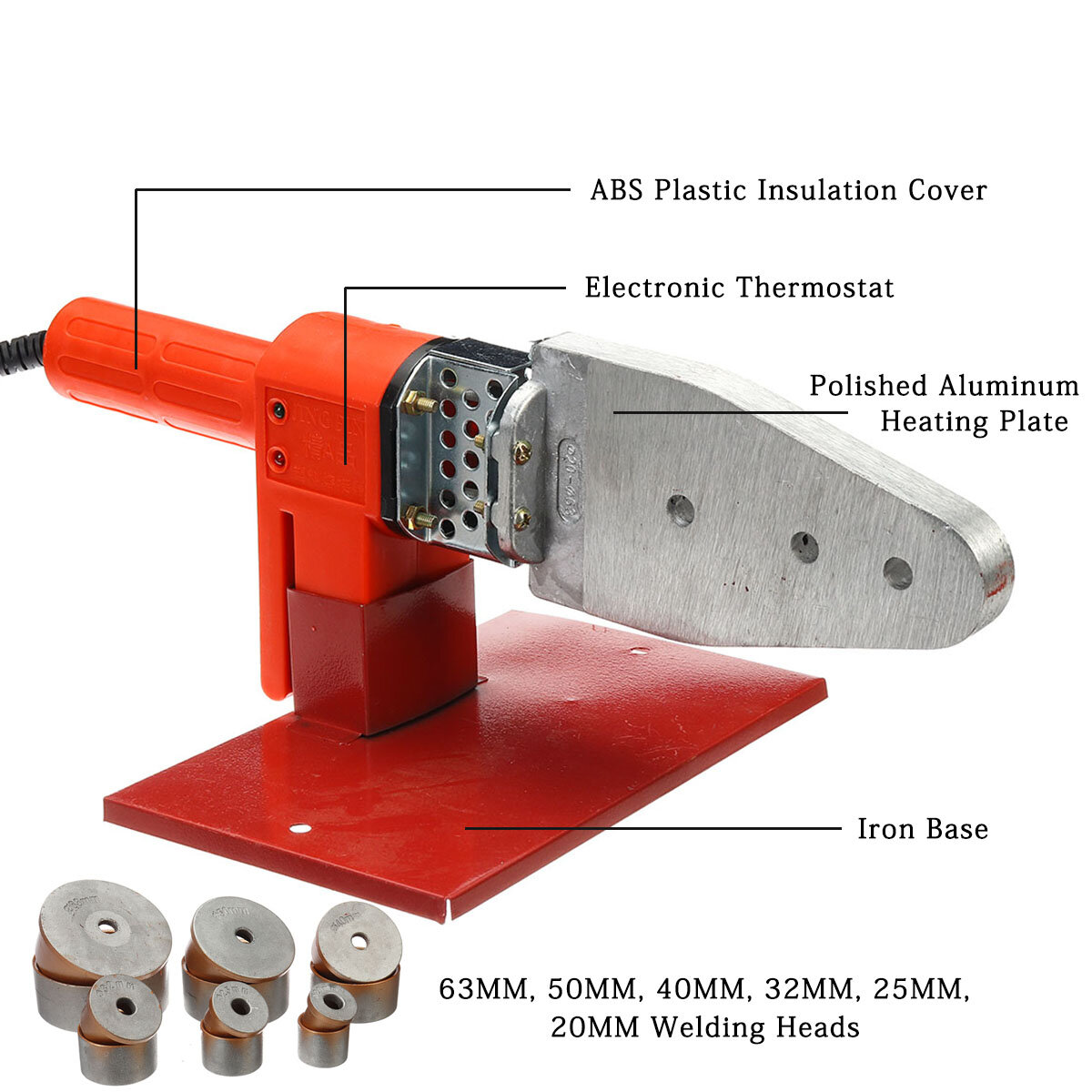

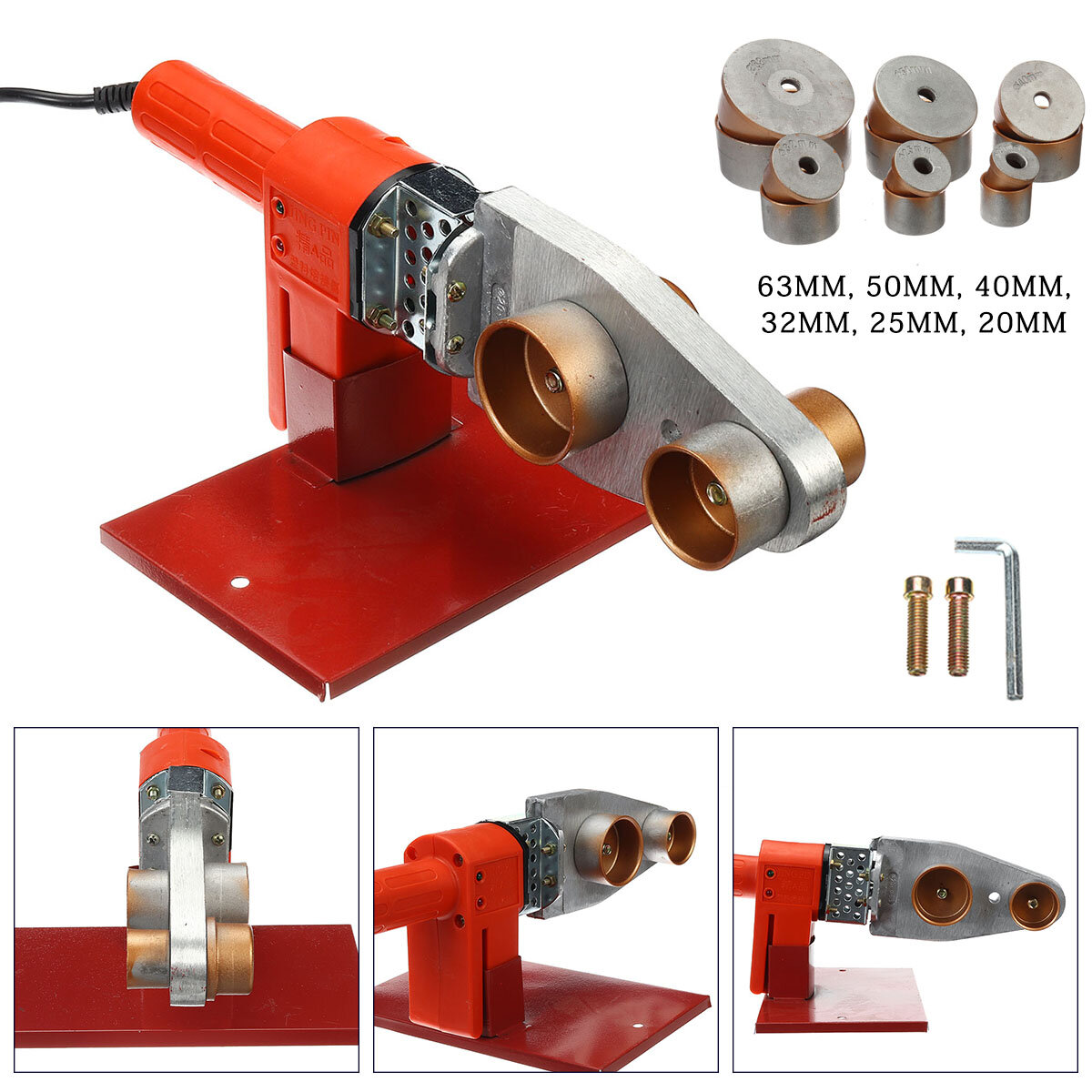

Welding Heads Diameter: 63mm, 50mm, 40mm, 32mm, 25mm, 20mm
Voltage: AC 176V~245V
Frequency: 60Hz
Power: 750W
Key Features:
– Perfect for welding PB PPR PE PP tubes.
– Built to last with long-term usage in mind.
– Non-slip handle for a comfortable and secure grip.
– An excellent addition to your pipeline construction equipment.
– Manganese steel panel for quick heat conduction.
– Thick gold paint touch head for fast heating.
How to Operate:

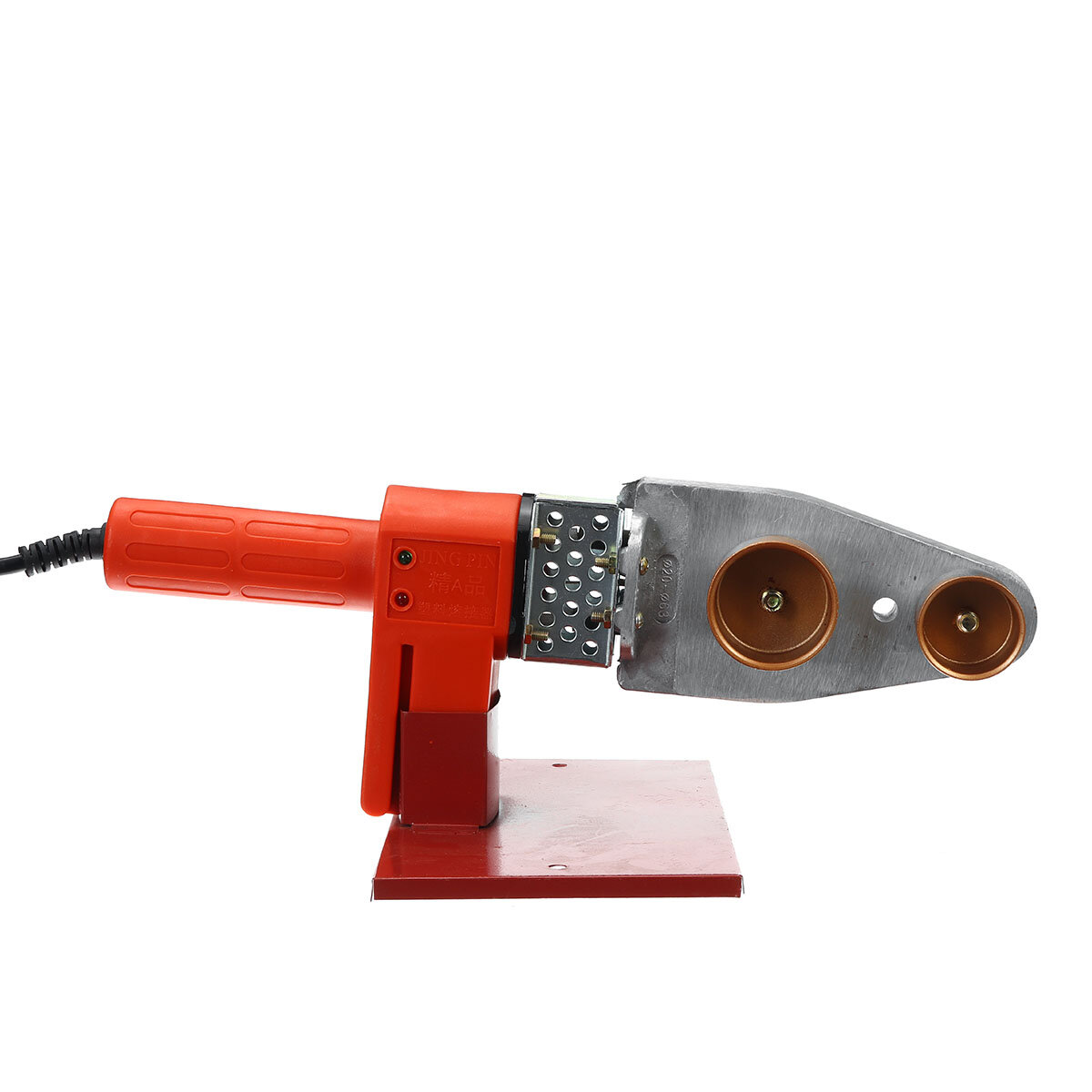

– Install the fixed fusion splicer with a heating end and place it on a rack. Attach the appropriate heating mold based on the pipe specifications and secure it with a hexagonal plate. Typically, smaller sizes are in the front section and larger ones at the rear.
– Power on the machine. The green indicator light signifies that the splicer is in automatic control state and ready for operation.
– Cut the pipe vertically using a pipe cutter. Push the pipe and fittings into the welder die without rotating. Once the heating time is reached, remove the pipes and fittings from the die simultaneously. Insert them into the required depth in a straight line quickly and without rotation to form a uniform flange at the joint.
Please Note: The actual color of the item may slightly vary from the pictures due to differences in light and screen settings.
