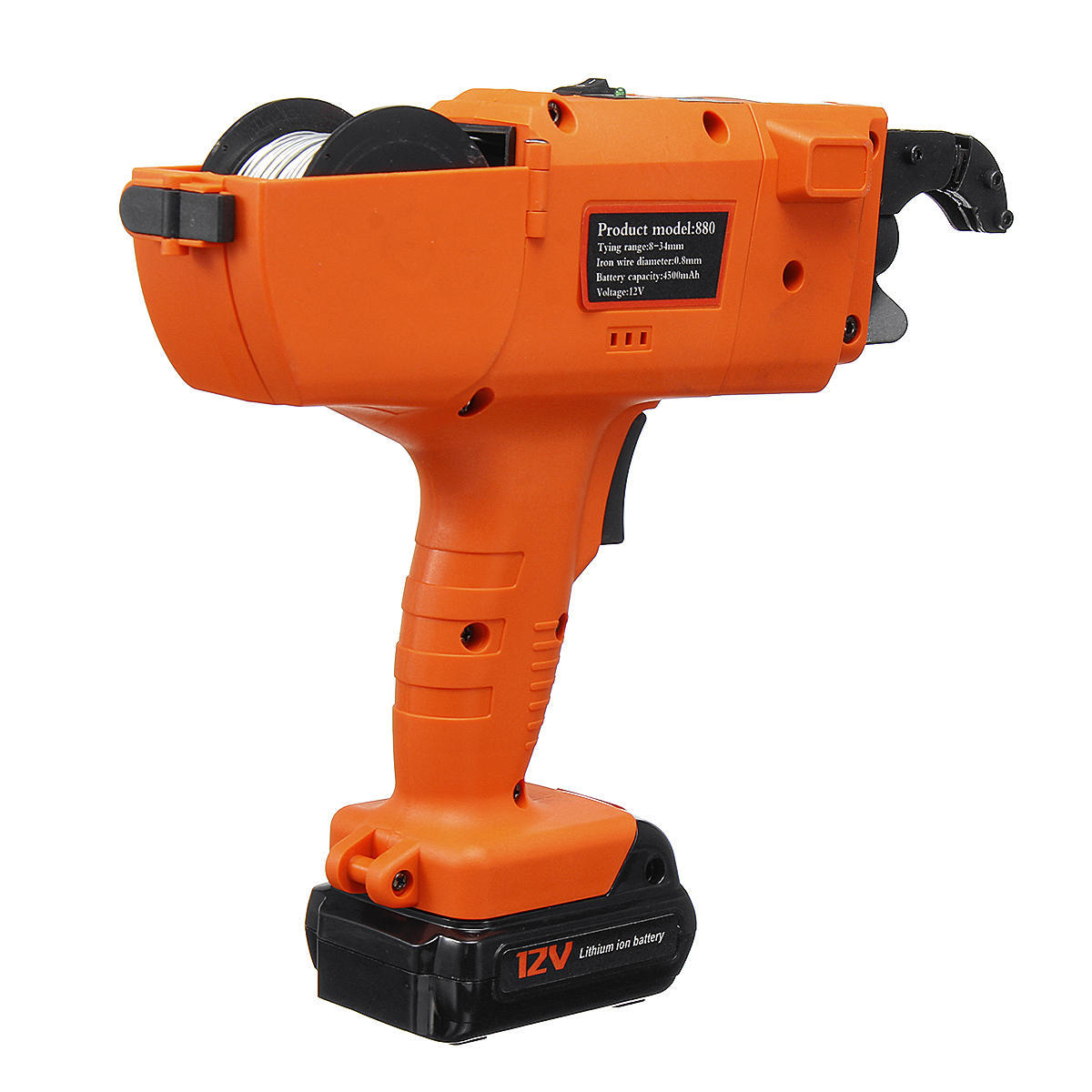

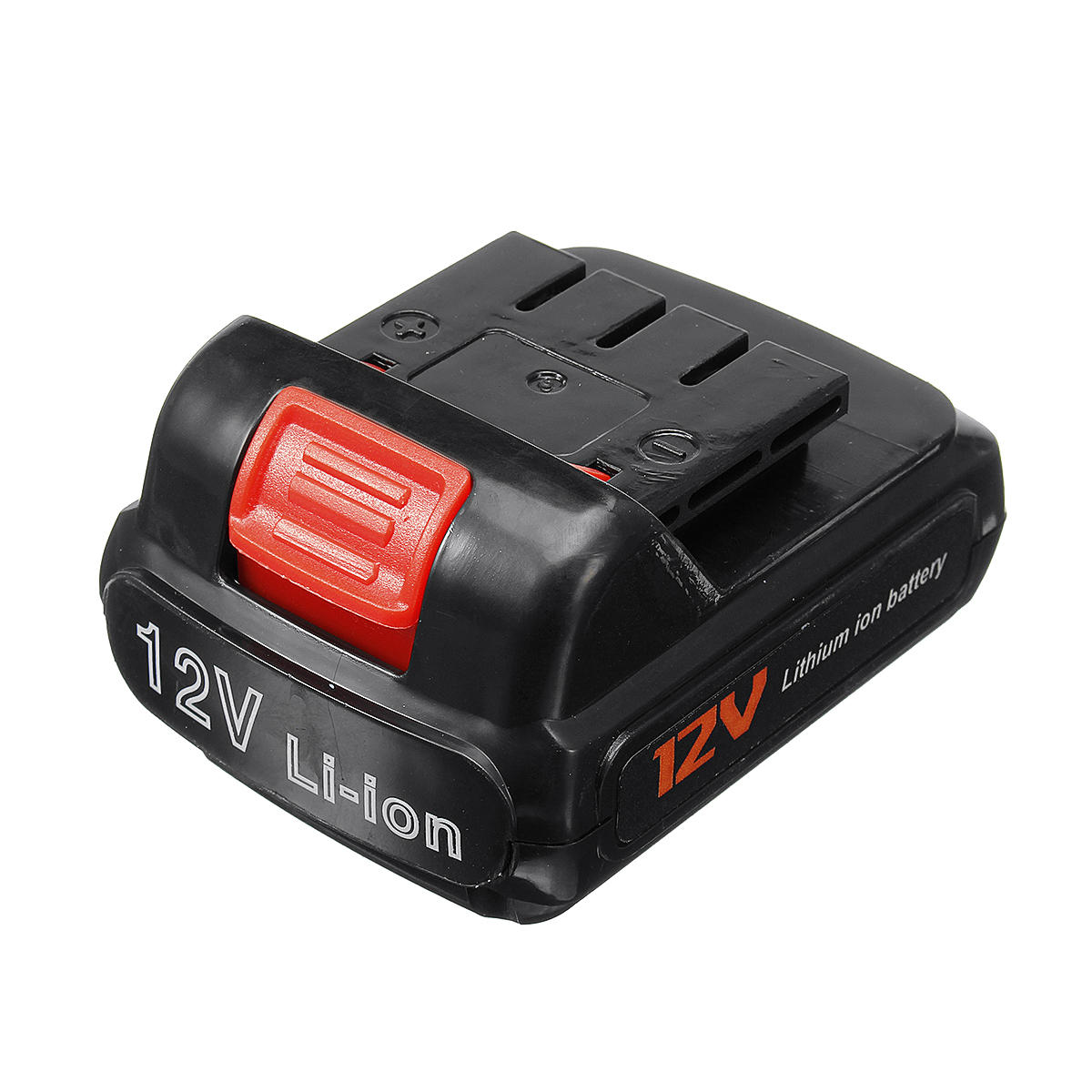

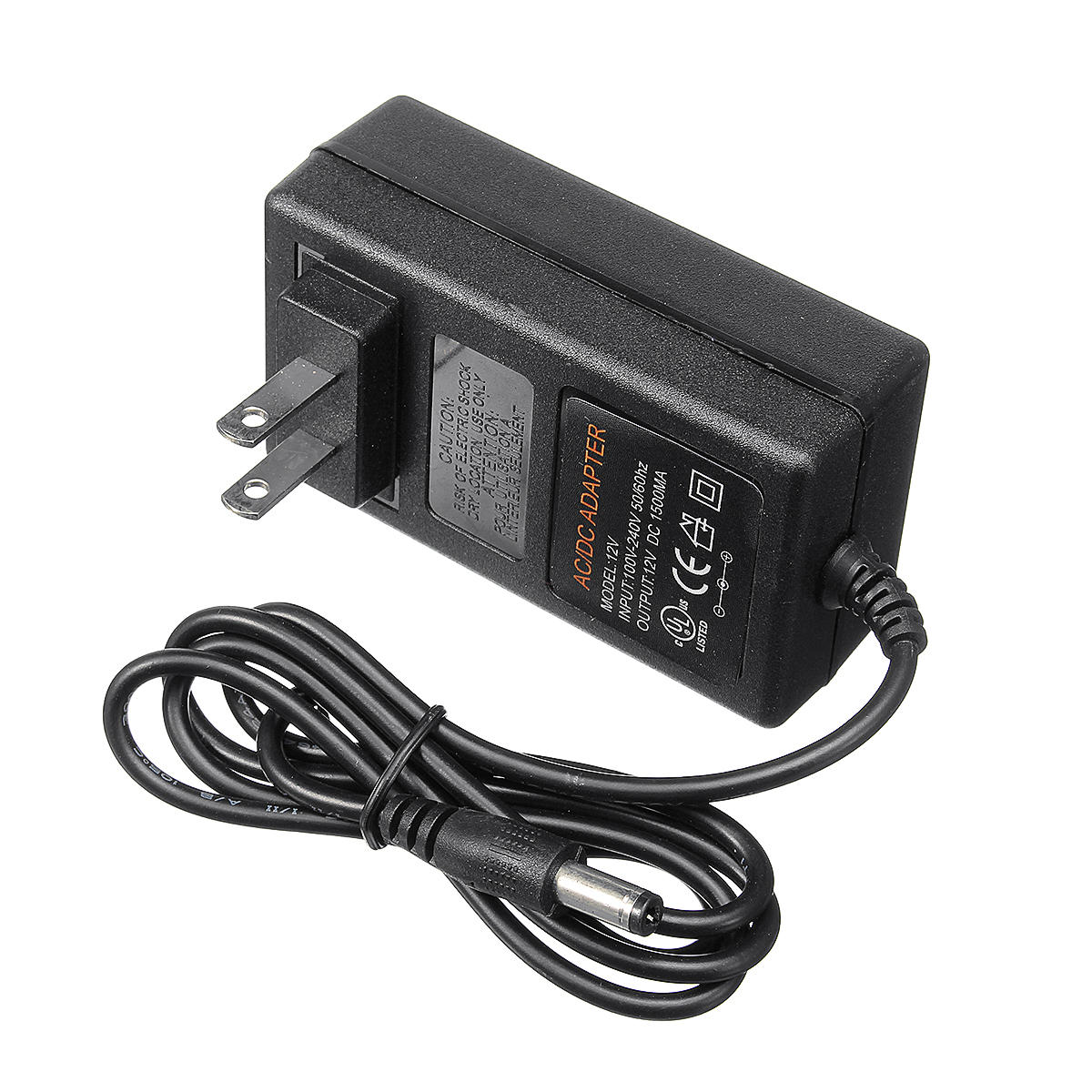

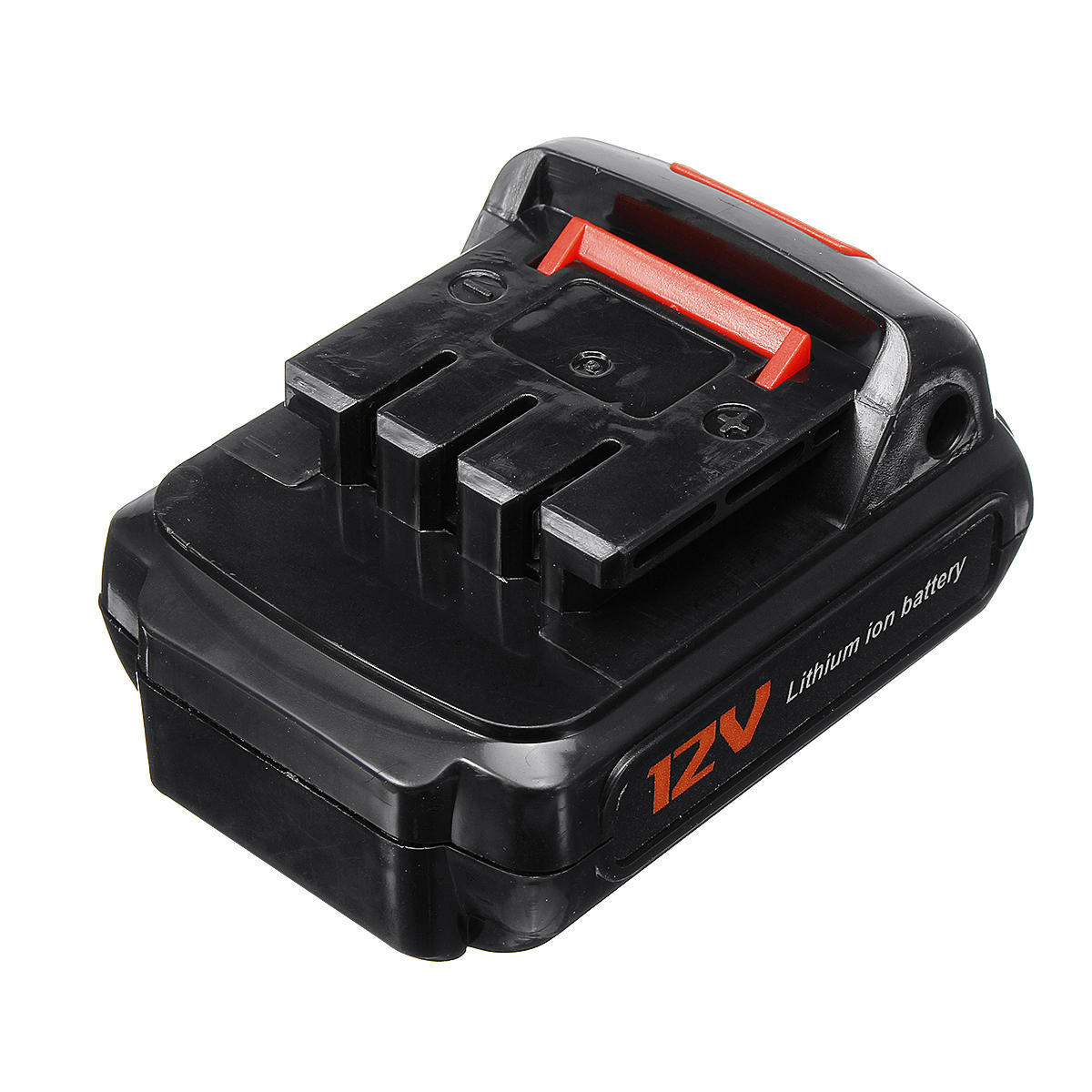

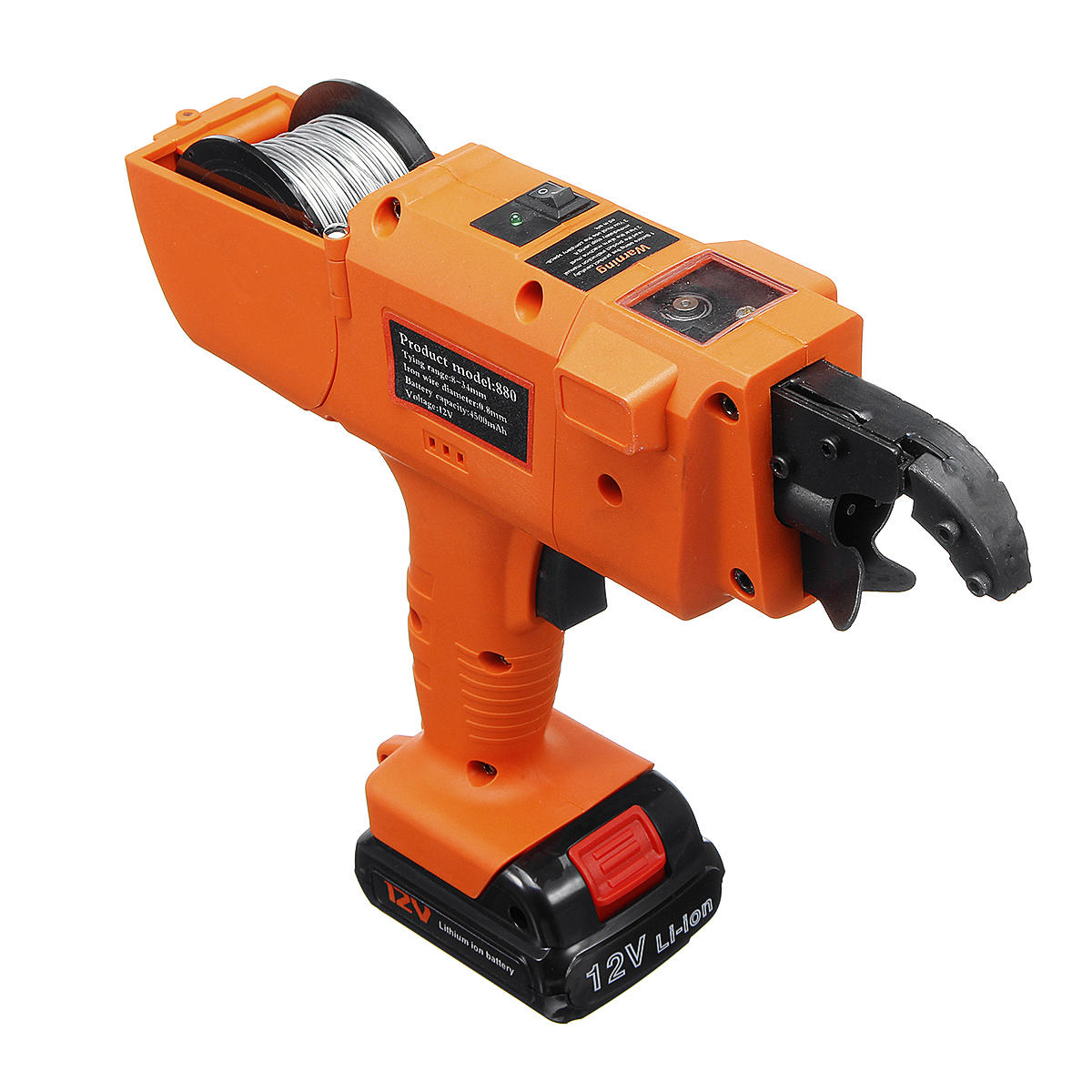

This product comes in a vibrant orange color and is made from a combination of plastic and metal. It operates on a 12V voltage and is powered by a 12V Lithium Ion Battery. The battery has a capacity of 1500 mAh and can be fully charged in just 1.5 hours. The machine uses a 0.8mm diameter tying wire that extends up to 110m or 360ft. It can make up to 1000 knots in just 0.8 seconds. The machine is suitable for steel strapping ranging from 8mm to 34mm. The dimensions of the machine are 270 x 65 x 195 mm or 10.63 x 2.56 x 7.68 inches. The adapter input is 100-240V 50/60Hz and comes with a US plug. However, we will provide a suitable adapter based on your location.

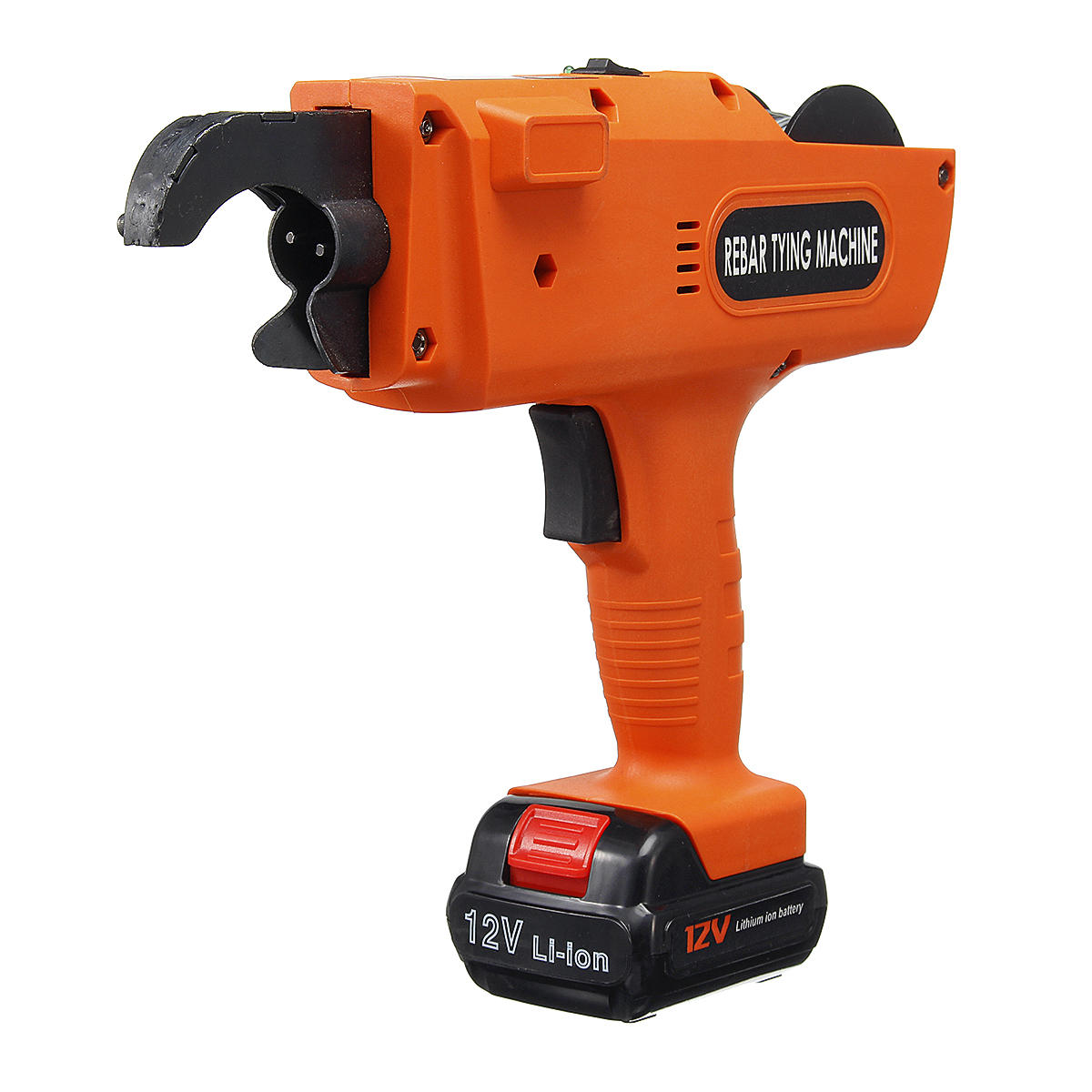

This rebar tier is compact, lightweight, and easy to handle. It is a handheld machine designed to pack rebars quickly and efficiently. It is a safe and reliable miniature motor tool. It is widely used in the building market, including civil building, floor pipe, heating floor mesh, and steel bar. The machine has a reasonable structure, advanced craft, and is simple and convenient to operate. It offers high efficiency and is easy to maintain.

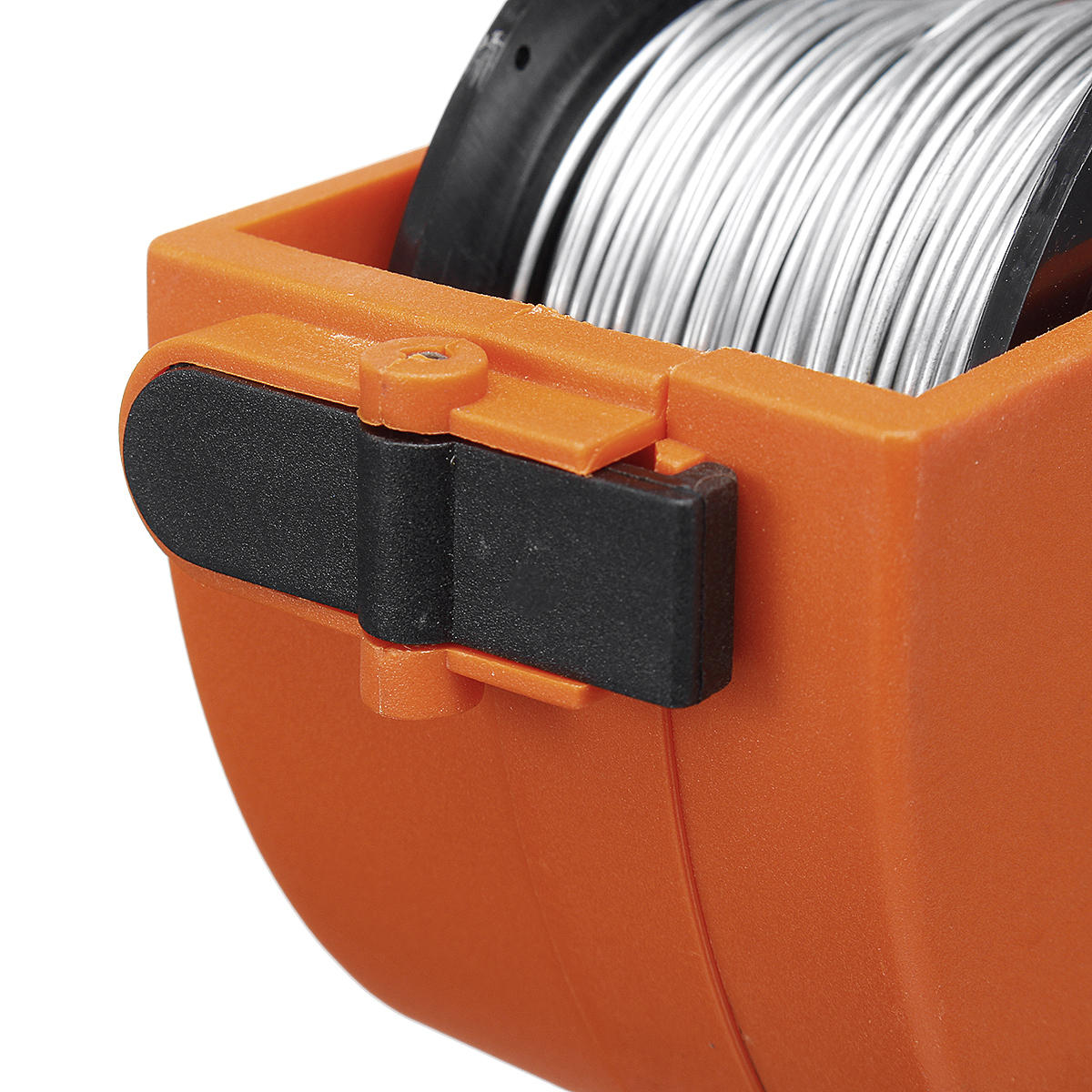

Tying Wire Installation:
The tying wire can be easily installed by opening the wire plate, removing the tying wire, tearing the packaging film, and loading the wire into the binding machine in a clockwise direction. The wire head is then inserted into the guide tap tube. The plate is then covered and the locking piece is fastened. The wire is then sent out by pressing and holding the switch. The wire plate can be removed by pressing and holding the locking piece, opening the wire plate cover plate, and pulling out the wire tray to the side.
The rebar tier’s jaws are stuck to the intersection of the steel bars at a 45-degree angle. The start switch is then pressed and the machine carries out the work. The machine is then pulled back from the steel bar intersection after automatic completion, completing the process and preparing for the next binding.
The machine should be tilted 45 degrees to the left after banding, and then tilted 45 degrees to the right for the next banding. This alternating banding process should be followed. When the machine is about to tighten, it will shake slightly. At this point, the hand holding the machine should not be too tight and can be relaxed properly.
The machine should be cleaned regularly and the wire mouth should be kept clean. The product should be placed carefully to avoid damage to parts. The batteries should not be placed together with other metal objects to avoid short circuit. The machine should not be disassembled by non-professionals to avoid damage. If you encounter an unresolved failure, please give it to a professional for repair.

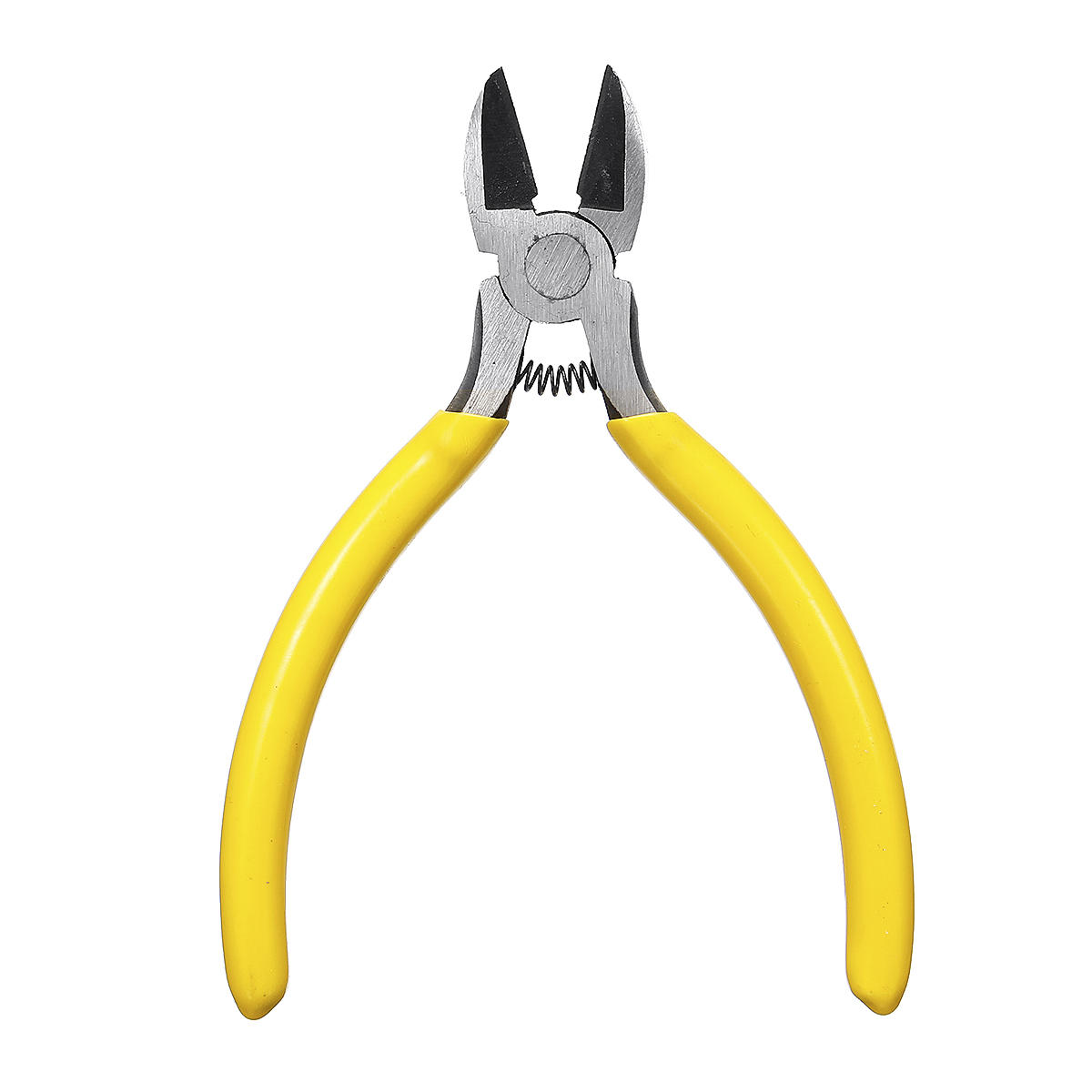

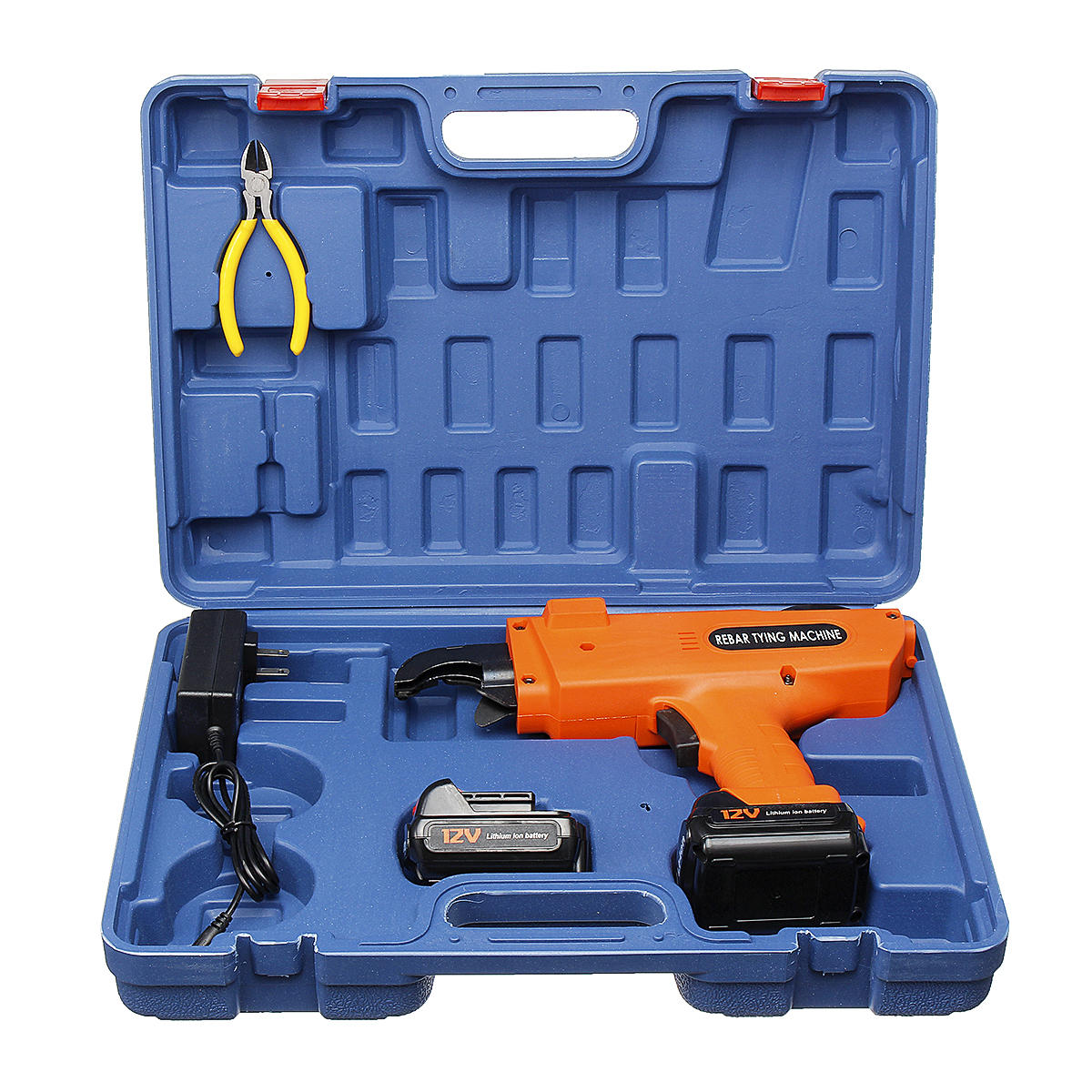

The package includes 1 Rebar Tier, 1 Pliers, 1 Adapter, 1 Tying Wire, 1 Storage Box, 1 User Manual, and 2 Lithium Ion Batteries.
