Dive into the details:
This product boasts a high-precision take-out port design that can deliver a speed of 2 screws per second. The reclaiming port is smartly equipped with a sensor that automatically moves the screws from the back to the front once the front screws are removed.
The adjustable guide rails come with gap pieces and fine-adjustable screw models. The guide rail is made of stainless steel and can be adjusted to accommodate screw types ranging from 0-5mm.
The intelligent counting panel features an electronic display function. Each time a screw is removed, the value is recorded, providing a more intuitive and convenient way to keep track of your work. The display can record up to 9999.
The all-metal supply bin is robust and durable, boasting a 500CC capacity bin. The height can be adjusted according to the size and number of screws to ensure that the screw head can be brushed effectively.
The anti-vibration foot pads are designed to significantly reduce the vibration caused by the working motor. The entire machine is crafted from high-quality metal materials, ensuring durability and longevity.

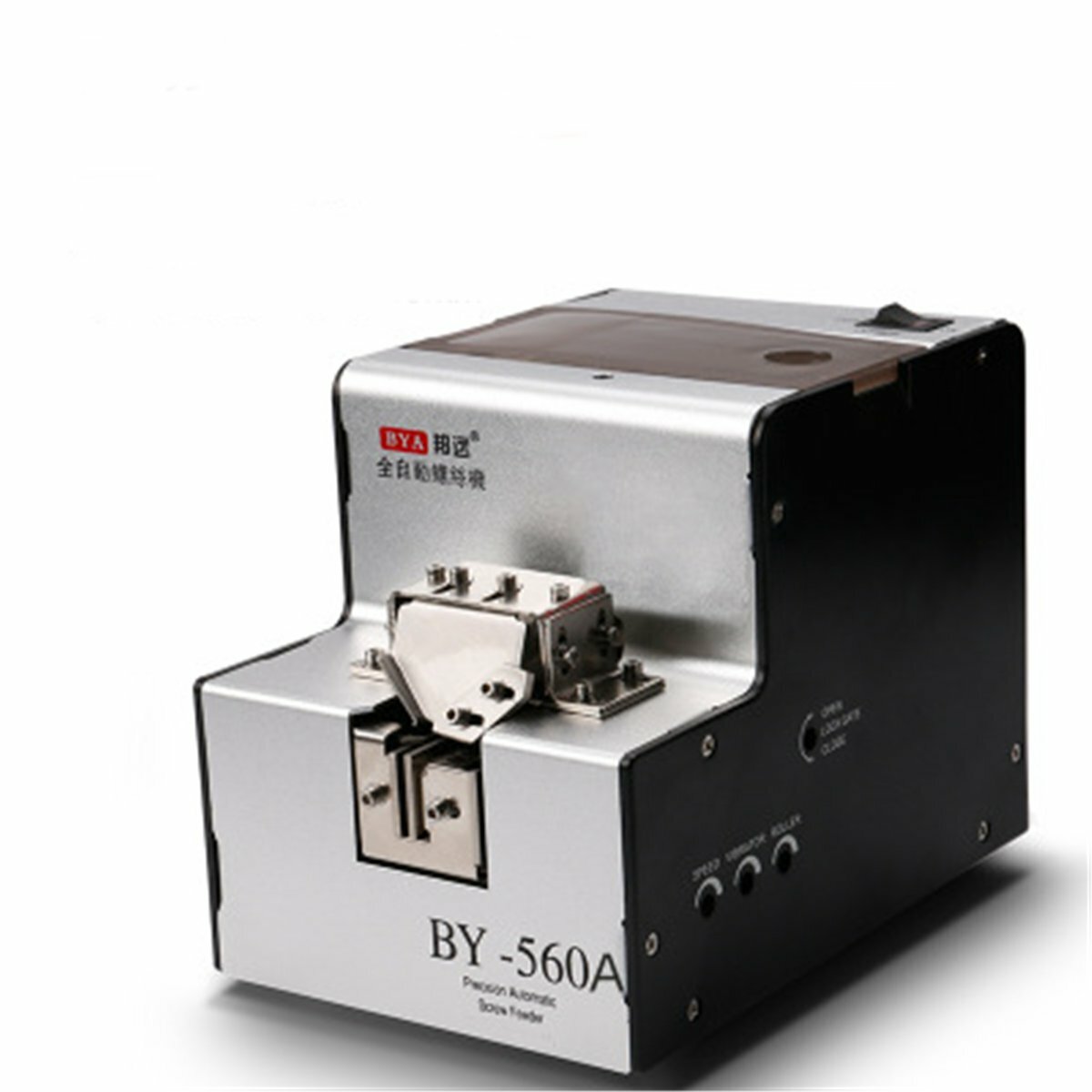

Model: BY560A / Digital Display BY560E
Power Type: AC Power
Rated Voltage: DC 24V
Rated Power: 24W
Screw Pocket Volume: 200pcs
Scope Of Application: Screw Size:0-5mm, Screw Length: Less Than 20mm
Screw Introduction Method: Adsorption Type
Applicable Screw Head Type: With Cap
Rated Voltage Range: Ac Single-Phase And DC 50V And Below
1. Allow for 0.5-5mm differences due to manual measurement.
2. The item’s color may slightly differ from the pictures due to lighting and screen differences.

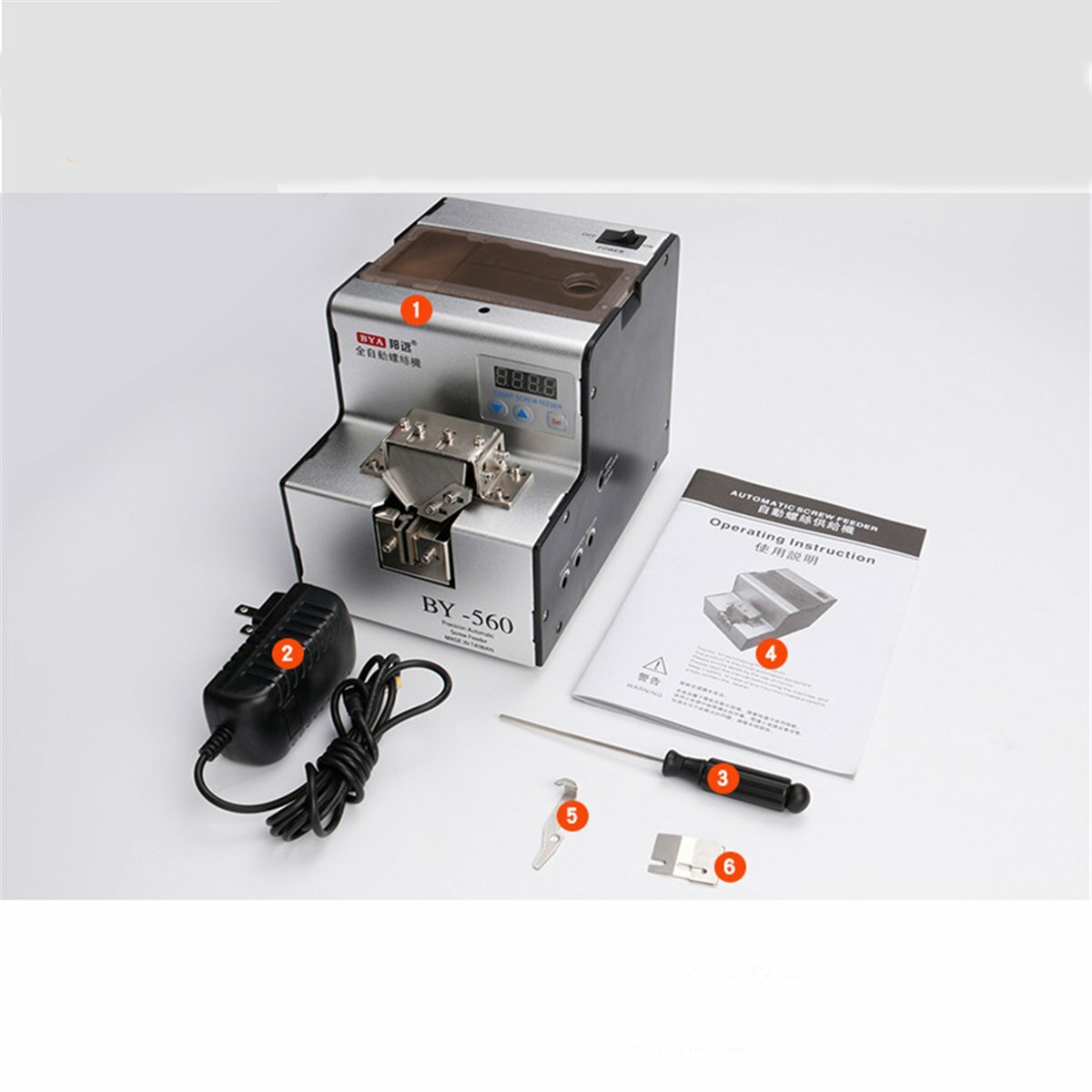

1 X Host

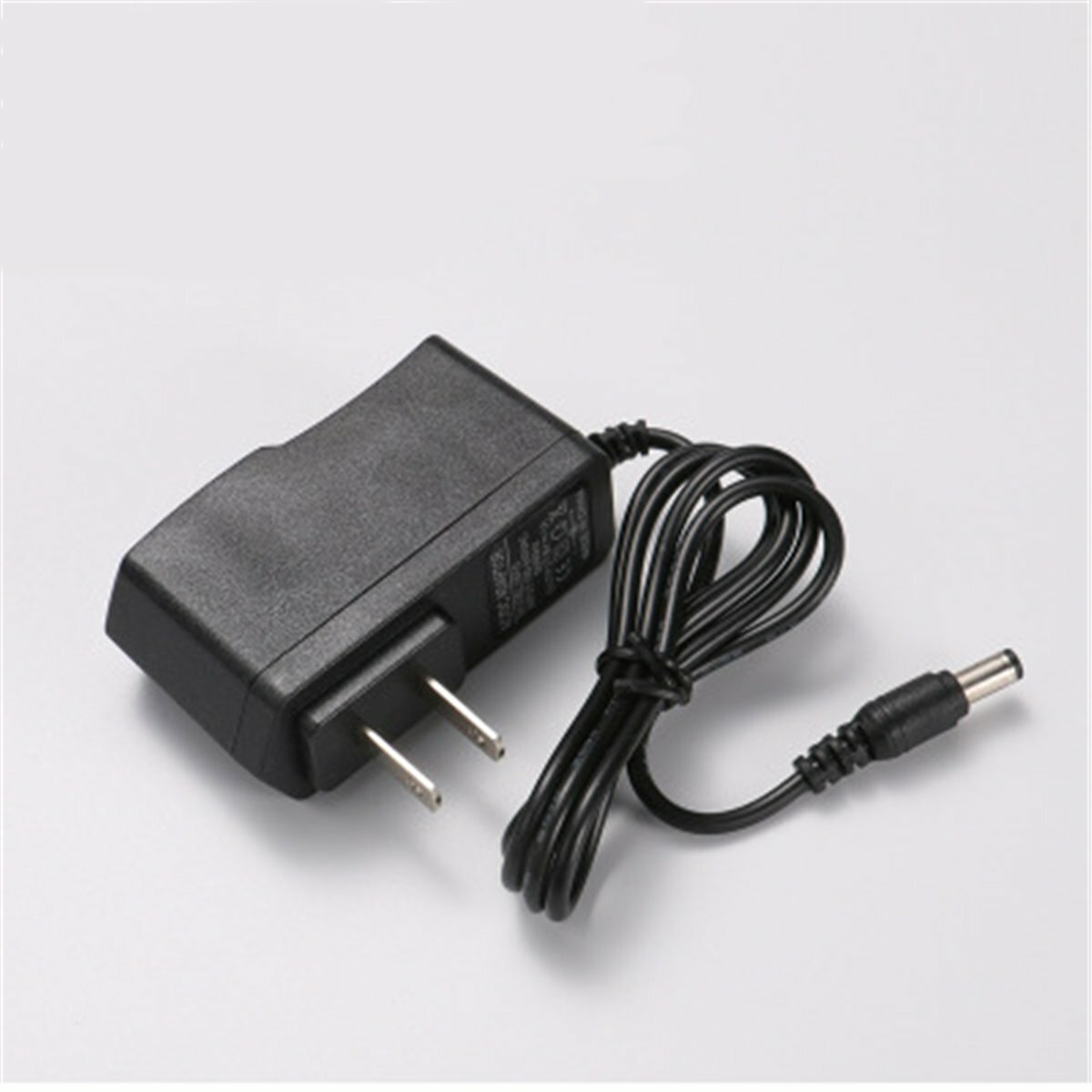

1 X Transformer
1 X H2.0 Allen Screwdriver
1 X Spare File Hook
1 X Gap Piece
1 X Manual
