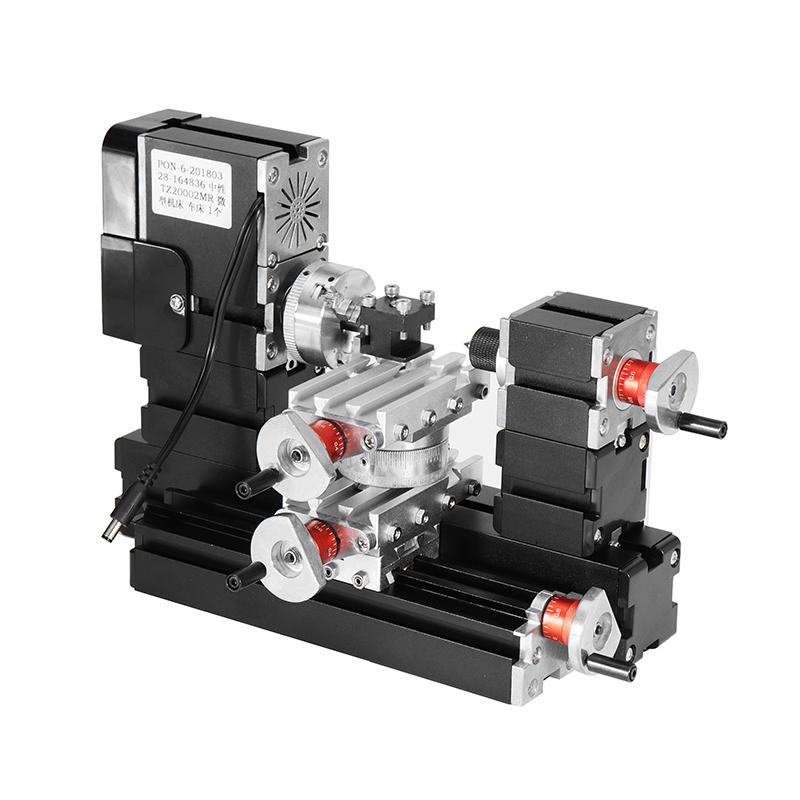

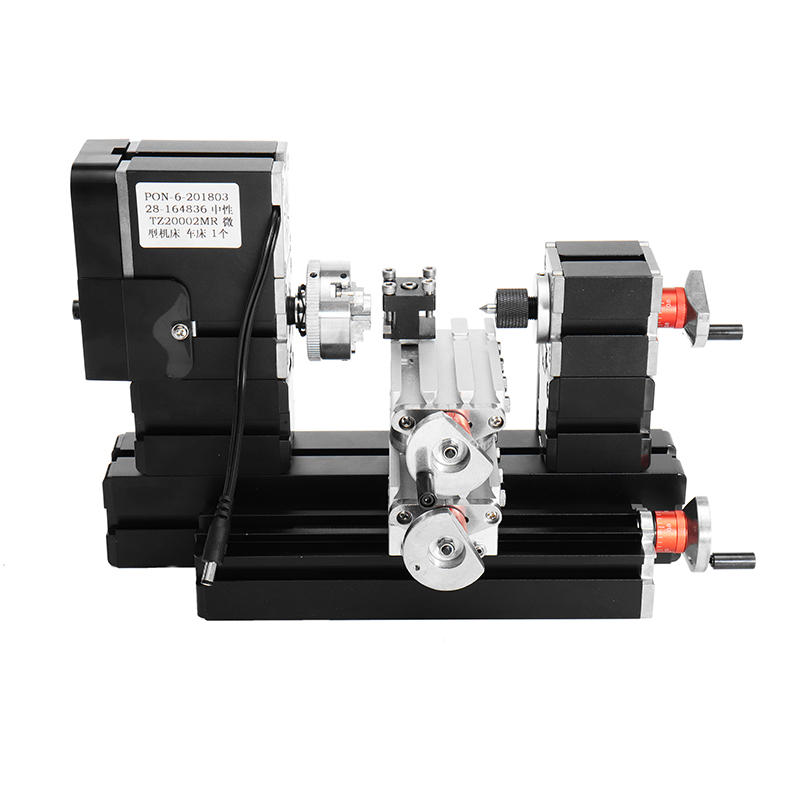

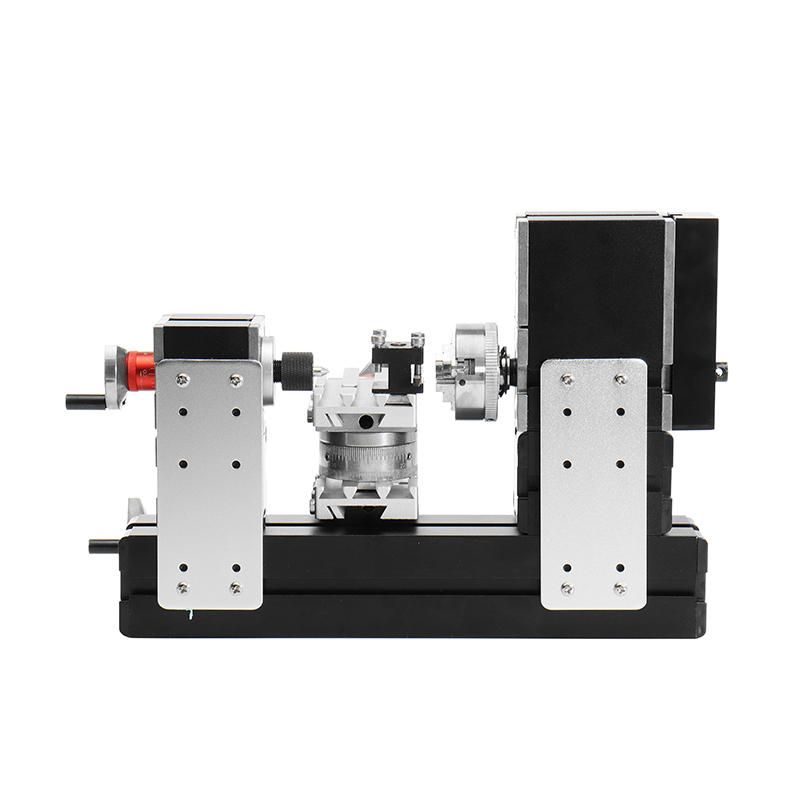

This rotating lathe is a high-performance tool with a motor speed of 12000rpm/min, with an optional choice of 20000rpm/min. It operates on a power input of 12V DC/5A/60W. The lathe offers an X-axis travel of 32mm and a Z-axis travel of 145mm, ensuring a process accuracy of 0.05mm.
The working material length is 135mm, and it can accommodate a maximum working material diameter of 100mm. The motor power is 60W, and it can work with a variety of materials such as lignin plastic, soft metals (like gold, silver, copper, aluminum), acrylic, and other plastics.
1. The motor case and headstock are jointed, and the maximum motor power is 60W, thanks to the powerful motor. The Z-axis slider can spin 180°.
2. The center height is 75mm, and the distance between centers is 135mm. When machining metal, the motor speed typically drops to 2000rpm/min.

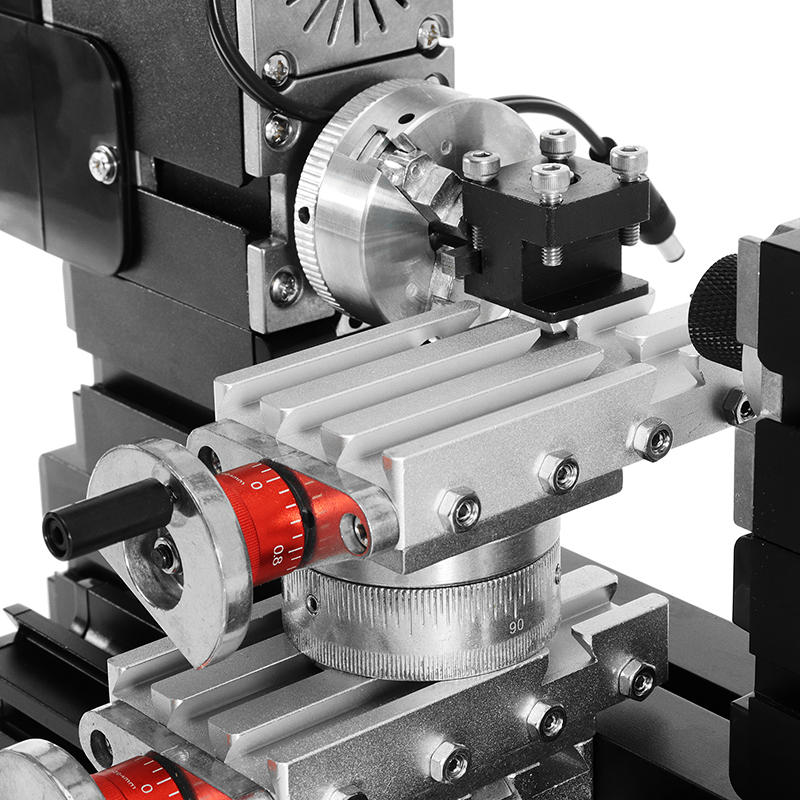

3. The main parts include the headstock, tailstock, long machine bed, big slider, small slider, motor blade, gear, connection piece, and drive belt cover. All parts are made of metal, except for the drive belt cover.
4. The lathe tool is made of high-speed steel quality material and can process soft metals, nonferrous metals, and precious metals. The diameter can be expanded to 50mm using the central block.

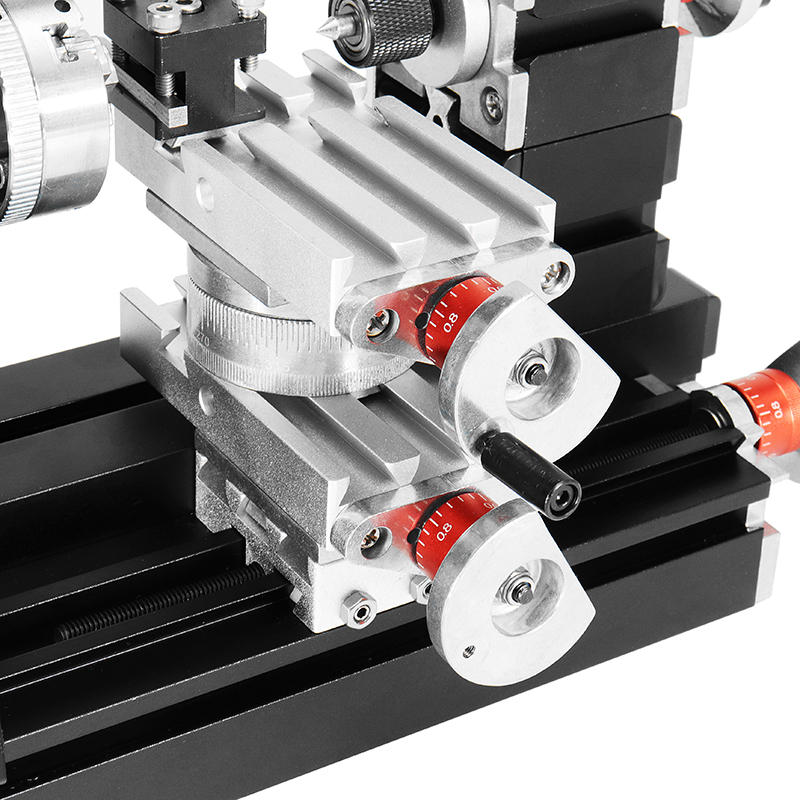

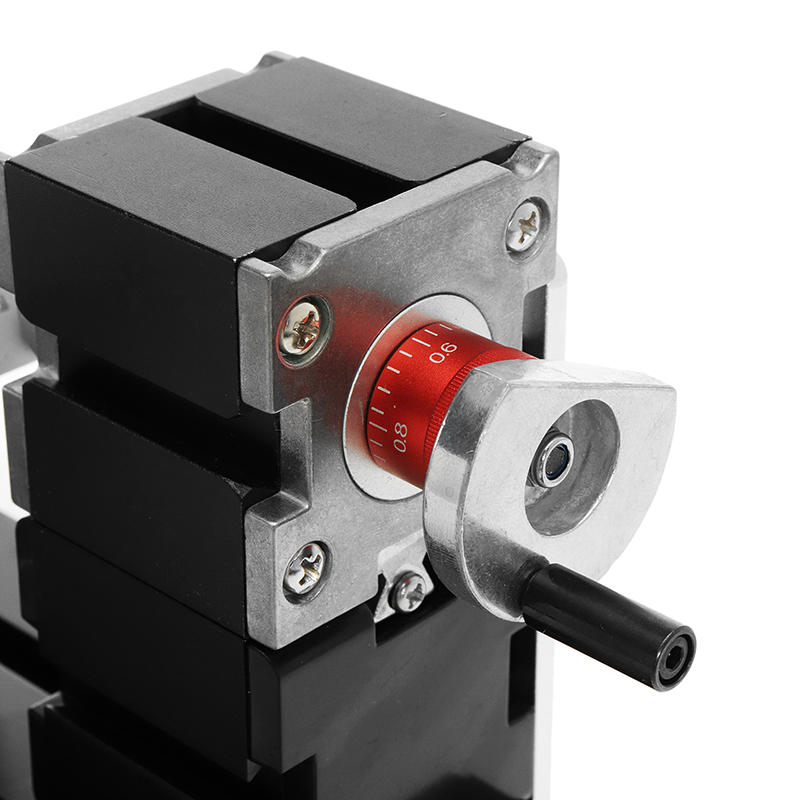

5. The handwheel features a 0.02mm scale line, enhancing precision during processing.

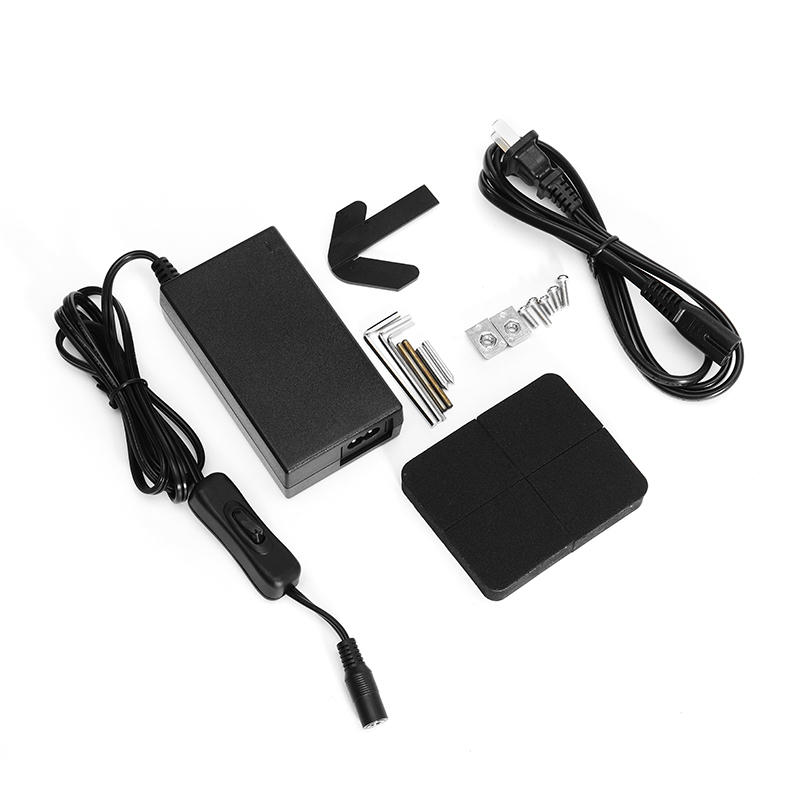

The package includes 1 Rotating Lathe.
