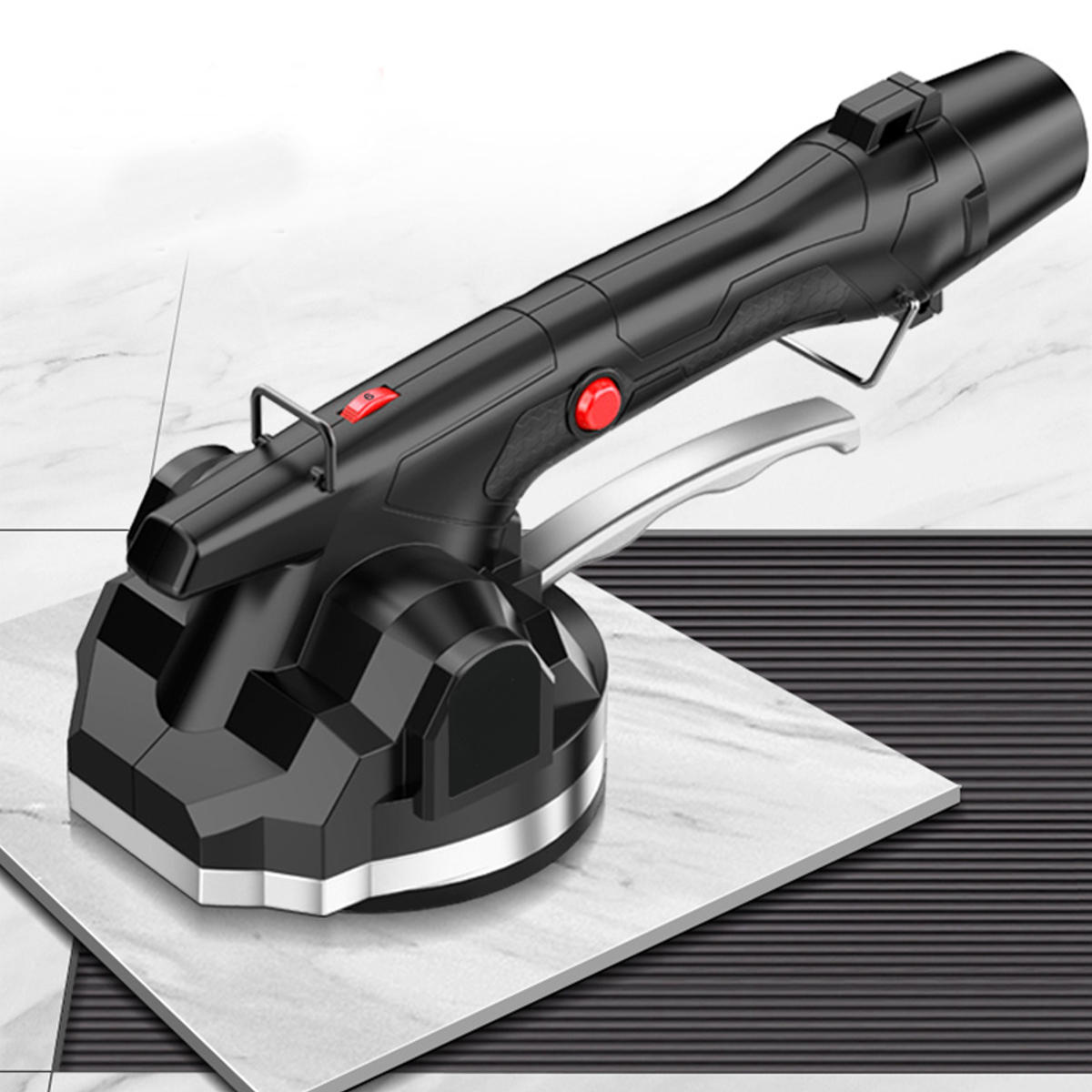

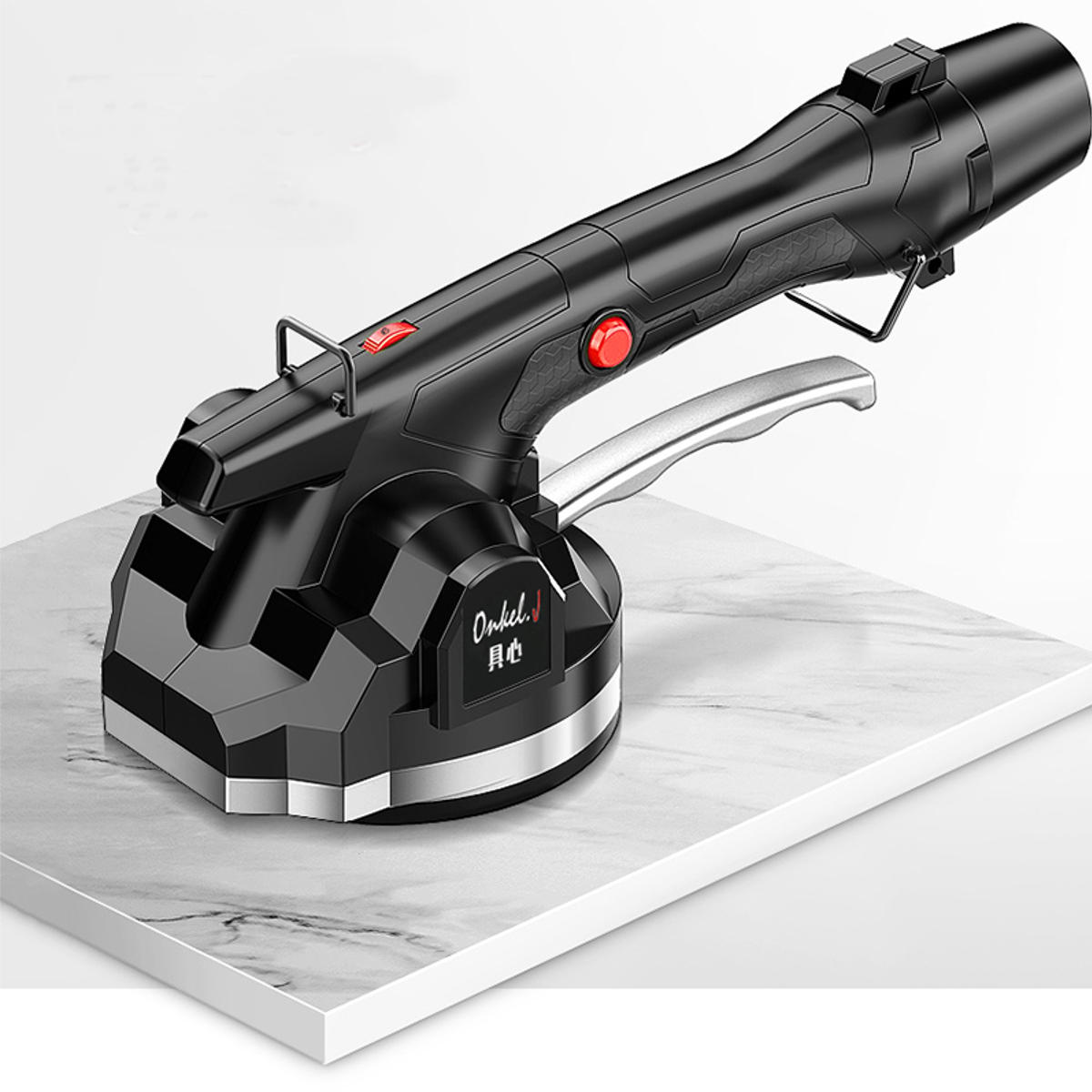

Product Name: Tile Tiling Machine
Specifications:
– Power: 600W
– Input: 220V-240V 50-60HZ
– Output: 10.8V-12.8V
– Battery capacity: 3000mAh
– Lithium battery capacitance: 12VF
– Charging time: 3H
– Working time: >15H
– Vibration frequency: 12000r/min
– Vibration Speed: 6-speed adjustable
– Adsorption strength: 100Kg
– Suction cup diameter: 12.8cm/5″
– Suitable tile: up to 100x100cm
– Product weight: 1200g
– Machine Head Material: Alloy, stainless steel
– Use: renovation team, decoration project
– Application: Tile wall tile
Features:
1. Versatile: Ideal for wall tiles and small floor tiles. This machine aids in the movement and installation of tiles, significantly enhancing work efficiency.
2. Intelligent frequency control: Allows for multi-position adjustment.
3. Super adsorption capacity: With a 100kg super strong adsorption capacity, it makes tile pasting a breeze.
4. One-button vibration, even force: You can adjust the vibration frequency according to the size of the tile, which helps correct the tile’s position and boost efficiency.
5. Long-lasting battery life: Comes with a built-in 3000mAh lithium battery that charges quickly and lasts long.
6. One-handed operation: Stable and safe operations make your job easier. It’s suitable for engineering teams and also for home use.
7. Spring lock mechanism design: Makes it convenient and effortless to use.
Instructions:
1. Please ensure the battery is fully charged before use.
2. Turn the inverter switch to the left to the minimum, then start the machine and adjust to the appropriate state as per your requirements.

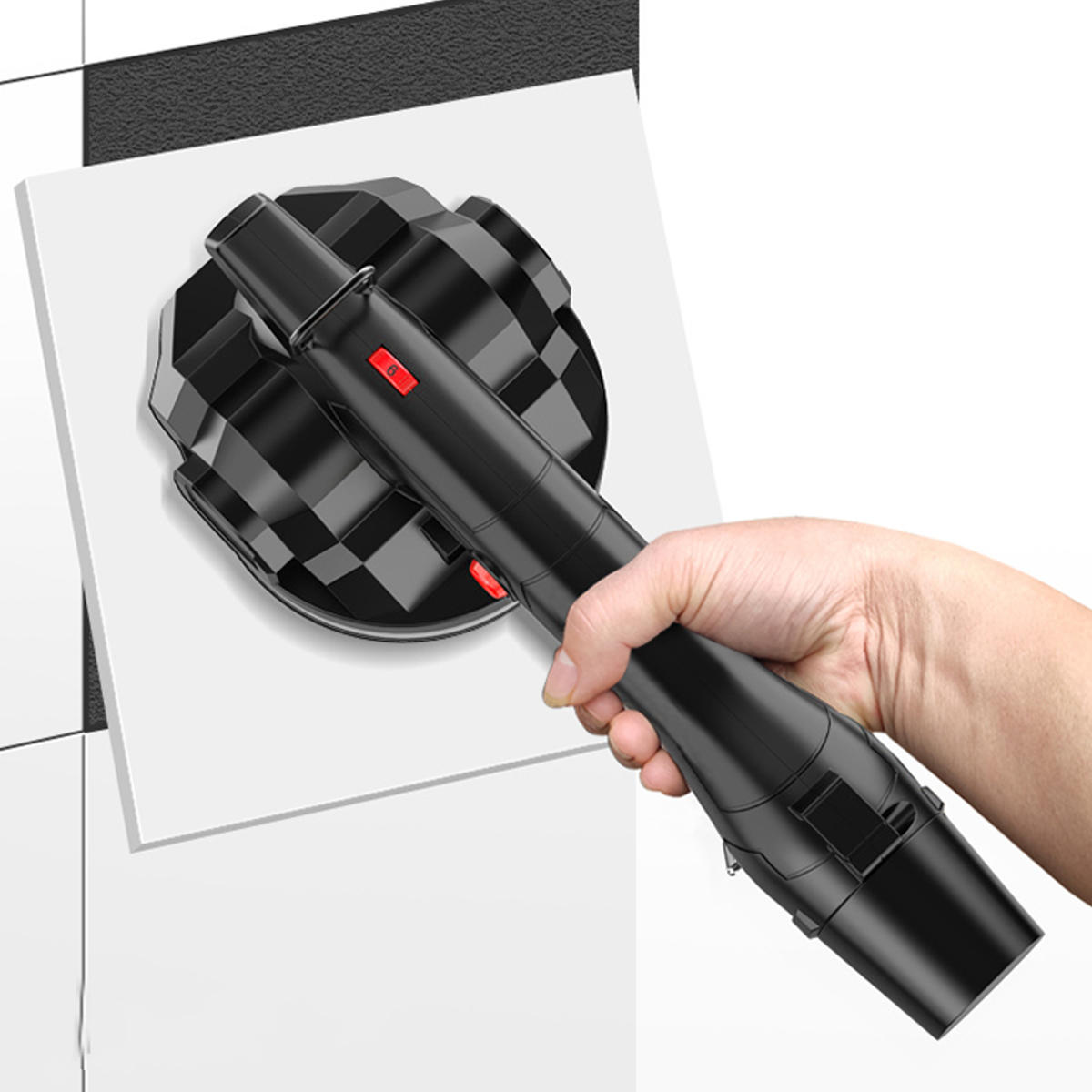

3. Place the machine on the tile to be laid, hold the suction cup and the tile. Press the switch machine to start working and instantly flatten the protruding part of the tile.
4. When working, ensure to hold the suction cup to work on the tile. Avoid letting the machine idle and do not keep pressing the switch during the pasting process for better paving results.
Charging instructions:
1. After receiving the machine, press the switch to check if the frequency switch works. If the indicator light on the machine is not bright, please charge it first before using it. When the charger is connected and charging, the charging indicator on the charger will light up.
2. This product normally takes 3 hours to charge fully, and it stops charging automatically once full. The indicator light will turn green or switch off.
3. After the product is fully charged, it can work for up to 15 hours. However, to maintain the product’s lifespan, please charge it daily during regular use.
4. This product needs to be charged once a day during normal use. If not in use, charge it at least once a month.
Package Includes:
1 x Tile Tiling Machine
2 x Batteries
1 x Charger
1 x Storage box
