Discover the efficiency of our Tile Tiling Machine, designed to make your tiling projects a breeze. This tool is perfect for installing wall tiles and small floor tiles, significantly enhancing your work efficiency.
1. Ideal for wall and small floor tiles: This tool is designed to assist in the movement and installation of floor and wall tiles, significantly improving work efficiency.
2. Intelligent frequency control: This feature allows for multi-position adjustment.
3. Superb adsorption capacity: With a 100kg super strong adsorption capacity, tiling becomes a breeze.
4. One-button vibration, even force: Adjust the vibration frequency according to the size of the tile. With 6-speed adjustability, you can correct the position of the tile and improve efficiency.
5. Long-lasting battery life: The built-in 2500mAh lithium battery ensures fast charging and long-lasting battery life.
6. One-handed operation: Stable and safe operations make your job easier. This tool is suitable for both professional engineering teams and home use.

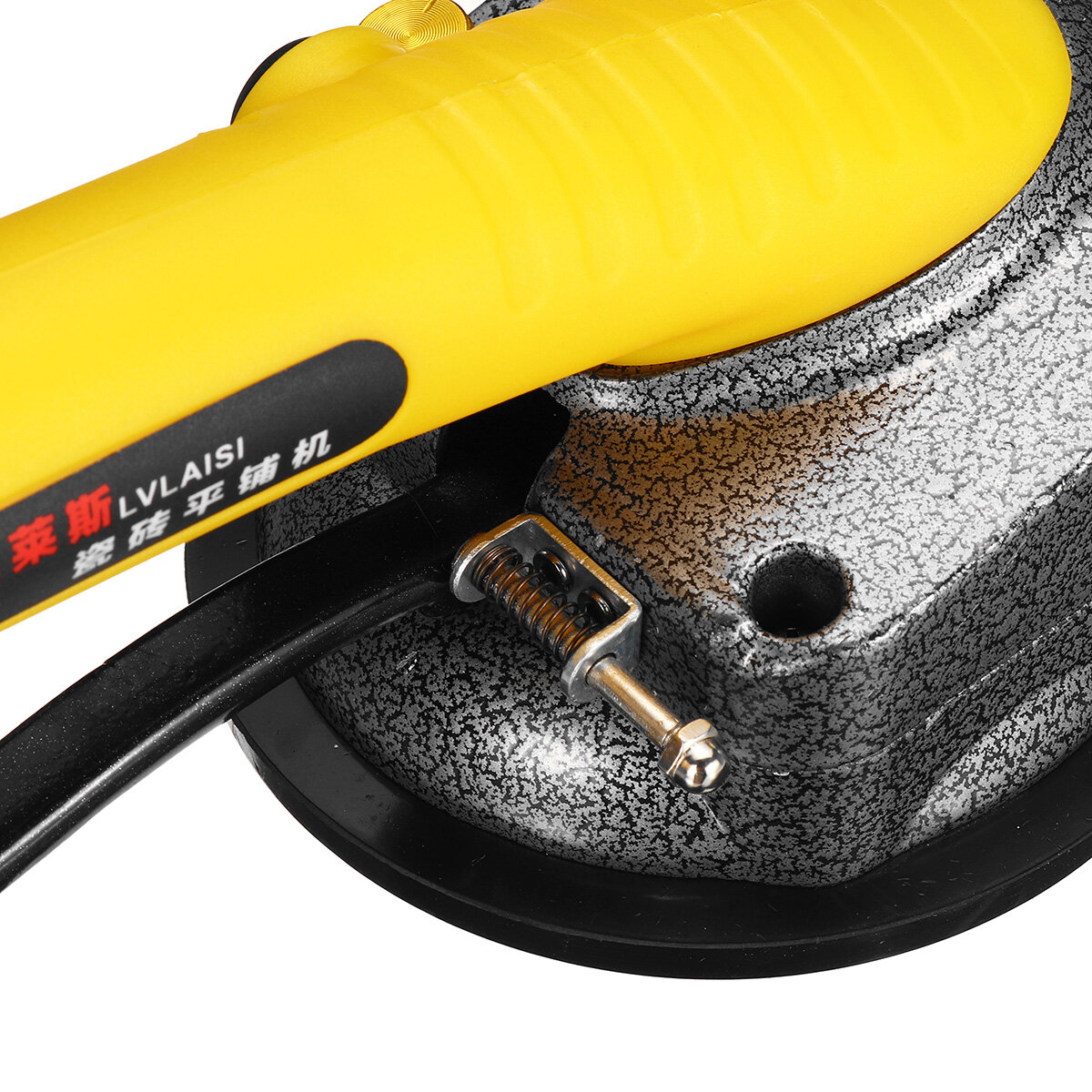

7. Spring lock mechanism design: This feature makes operation convenient and effortless.
Input: 110V/240V 50-60HZ

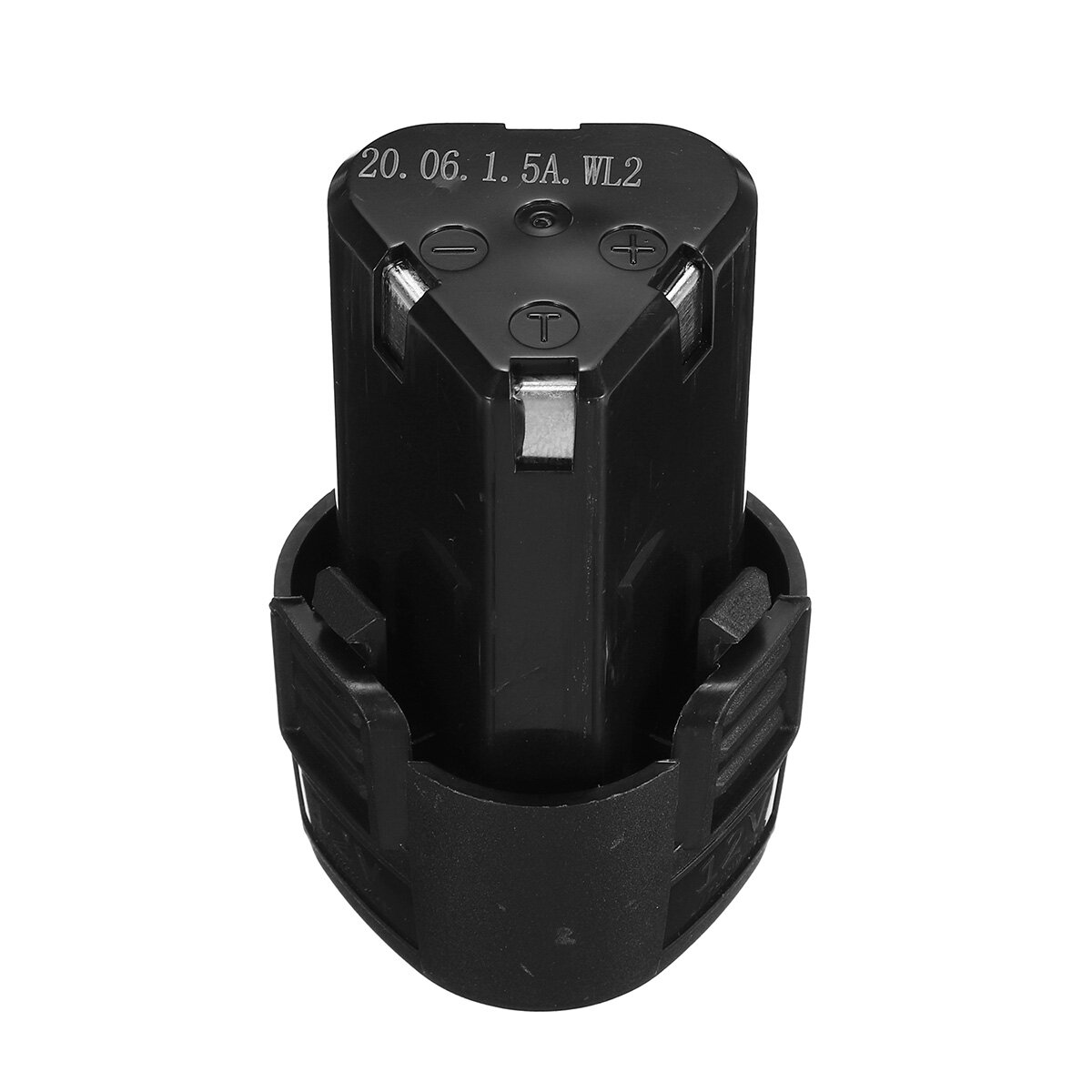

Battery capacity: 2500mAh
Lithium battery capacitance: 12VF
Charging time: 1-2H
Working time: ＞8H
Vibration frequency: 12000r/min
Adsorption strength: 100Kg
Suction cup diameter: 12cm/4.7″
Suitable tile: 800x800mm
Product size: 12x32cm/4.7″x12.6″
Packing size: 33x20x13cm/13″x7.9″x5.1″
Product weight: 1800g
Machine Head Material: Aluminum-magnesium alloy, stainless steel
Use: Renovation team, decoration project
Application: Tile wall tile

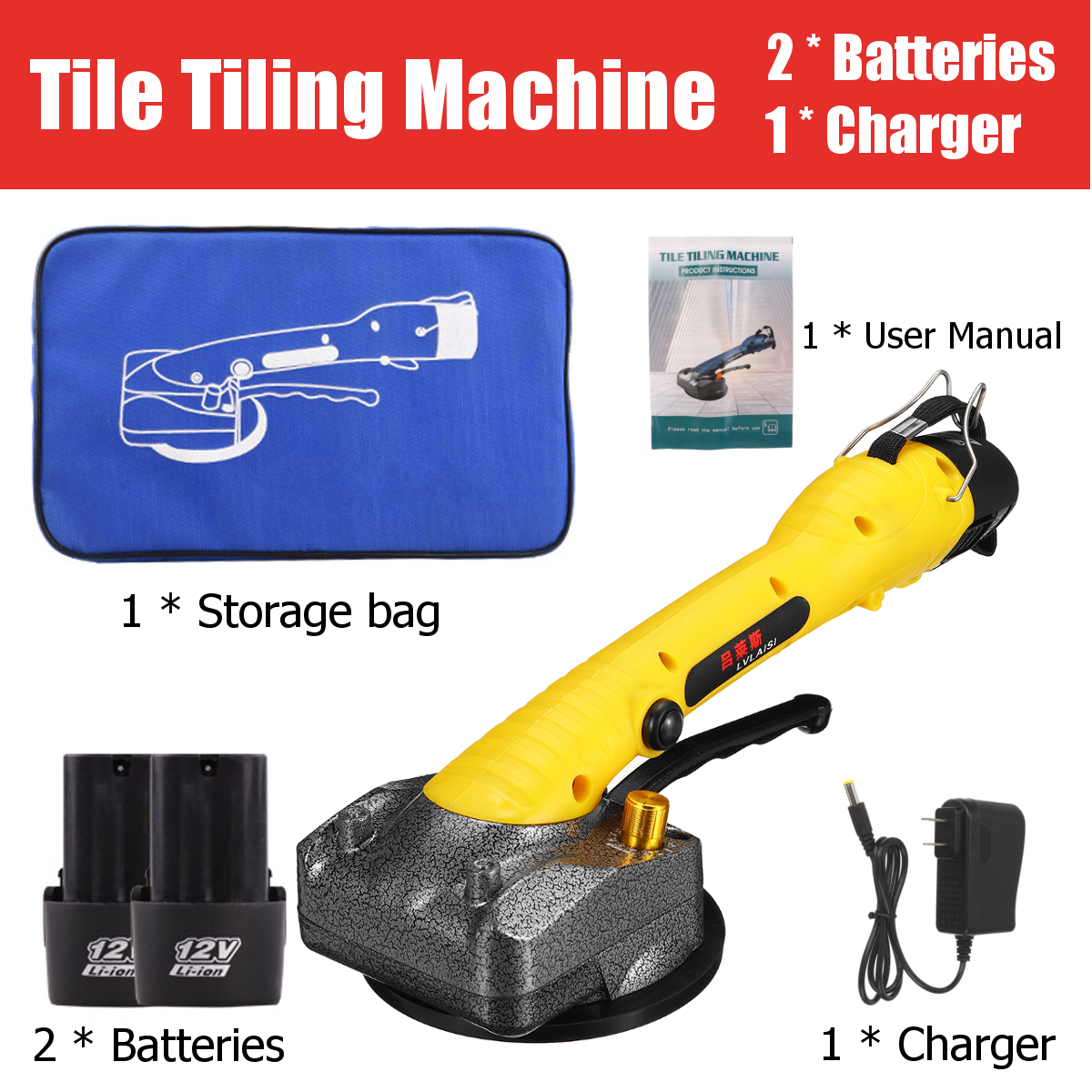

1 x Tile Tiling Machine
2 x Batteries
1 x Charger
1 x Storage bag
1 x User Manual
1. Please ensure the battery is fully charged before use.
2. Turn the inverter switch to the left to the minimum, then start the machine and adjust to the appropriate state according to your requirements.
3. Place the machine on the tile to be laid, hold the suction cup and the tile. Press the switch machine to start working and instantly flatten the protruding part of the tile.
4. When working, ensure to hold the suction cup to work on the tile. Do not let the machine idle and do not keep pressing the switch during the paste process. Maintaining a rhythm is more conducive to paving.

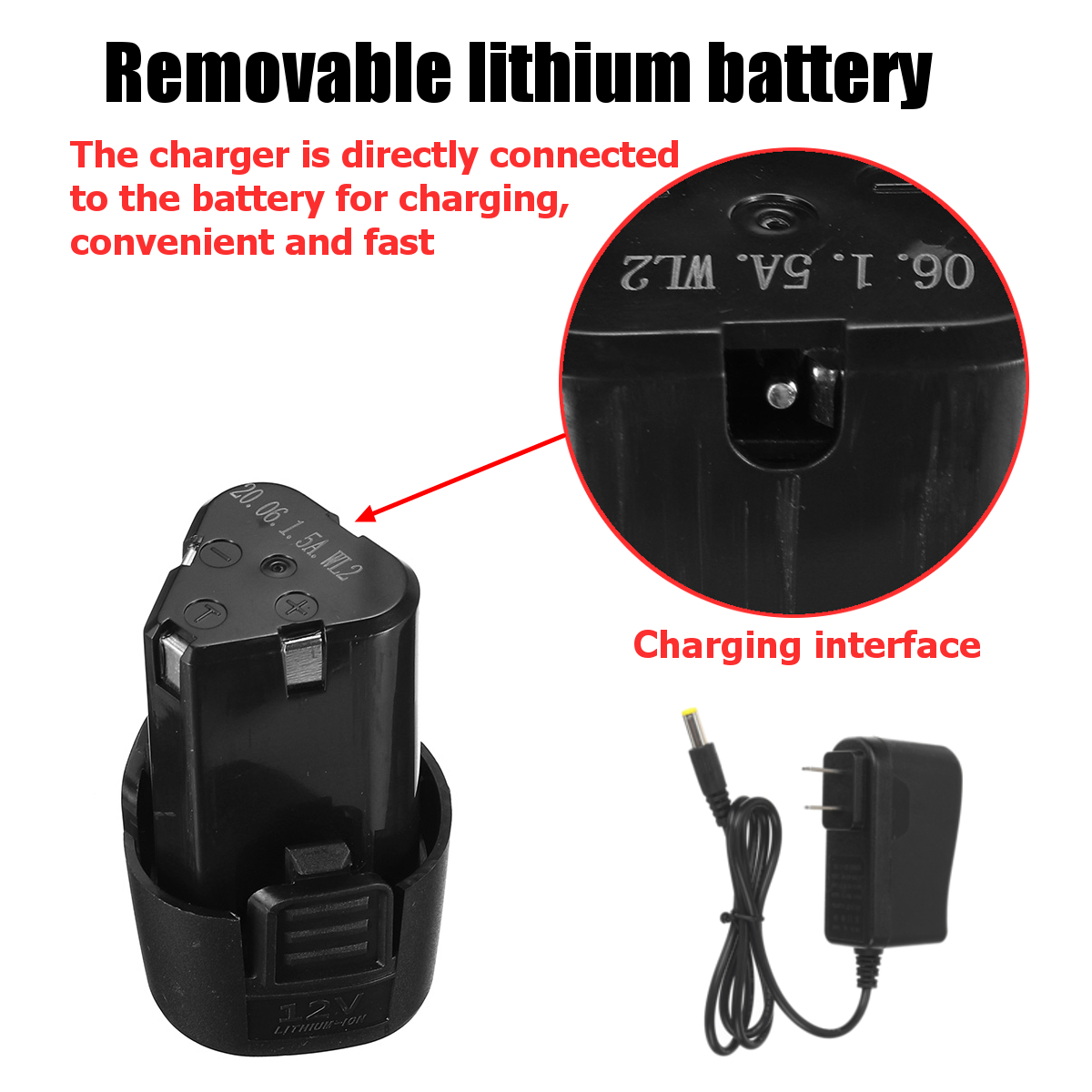

1. After receiving the machine, press the switch to check if the frequency switch works. If the indicator light on the machine is not bright, please charge it first before using it. When the charger is connected and charging, the charging indicator on the charger will light up.
2. This product normally charges for 3-4 hours, with an automatic stop when full. The indicator light will turn green or not lit.
3. After the product is fully charged, it can work for more than 8 hours. However, to maintain the product’s lifespan, please charge it daily during normal use.
4. When using this product normally, it needs to be charged once a day. If not in use, charge it at least once a month.
