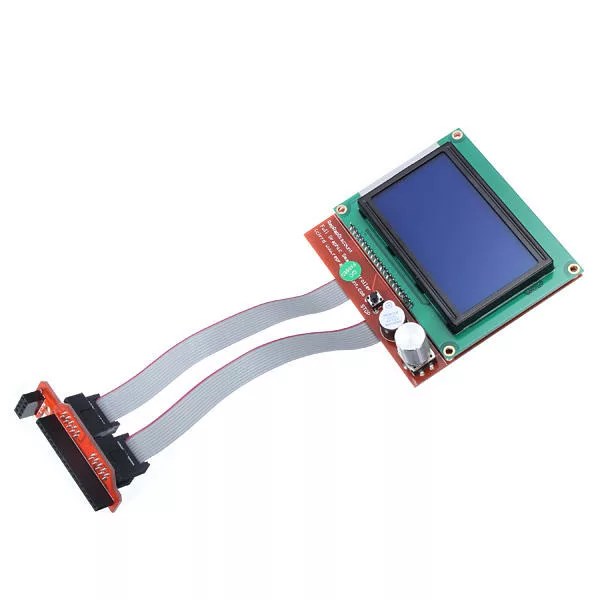

Product Description: 3D Printer RAMPS 1.4 LCD12864 Intelligent Controller LCD Control Board
This intelligent control board features a large 12864LCD screen and integrates an SD card reader at the back. Once the file is sliced and stored into the SD card, the user can select the corresponding files on the LCD and the printing process can commence. The board also features an encoder that allows for parameter adjustments and file selection for print.
This RAMPS 1.4 LCD12864 Controller can be readily connected via a Plug-and-Play interface, but it may require firmware modifications for compatibility.
Dimensions are as follows:
- The module measures 9.3 x 8.7 cm (L x W)
- The screen is approximately 3 inches
- The cable measures 21 x 1.3 cm (L x W)
- The L-type adapter length is 6.2 cm
Notably, this controller supports SD card offline printing. However, the package does not include the SD card.
Included in the package is 1 RAMPS LCD12864 controller which comes with an L-type adapter and an FC flat cable.
