Get ready to delve into the world of convenience with our unique, programmable timer! Click here to explore the user manual in detail.
Here are the key functions and features:
- Display of Current Time
- Programmable Timer for Seven Days
- Lock Function
Let’s get to know this timer better:

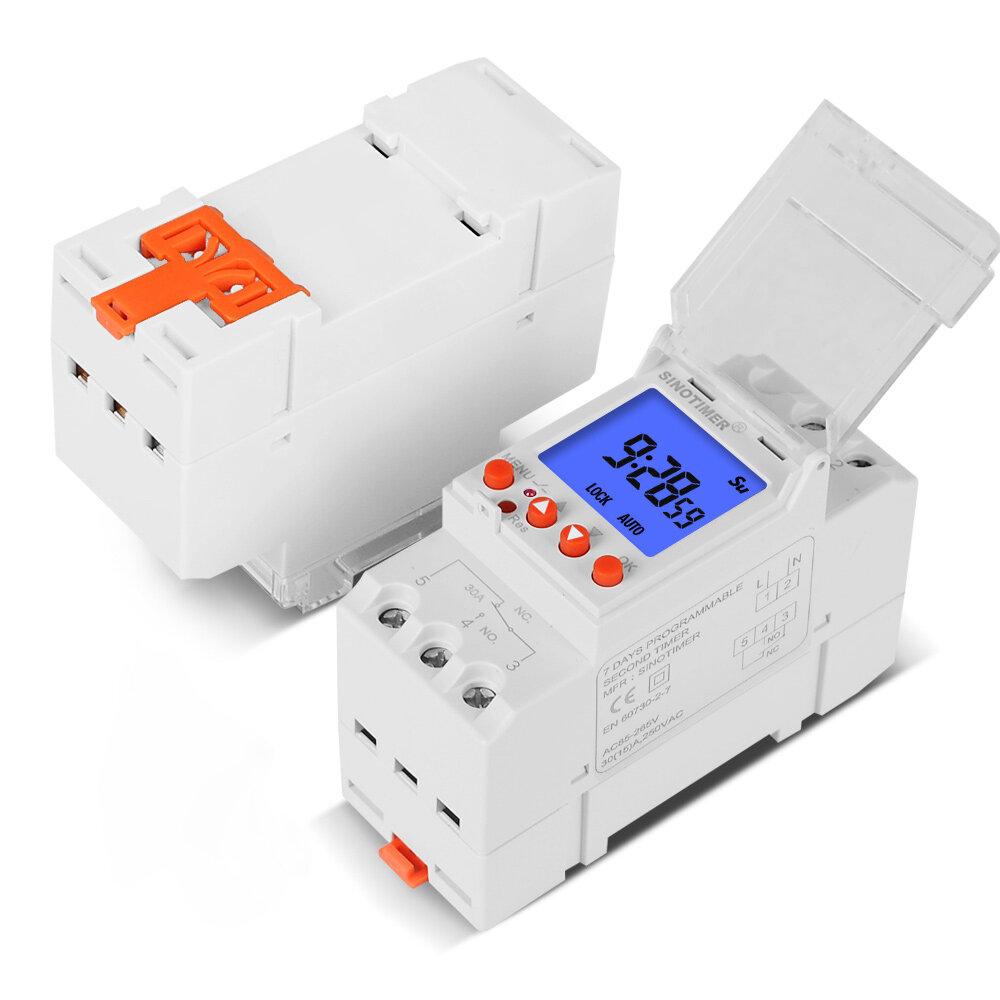

- Model number: TM928SAKL/TM928SBKL
- Power supply specifications: Ranges from 85~265V at 50/60Hz
- Significant Load capacity: Up to 16A/30A
- Programs: Offers 16 on/off intervals
- Setting range: Incredible flexibility, from 1 second to 168 hours
- Setting intervals: As short as 1 second
- Display: User-friendly and elegant LCD backlight
- Dimensions: Compact size of 866536mm
- Installation: Suited to a 35mm DIN Rail
What’s inside the package:
- 1 Timer Switch
- 1 Easy-to-understand Manual
Before you start using, here are some important details to note:
- TM928SAKL 16A comes with a replaceable battery (CR2032).
- TM928SBKL 30A comes with an inbuilt battery that can’t be replaced.
- The wiring diagram varies between the two models.
