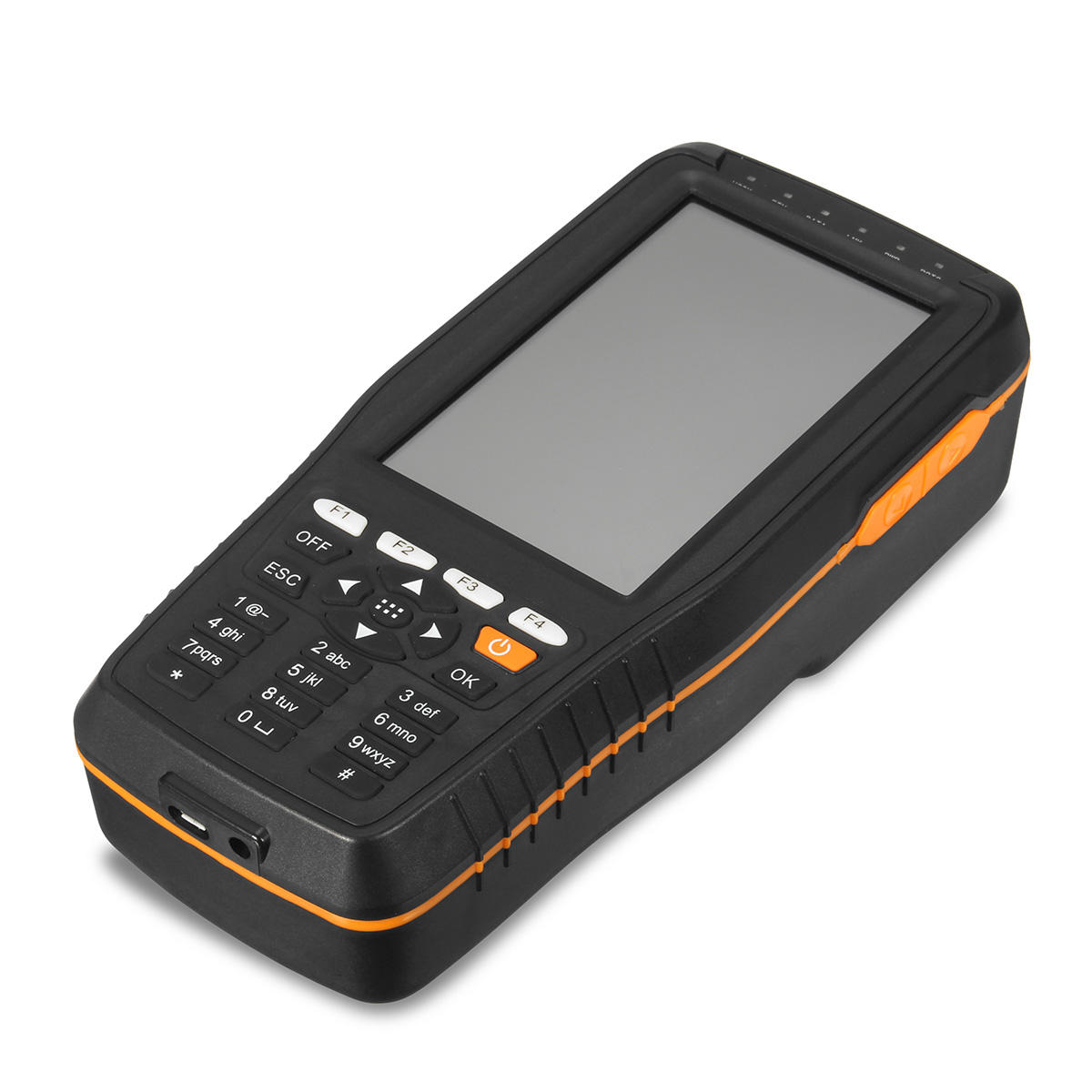

Introducing the spectacular TM-600 VDSL tester, an innovative device explicitly designed for comprehensive xDSL line testing and maintenance. Capable of testing a variety of xDSL lines, including ADSL, ADSL2, ADSL2+, READSL, VDSL2, and many more, it is a versatile piece of tech you must own.
What sets it apart from conventional testers is its multifunctive performance compactly packed in a sleek size, complemented by a vivid true color LCD and potent management software. Not to forget, the 6600mah rechargeable battery that assures uninterrupted operation.
※Bear in mind, this is the foundation version and does not include the TDR/OPM/VFL/ Tone Tracker functionality.
Features that Make it Stand Out:
Keen on testing options, you can experiment with ADSL; ADSL2; ADSL2+; READSL; VDSL2 objects.
Enjoy fast Copper tests with DMM, along with ACV, DCV, Loop and Insulation Resistance, Capacitance, and Distance.
The tester supports Modem emulation, facilitating a simulated login to the Internet.
For an authentic experience, the unit offers ISP login (username / password) and allows IP Ping test (WAN PING Test, LAN PING Test).
It is compatible with all multi-protocol, including PPPoE and enables to connect to CO via alligator clip or RJ11.
A nifty inbuilt data memory function and beeping and LED alarm indications for lower power, PPP, LAN, xDSL are available.
The powerful Rechargeable Li-ion Battery aids in sustained usage.
Advanced features include LCD display, Menu operation, Auto shut off if there’s no operation on the keyboard, and compatibility with all known DSLAMs.
User-friendly software management, and it’s portable, simple, and cost-friendly.
Step Up to Prime Functions:
Experience the DSL Physical layer test, modem emulation for replacing the user Modem completely.
Take advantage of the PPPoE Dialing (RFC1683, RFC2684, RFC2516), Telephone Function, and DMM Test.
Use the exceptional Ping Function (WAN & LAN), data upload to a computer, and experience seamless software management.
Tweak system parameters like backlight time, auto shut-off time without operation, press tone.
For personalization, revise PPPoE / PPPoA dial attribute, username, and password; restore to factory settings and lots more.
Watch out for dangerous voltage with this tester.
Specifications That Matter:
Name: VDSL VDSL2 tester
Power Supply: A powerful internal rechargeable 7200mAH Li-ion battery for long-lasting support.
Battery Duration: Can function for 4 to 5 hours.
Working temperature: 10-40°C
Working moisture: 5%-90%
Size: Compact and handy measuring just 170mm × 70mm × 52mm
Package Includes:
1 x TM-600 VDSL VDSL2 Tester &
A full set of accessories as depicted in the accompanying pictures.
