Revolutionize your measurements with our latest design Multimeter, creatively structured for single-handed operation. This incredible gadget hosts a pen holder pocket and a detachable probe for maximum flexibility. It encapsulates a dizzying array of functions in a compact form.
Boasting the ability to measure voltage, current, resistance, diode, capacitance, temperature, frequency, and perform on-off tests, it brings you unprecedented convenience. Additionally, it offers fire line detection, automatic range, non-contact tests, data retention, and delivers true RMS.
With 6000 COUNTS anti-burn Multimeter functionality, you can confidently make measurements without fear of burns. Wondering about resistance? It can precisely measure resistance within the exhilarating range of 0-20Mohm!
Specifications:
Display count: 6000 counts
DC voltage: 6V/60V/600V/1000V
AC voltage: 6V/60V/600V/750V
DC current: 60mA/200mA
AC current: 60mA/200mA
Resistance: 200ohm/2kohm/20kohm/200kohm/2Mohm/20Mohm
Capacitance: 6nF/60nF/600nF/6uF/60uF/600uF/6000uF
Frequency: 10Hz/60Hz
Temperature measurement: -20C~1000C/-4F~1832F
On and off beep, Diode measurement: range 0-3.3V, resolution: 0.001V
True RMS: 40Hz~1kHz Frequency Range
Data retention: Available
LCD backlight: Available
Automatic shut-down: 15-minute idle auto shutdown
Non-contact voltage detection: Press V-Alert in any gear to activate this function
Fire line identification: single-table pen contact measurement for fire line detection
Automatic protection: 600V DC/AC overload protection
Negative pressure prompt: Alerts below 2.4V
Security level: CAT II 600V, CAT II 1000V
Package includes a DM92A multimeter, a 10A original test pen, a multimeter bag for safe storage, a temperature probe, an understandable English manual, and a presentable packaging box.

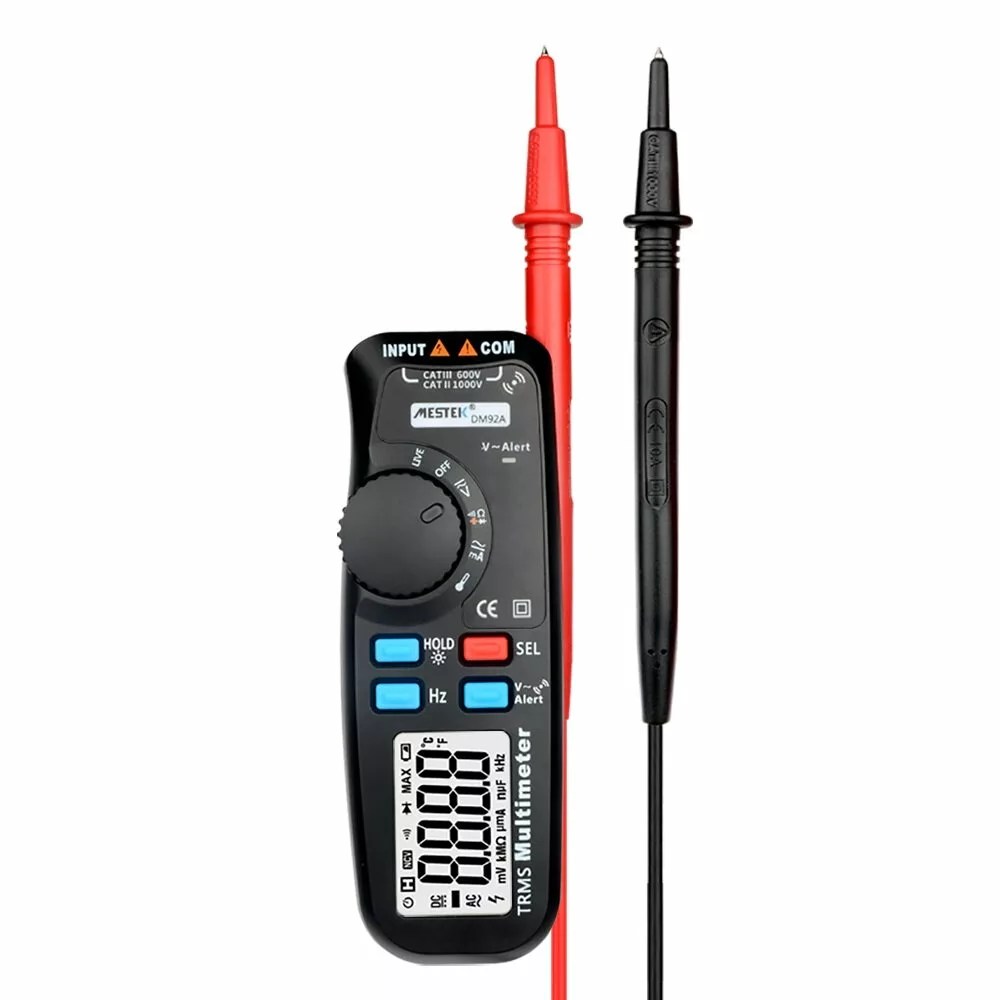

For a better understanding of the marvel that’s the DM92A Multimeter, browse these detailed images:
