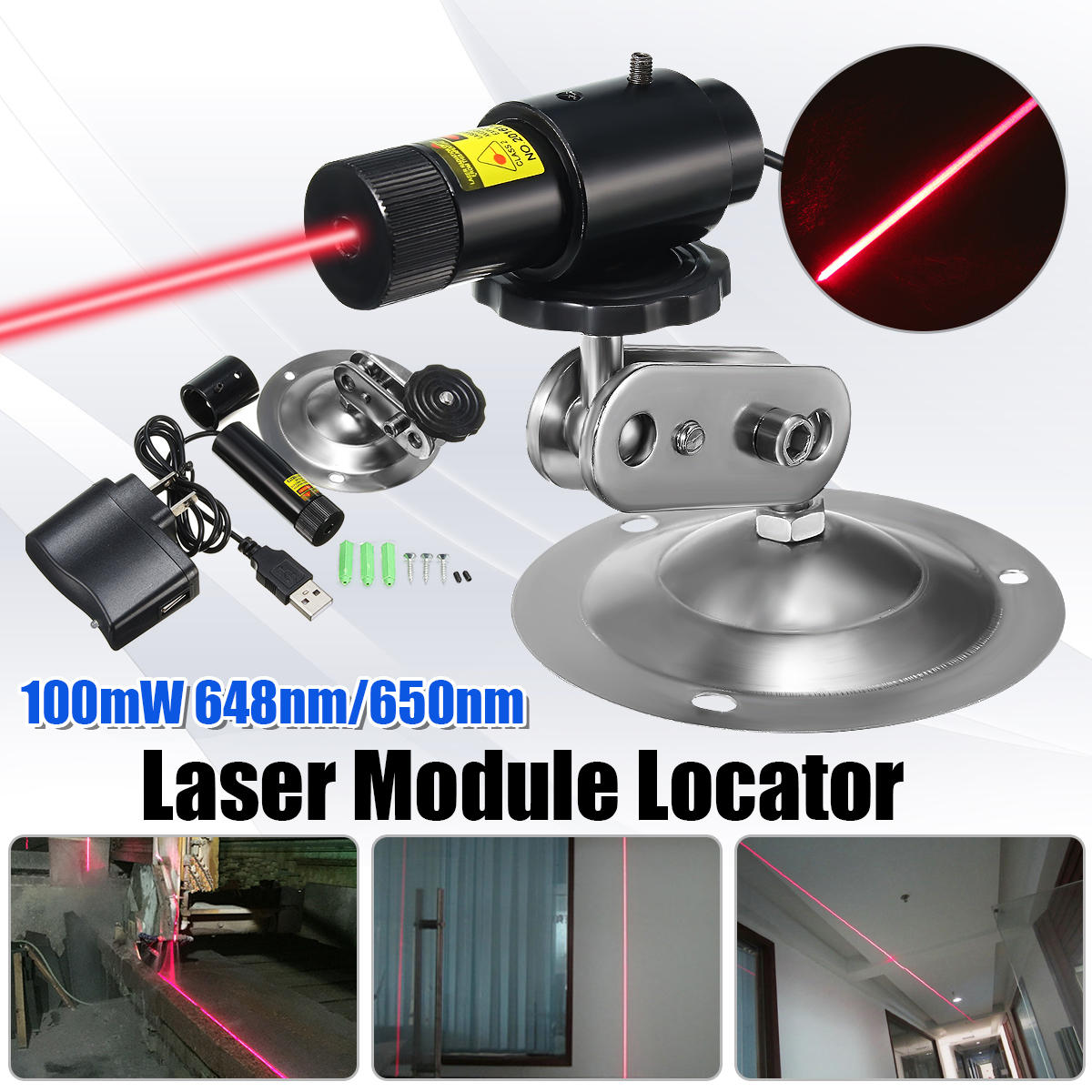

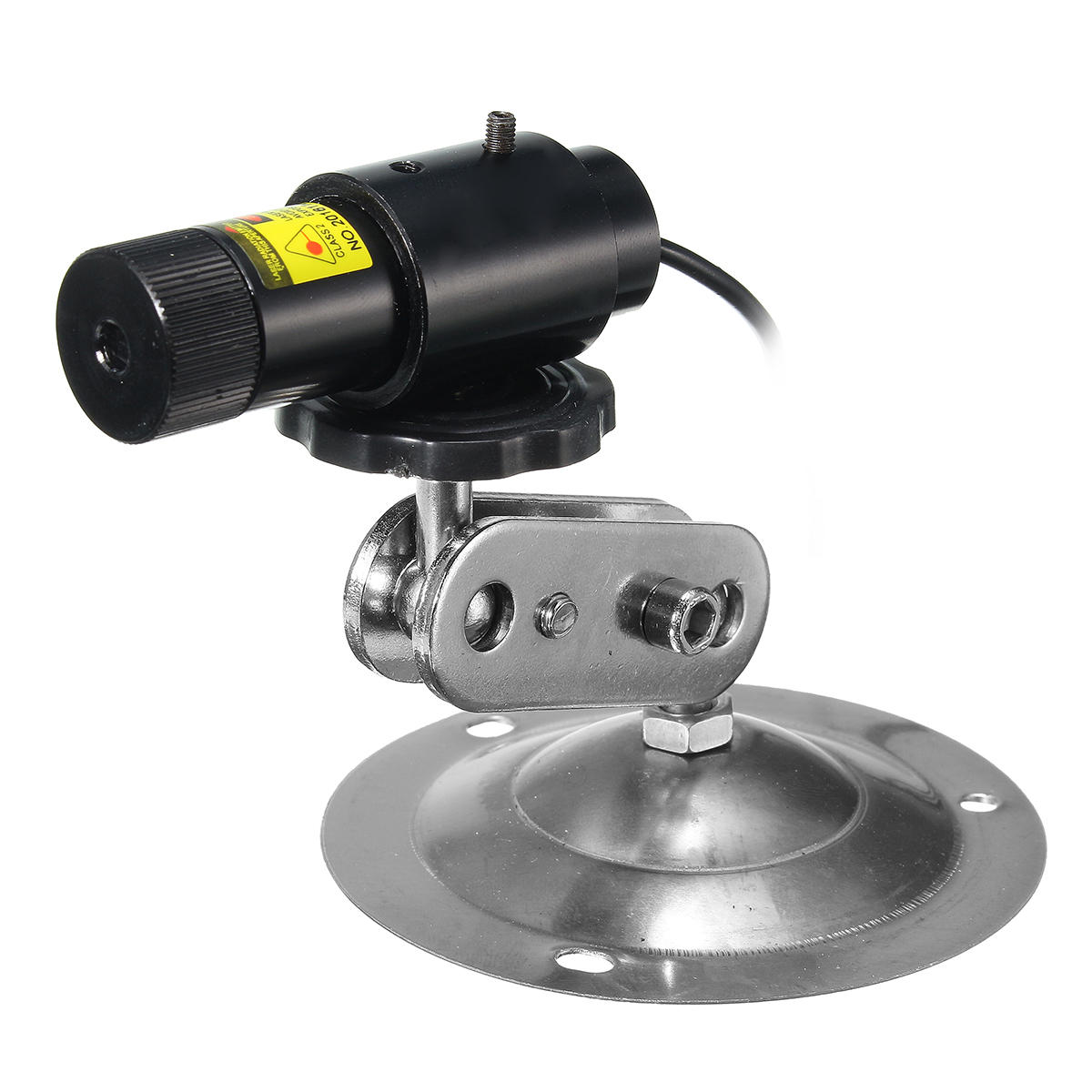

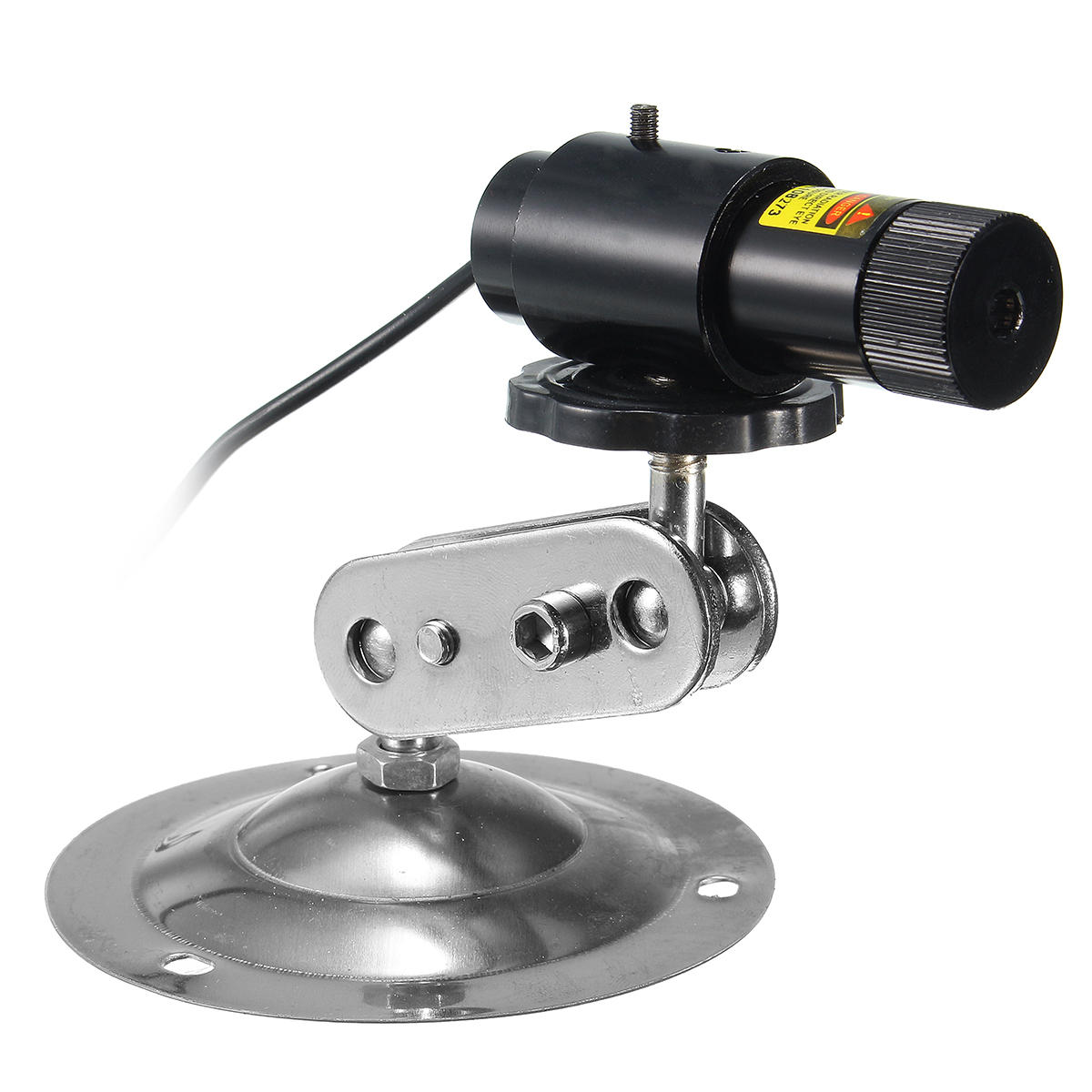

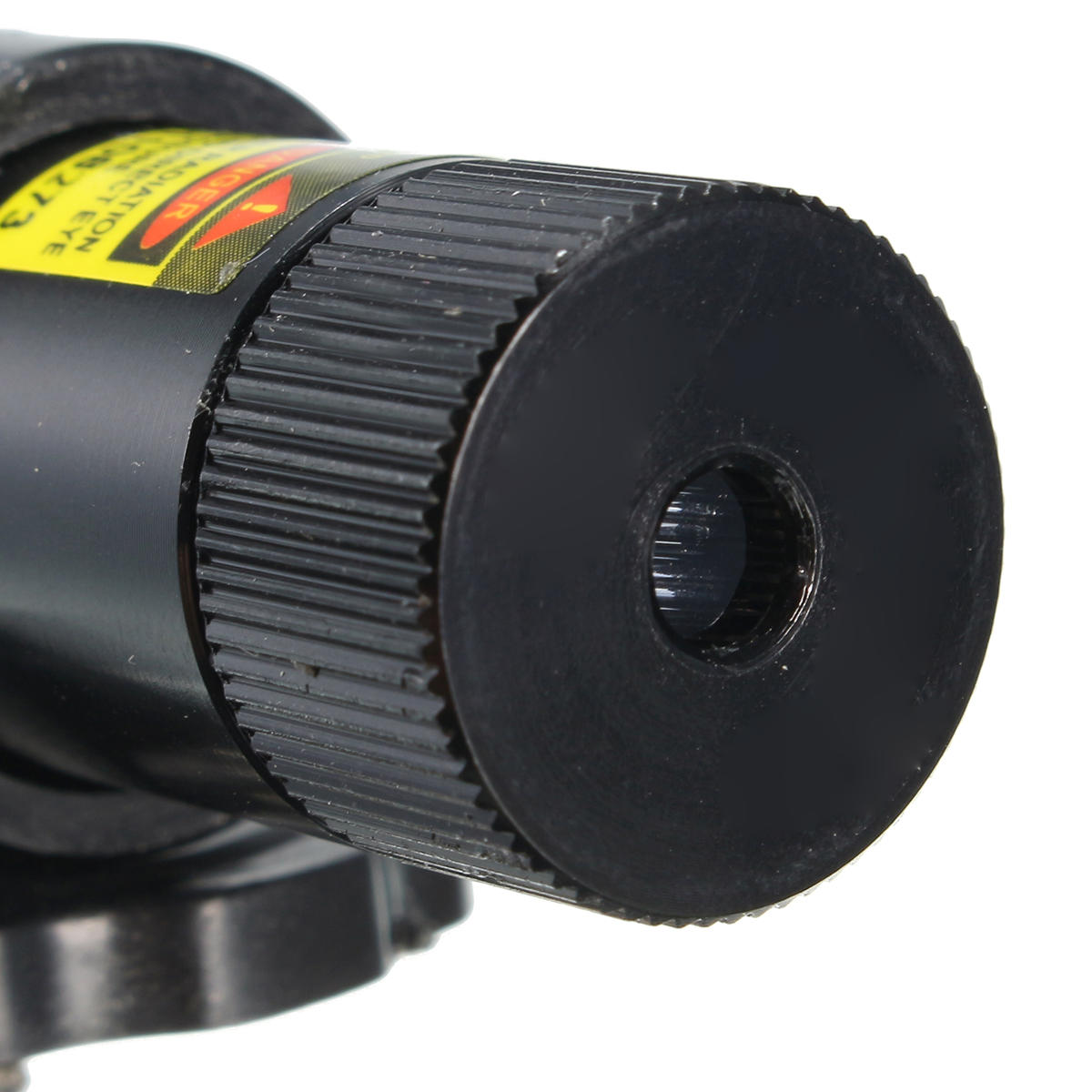

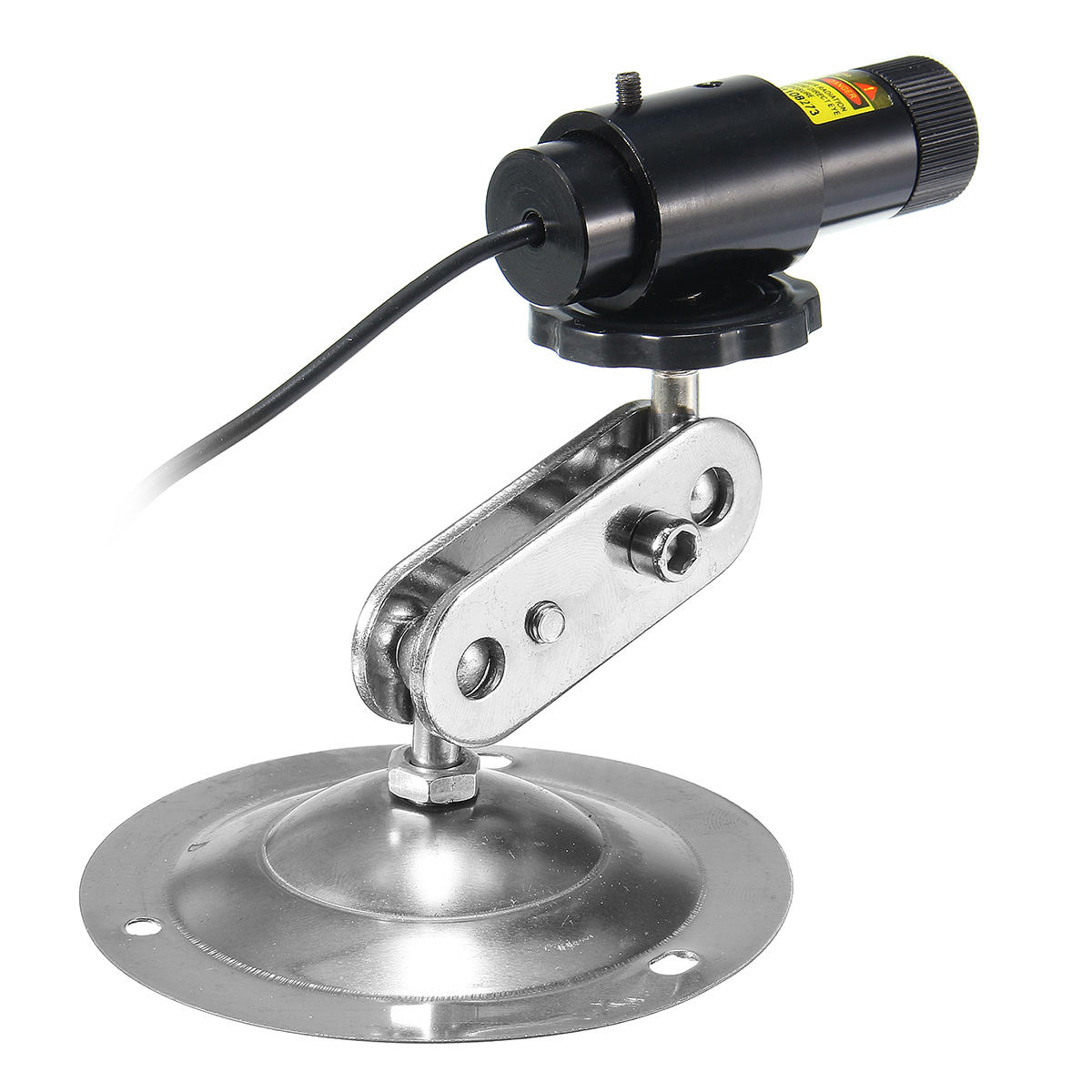

Feature: Experience high stability with this device that can operate for extended periods without faltering. This product is a focusable 648nm 650nm 100mW Red Laser Line Module. It emits a high-brightness line that is visible both indoors and outdoors. The shell is made of aviation aluminum coated with insulating paint, ensuring full heat resistance, shock resistance, and anti-static properties. The red line produced by the die and lens is fine and uniform, with high collimation and stability. This device is perfect for stone cutting, diamond positioning, operating stone bridge cutting machines, marble cutting, and more.

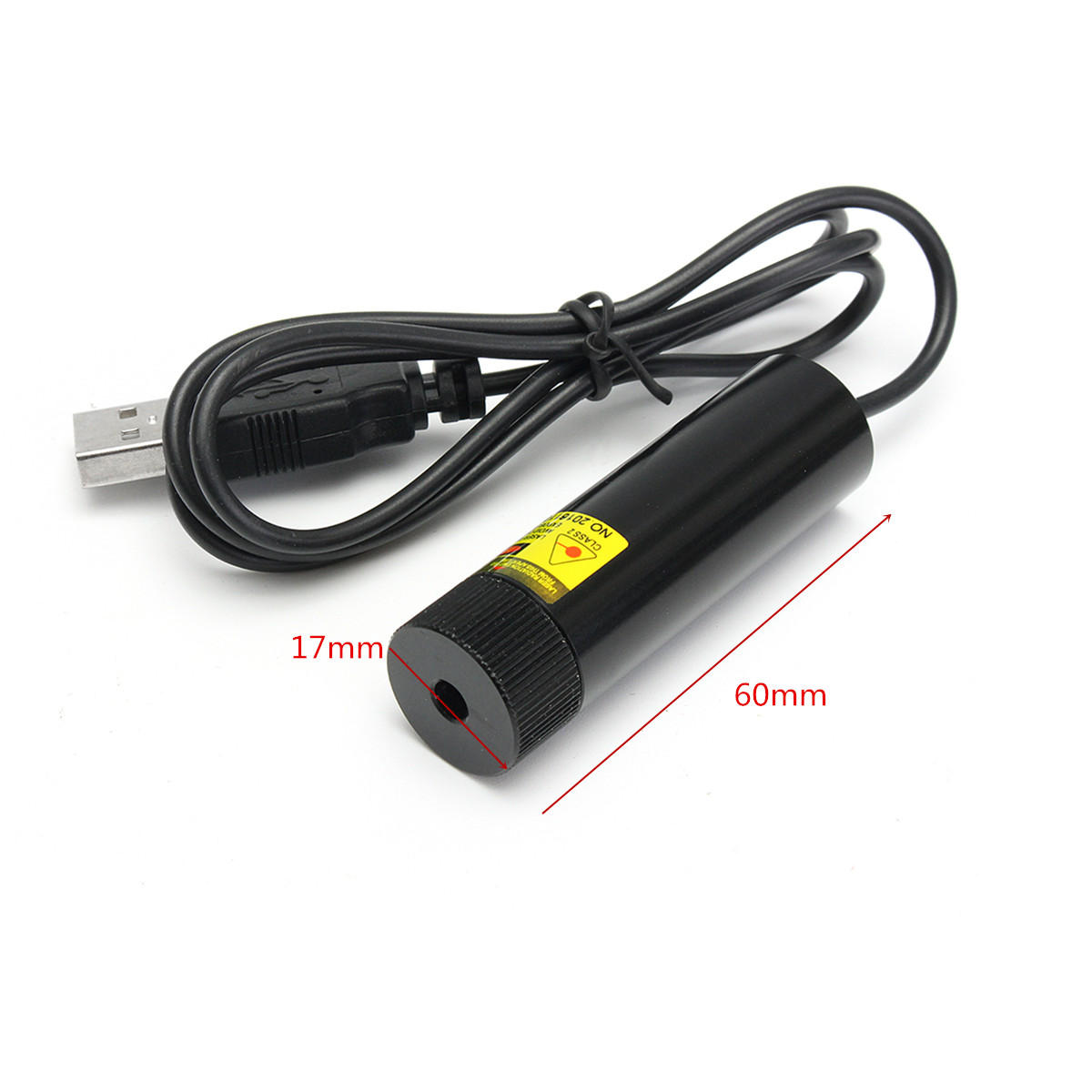

Specifications: The device comes in a sleek black color. Its compact size of approximately 60x17mm/2.36″x0.66″ makes it easy to handle. The wavelength is 648nm/650nm with an output of 100mW. The divergence is 0.1-2mrad, and it operates on a working voltage of DC 3.6V-5.5v. The line diameter is a minimum of 0.5mm at 1 meter. The duty cycle is 2 hours on, 5 minutes off. It can work in temperatures ranging from 10℃~35℃ and can be stored in temperatures from -40℃~80℃. The device weighs 182g.

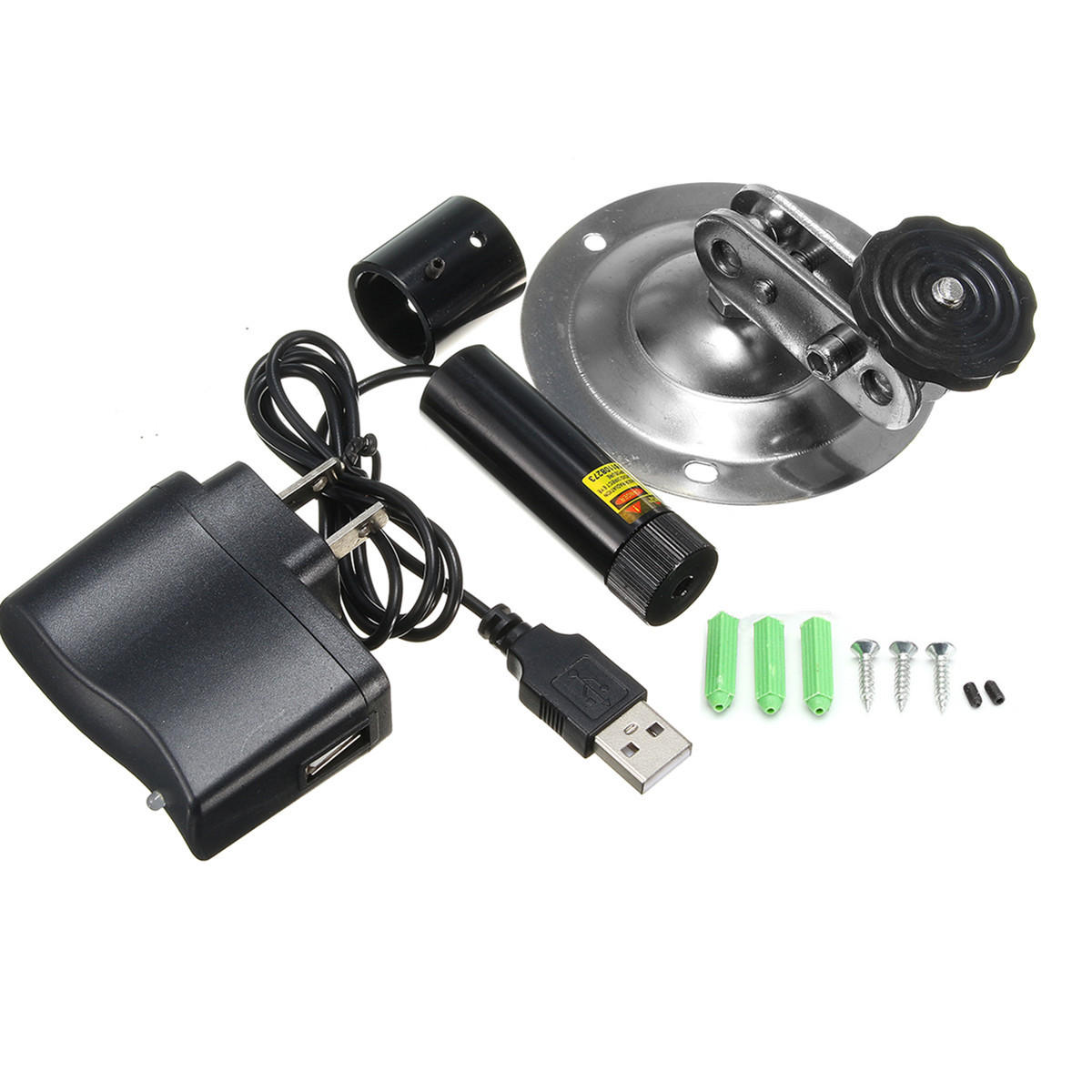

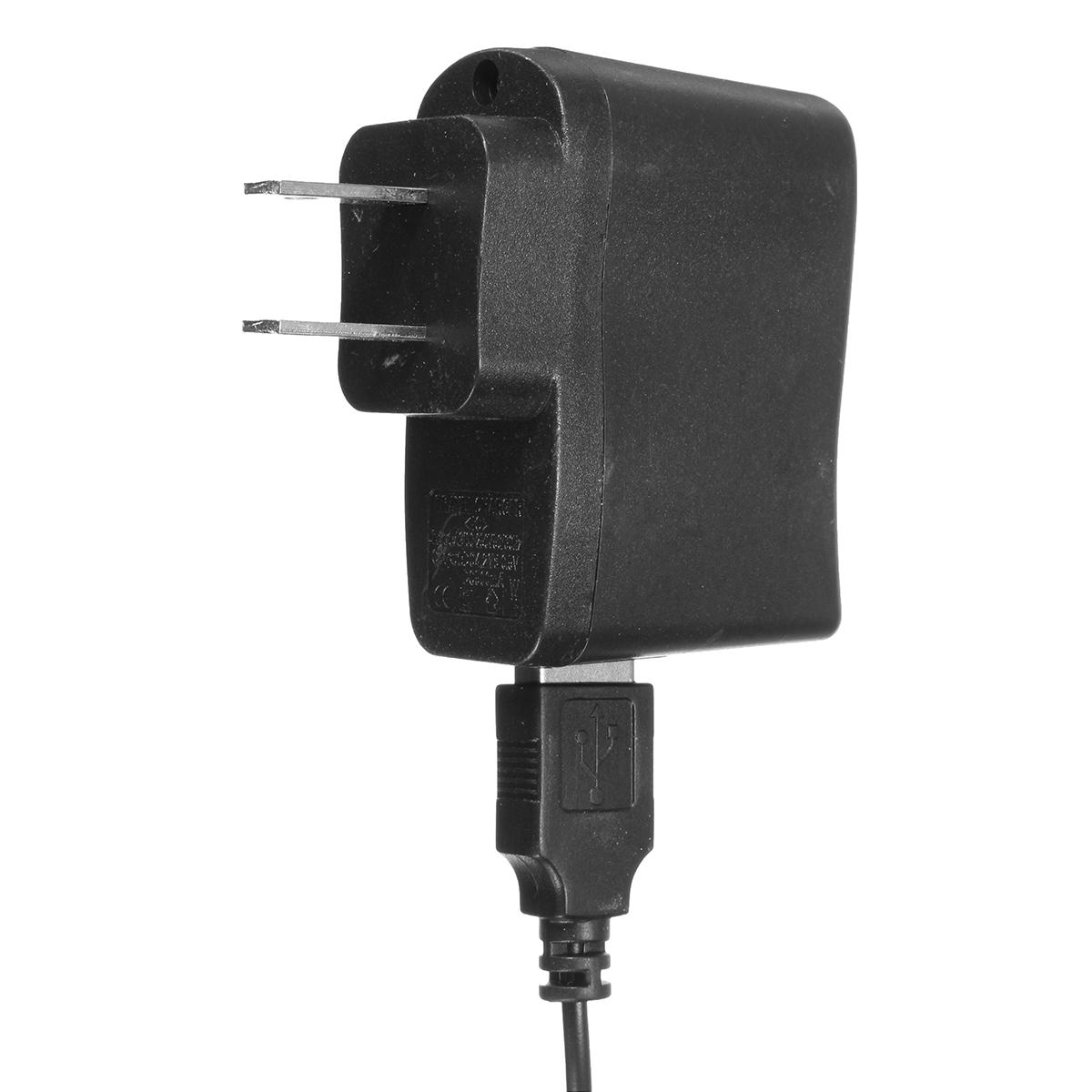

Package Included: The package includes 1x Adjustable focus Red laser cutting machine LINE module locator, 1x bracket, 1x US plug adapter, and 1x mount.
More details: Please refer to the images below for a closer look at the product.
