Product Name: Mastech MS6812 Multi Function Cable Tracker Sender Receiver Repair Identify Wire

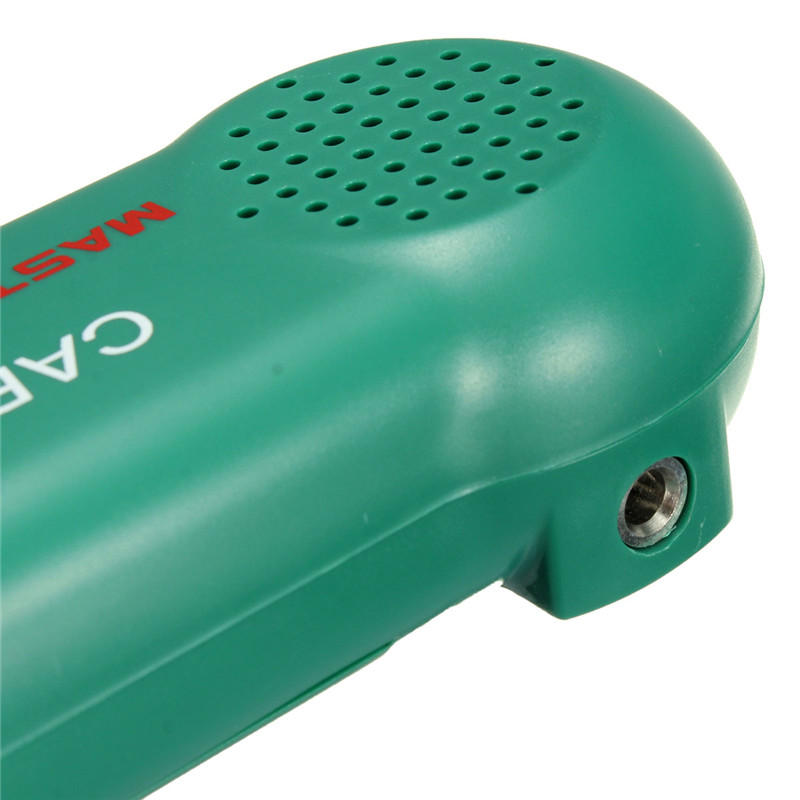

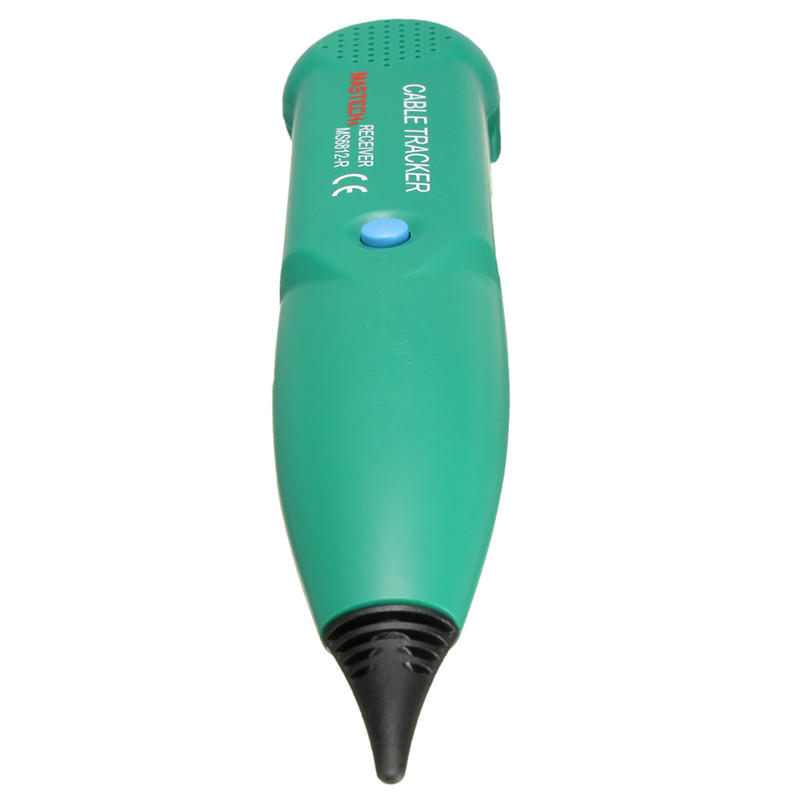

Description: The Cable Tracker is a specialized tool engineered to identify and trace wires or cables within a group, all without causing any damage to the insulation. It’s particularly useful for telephone lines, as it can identify various states in the line, making it easier to install, debug, and maintain the telephone line. The Cable Tracker package includes a Sender (MS6812-T) and a Receiver (MS6812-R).

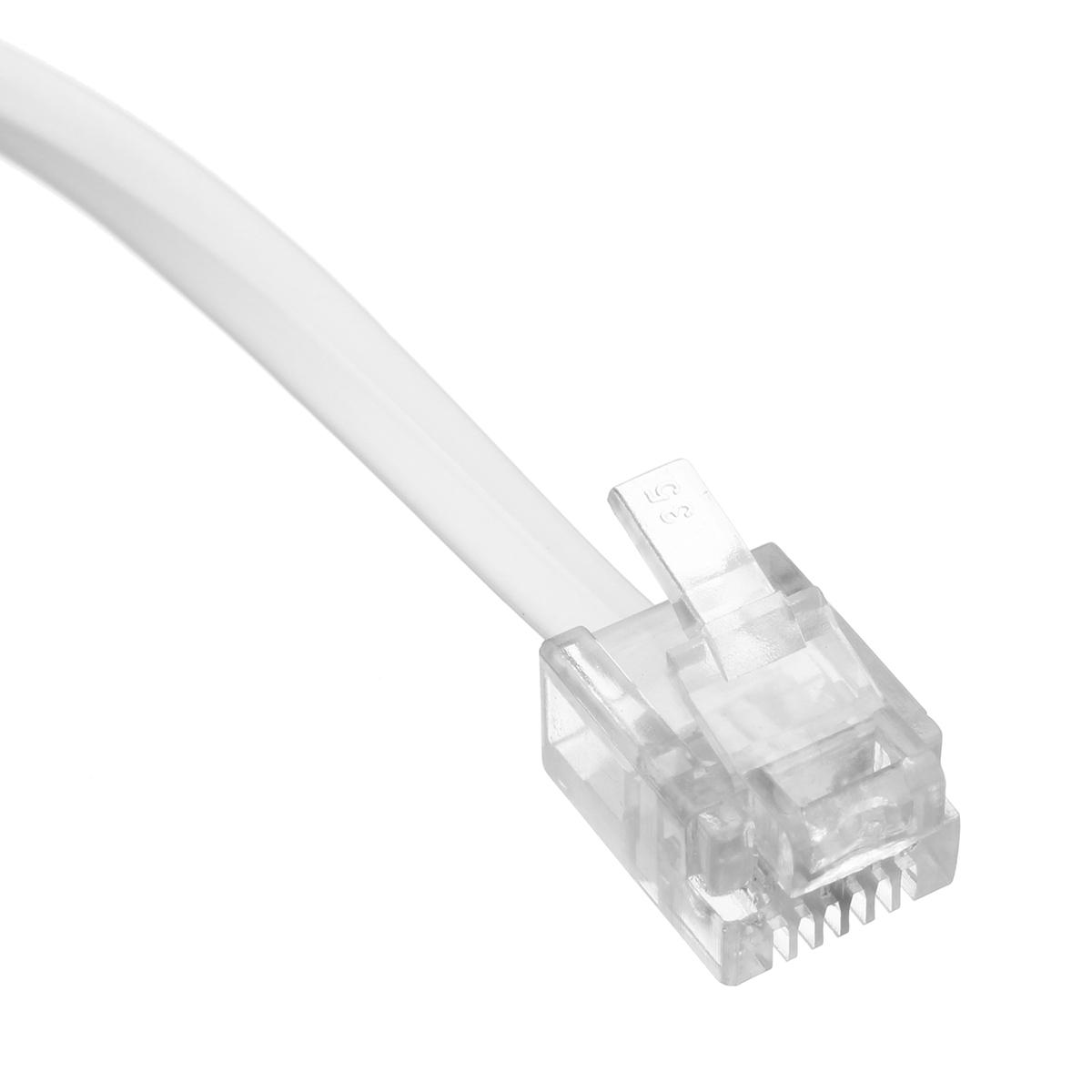

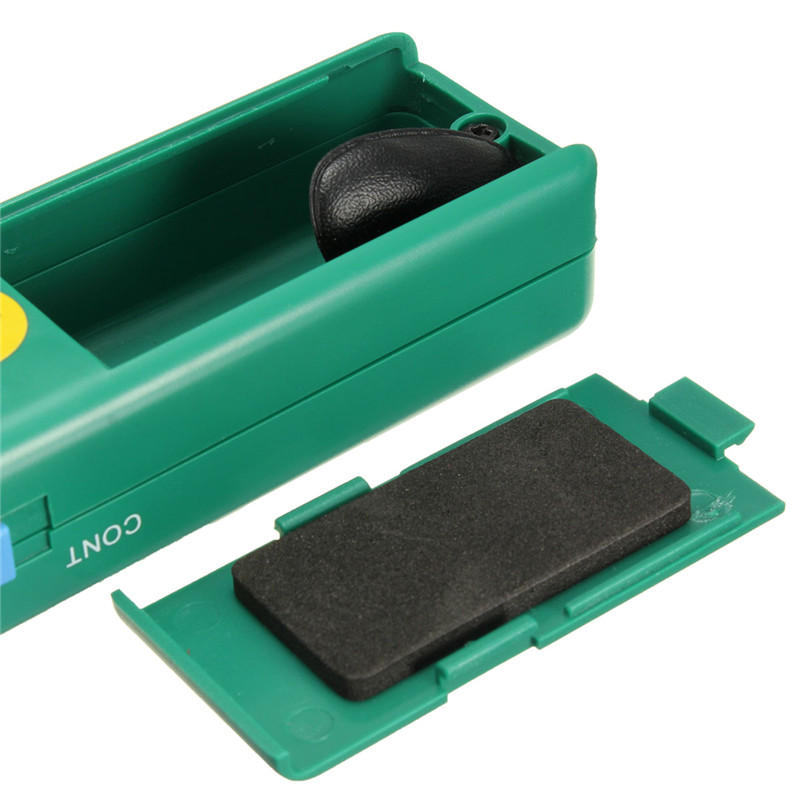

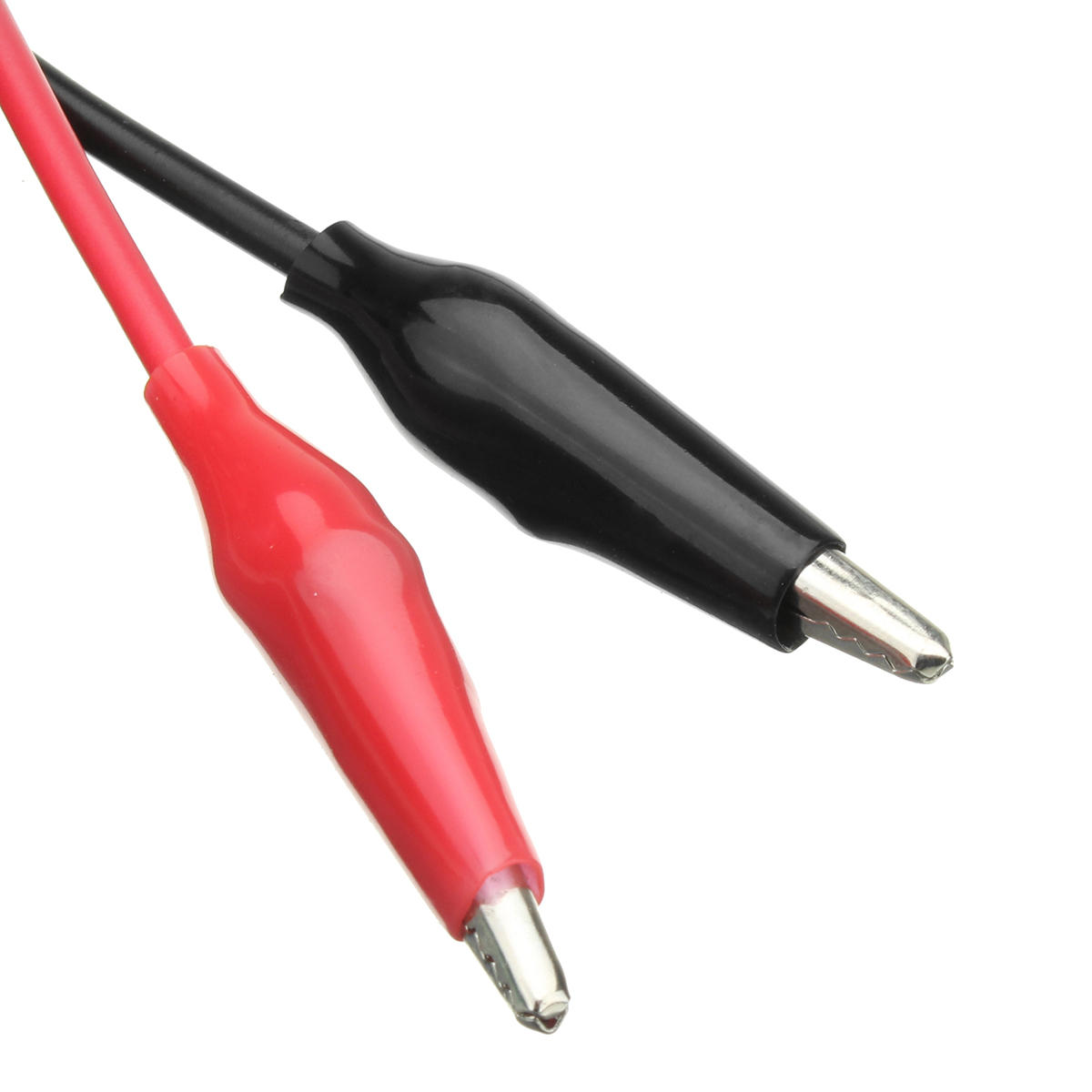

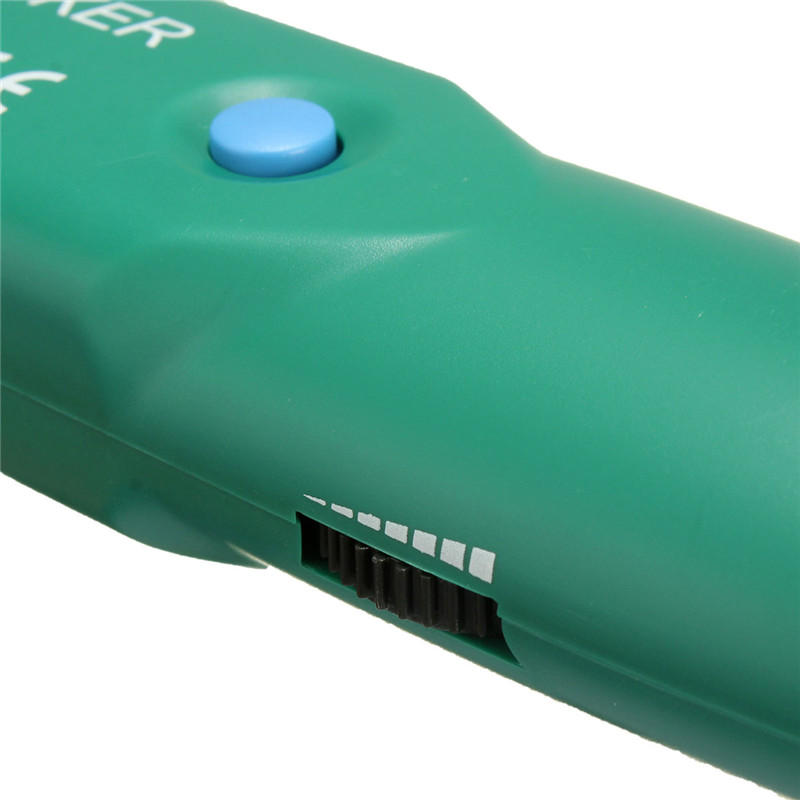

Specifications: The main color of the Cable Tracker is green. The Sender measures approximately 14.3cm (L) X 3.2m (W) X 2.3cm (H), while the Receiver measures about 23.8cm (L) X 3.5cm (W) X 2.3cm (H). The package size is about 25.5cm (L) X 12.5cm (W) X 4cm (H). The black/red wire length is about 78cm, and the white wire length is about 54cm. The Tone Generator Output (Square Waveform) is either Single (1500Hz) or Dual (1300~1500Hz). The power supply is 2X9V 6F22 Battery. The send tone frequency is 1.5kHz, and the receive frequency range is 100 ~ 300 kHz. The product is CE approved.
Functions: The Cable Tracker can judge the continuity of the cables or wires, track the cables or wires and diagnose the break point, receive the tone signal on the cables or wires (telephone line), identify the state in the working telephone line (clear, ring, busy), and send a single solid tone or a dual alternating tone to the object cables or wires. Please note that the line to be tested must not be electric, or the signal interference will affect the detection results.
Applications: The Cable Tracker is ideal for judging the continuity of the cables or wires, tracking the cables or wires and diagnosing the break point, receiving the tone signal on the cables or wires (telephone line), identifying the state in the working telephone line (clear, ringing, busy), and for cable repairs.

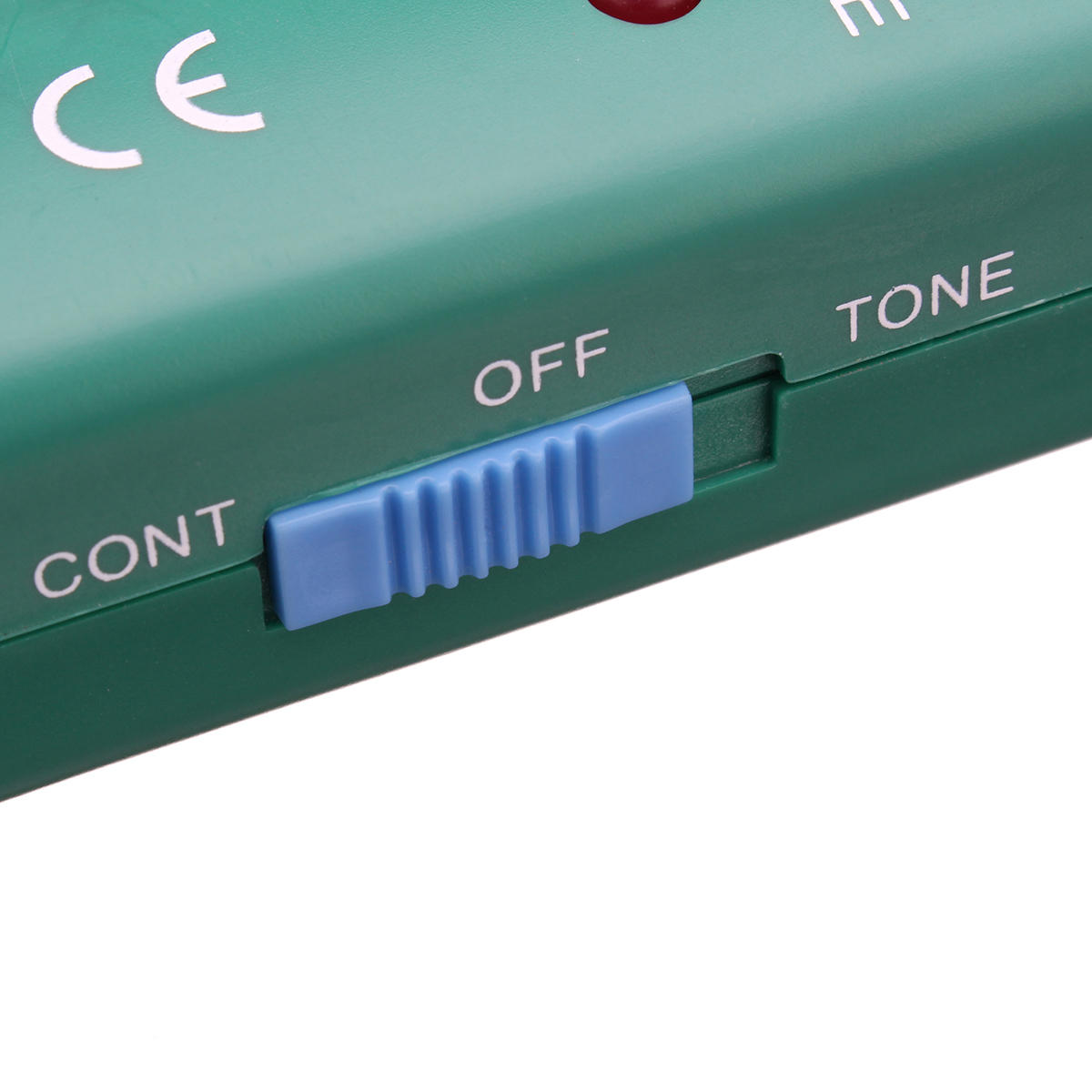

Tips: When not in use, remove the Sender from the test circuitry and switch to “OFF”. Keep the device away from moisture and do not use the tester under high voltage environments. Always follow the user’s manual to prevent damage to the tester or personal injury.

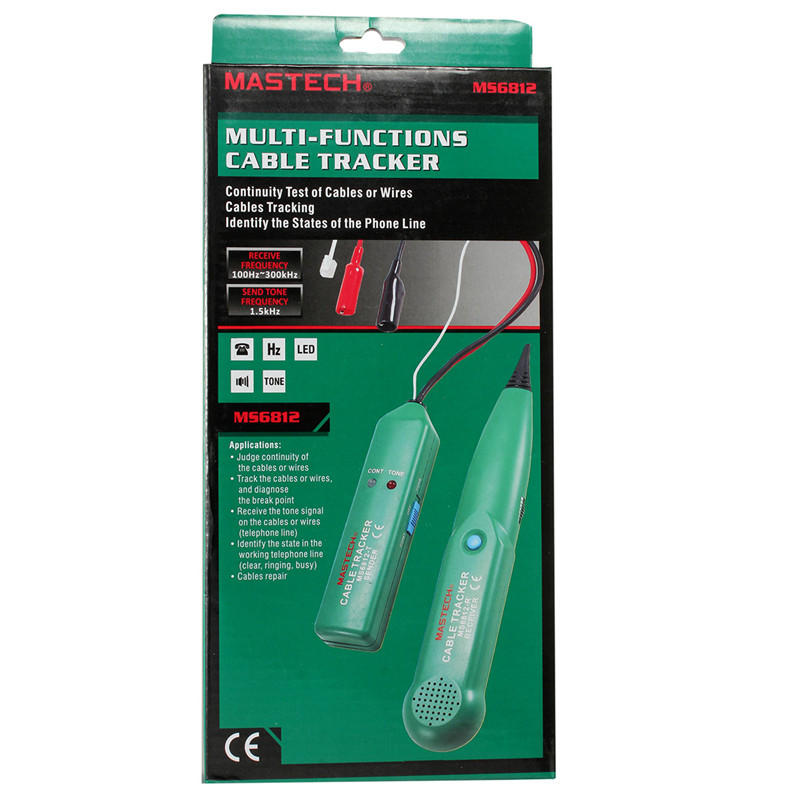

Package includes: The package comes with 1 Receiver, 1 Sender, 1 Cloth bag, 2 9V batteries, and 1 User manual.
